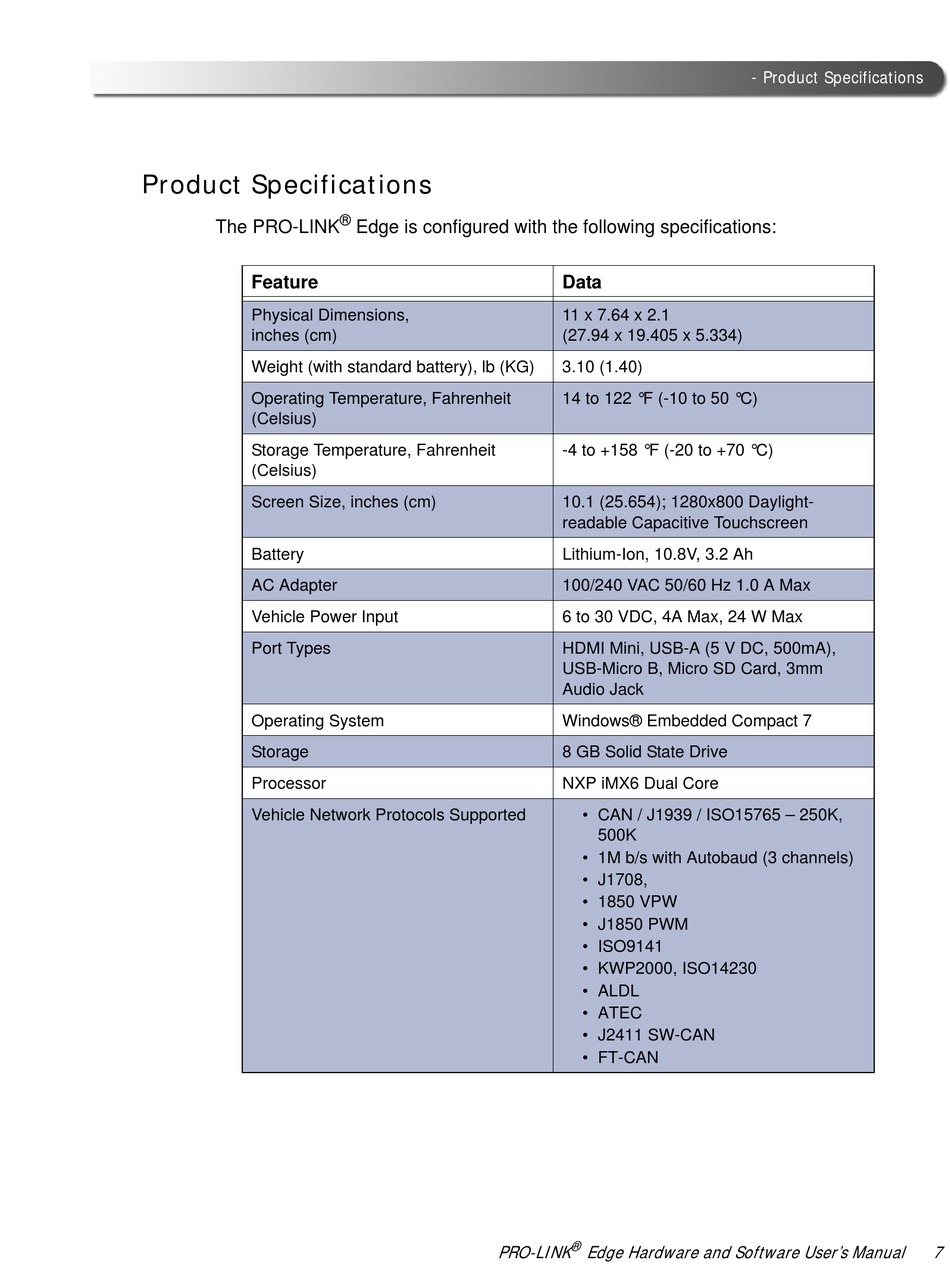

Product Specifications

The PRO-LINK
Feature
Physical Dimensions, 
inches (cm)
Weight (with standard battery), lb (KG)
Operating Temperature, Fahrenheit
(Celsius)
Storage Temperature, Fahrenheit
(Celsius)
Screen Size, inches (cm)
Battery
AC Adapter
Vehicle Power Input
Port Types
Operating System
Storage
Processor
Vehicle Network Protocols Supported
®
Edge is configured with the following specifications:
PRO-LINK
Data
11 x 7.64 x 2.1 
(27.94 x 19.405 x 5.334)
3.10 (1.40)
14 to 122 °F (-10 to 50 °C)
-4 to +158 °F (-20 to +70 °C)
10.1 (25.654); 1280x800 Daylight-
readable Capacitive Touchscreen
Lithium-Ion, 10.8V, 3.2 Ah
100/240 VAC 50/60 Hz 1.0 A Max
6 to 30 VDC, 4A Max, 24 W Max
HDMI Mini, USB-A (5 V DC, 500mA),
USB-Micro B, Micro SD Card, 3mm
Audio Jack
Windows® Embedded Compact 7
8 GB Solid State Drive
NXP iMX6 Dual Core
• CAN / J1939 / ISO15765 – 250K,
500K
• 1M b/s with Autobaud (3 channels)
• J1708,
• 1850 VPW
• J1850 PWM
• ISO9141
• KWP2000, ISO14230
• ALDL
• ATEC
• J2411 SW-CAN
• FT-CAN
®
