Monitoring Battery Power

The PRO-LINK
• Its own internal battery pack
• The vehicle (when in a connected state)
• AC/DC power adapter (when plugged into a power source)
Battery
Icon
Figure 2.5
The Battery icon has two states:
When the device is either connected to a vehicle or plugged into a
power a power source via the AC/DC power adapter.
When the device is fully charged and obtaining power from the battery
pack.
Use the icon to monitor remaining battery power (as power diminishes the slider
moves to the left.
®
Edge obtains power from any of the following source:

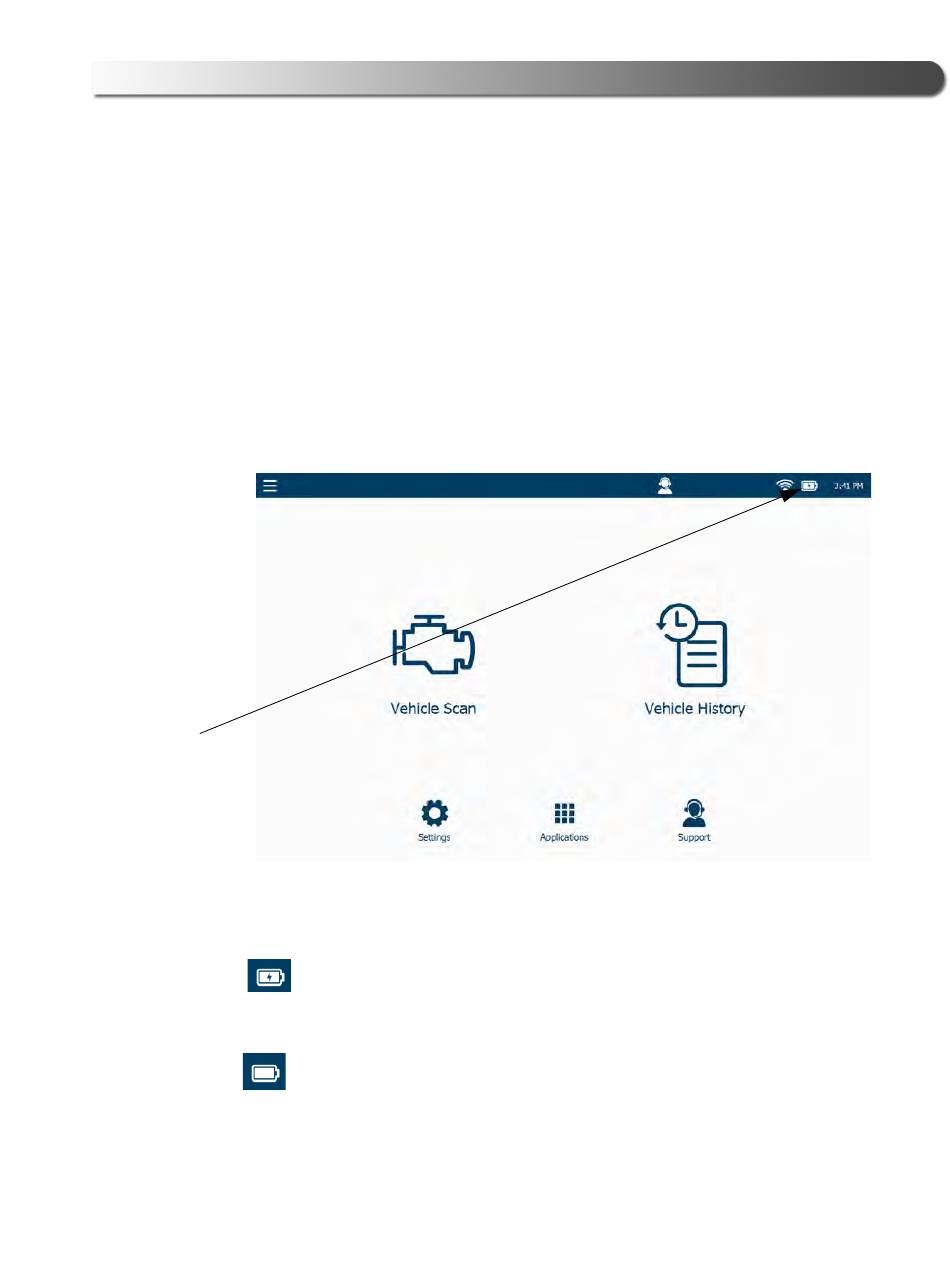

Main Menu Showing the Battery Icon
PRO-LINK
®
Edge Hardware and Software User's Manual
