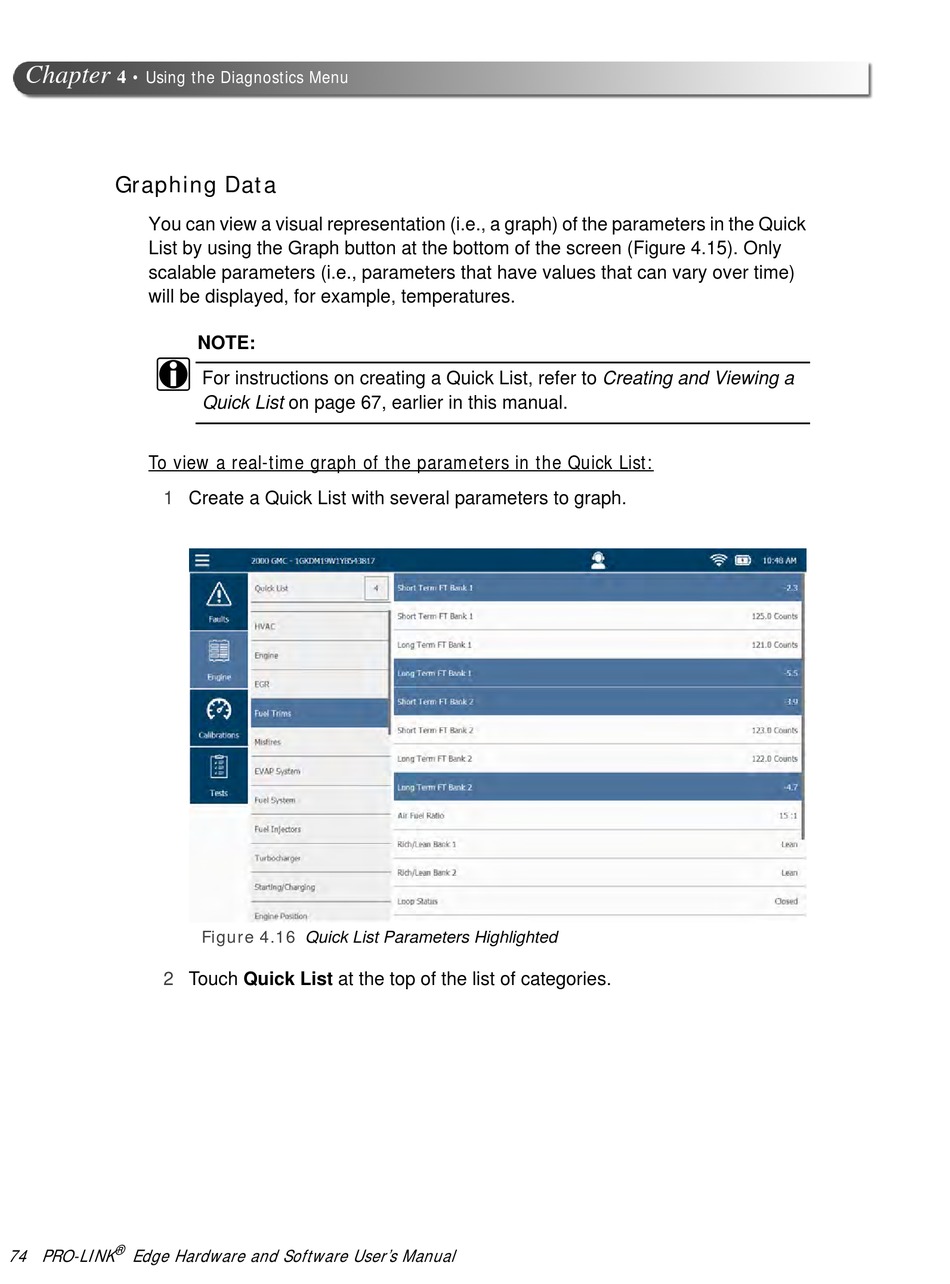

Graphing Data

You can view a visual representation (i.e., a graph) of the parameters in the Quick
List by using the Graph button at the bottom of the screen (Figure 4.15). Only
scalable parameters (i.e., parameters that have values that can vary over time)
will be displayed, for example, temperatures.
i
To view a real-time graph of the parameters in the Quick List:
1
2
®
74 PRO-LINK Edge Hardware and Software User's Manual
NOTE:
For instructions on creating a Quick List, refer to Creating and Viewing a
Quick List on page 67, earlier in this manual.
Create a Quick List with several parameters to graph.
Figure 4.16
Quick List Parameters Highlighted
Touch Quick List at the top of the list of categories.
