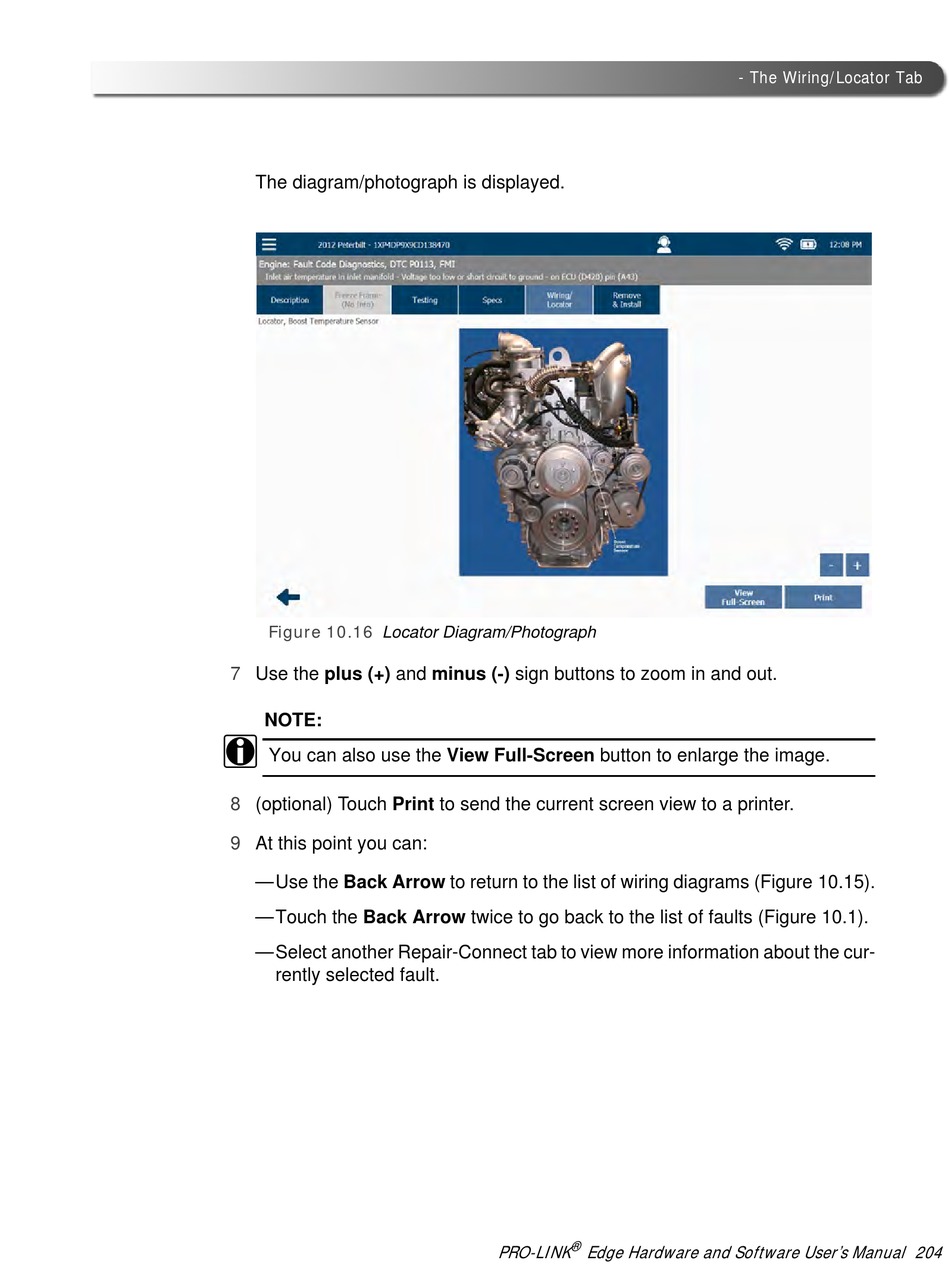

The diagram/photograph is displayed.
Figure 10.16
Locator Diagram/Photograph
7
Use the plus (+) and minus (-) sign buttons to zoom in and out.
NOTE:
i
You can also use the View Full-Screen button to enlarge the image.
8
(optional) Touch Print to send the current screen view to a printer.
9
At this point you can:
—Use the Back Arrow to return to the list of wiring diagrams (Figure 10.15).
—Touch the Back Arrow twice to go back to the list of faults (Figure 10.1).
—Select another Repair-Connect tab to view more information about the cur-
rently selected fault.
®
PRO-LINK Edge Hardware and Software User's Manual 204
- The Wiring/Locator Tab
