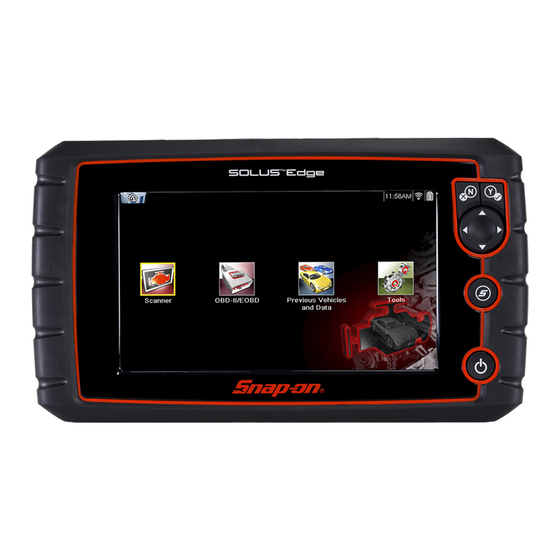

Snap-On SOLUS Edge Quick Start Manual

Snap-On SOLUS Edge Quick Start Manual

Scan tool

Advertisement

Legal Information
Trademarks
Snap-on, ShopStream Connect, SureTrack, and SOLUS Edge are trademarks
registered in the United States and other countries of Snap-on Incorporated. All
other marks are trademarks or registered trademarks of their respective
holders.
Copyright Information
© 2014 Snap-on Incorporated. All rights reserved.
Disclaimer of Warranties and Limitation of Liabilities
The information, specifications and illustrations in this manual are based on the
latest information available at the time of printing. While the authors have taken
due care in the preparation of this manual, nothing contained herein:
Modifies or alters in any way the standard terms and conditions of the
purchase, lease, or rental agreement under the terms of which the
equipment to which this manual relates was acquired.
Increases in any way the liability to the customer or to third parties.
Snap-on reserves the right to make changes at any time without notice.
Safety Information
IMPORTANT:
For your safety and the safety of others, before operating this diagnostic
tool, read, understand and follow all safety messages in the Important
Safety Instructions provided in your kit.
Contact Information (North America)
Websites
http://diagnostics.snapon.com
ShopStream Connect
http://diagnostics.snapon.com/ssc
User Manuals
http://diagnostics.snapon.com/usermanuals
Phone / E-mail - Technical Assistance
1-800-424-7226 / diagnostics_support@snapon.com
For technical assistance in all other markets, contact your selling agent.
ZEESC320A1 Rev. A 28-E-14 NA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SOLUS Edge and is the answer not in the manual?

Questions and answers

Summary of Contents for Snap-On SOLUS Edge

  • Page 1 Legal Information Trademarks Snap-on, ShopStream Connect, SureTrack, and SOLUS Edge are trademarks registered in the United States and other countries of Snap-on Incorporated. All other marks are trademarks or registered trademarks of their respective holders. Copyright Information © 2014 Snap-on Incorporated. All rights reserved.
  • Page 2 Getting Started Getting Started Feature Identification...
  • Page 3 Feature Identification Item Description Battery Status Indicator LED • Green - battery is fully charged • Red - battery is charging • Amber - indicates there is a battery issue (correct before operating) DC Power Supply Jack - AC/DC power supply connection Mini USB Jack - USB cable connection used to transfer saved data files to a personal computer Micro secure digital (uSD) Card - Contains operating system...
  • Page 4 Basic Navigation Battery Installation / Power Connection 1. Loosen the battery pack cover screws (located on back) and remove the battery pack cover. 2. Align the locating tabs and install the battery pack. 3. Install the battery cover and tighten the screws. DO NOT overtighten the battery cover screws.
  • Page 5 Common Toolbar Control Icons Common Toolbar Control Icons Name Icon Description Home Returns to the Home screen. Back Returns to the previous screen. Tools Opens the Tools menu. Writes data from buffer memory to a file. The saved “movie” file can be accessed for future reference by Save selecting Previous Vehicles and Data >...
  • Page 6 Basic Operation Basic Operation Scanner Starting Scanner opens a menu list of vehicle manufacturers and begins the process by identifying the vehicle being tested. After the vehicle is identified, a vehicle system is selected and then a specific test or function is selected to allow you to retrieve DTCs, view PID data, perform diagnostic tests and view SureTrack™...
  • Page 7 SureTrack™ SureTrack™ SureTrack is a comprehensive source of expert repair knowledge that will help you improve diagnostic accuracy and reduce repair time. SureTrack features: • A Common Replaced Parts graph • Tips and fixes obtained from actual repairs • Up-to-the-minute information from vehicles currently being serviced nationwide NOTE: NOTE:...
  • Page 8 OBD-II/EOBD OBD-II/EOBD OBD-II/EOBD OBD-II/EOBD allows you to access generic OBD-II/EOBD data and tests without identifying the vehicle being tested. Menu options are: • OBD Direct - initiate a test session, check DLC location, or manually select communication protocol • OBD-II Health Check - quickly view or clear generic DTCs and check readiness monitors Previous Vehicles and Data Previous Vehicles and Data allows you to save time by quickly...
