Snap-On PRO-LINK EDGE Hardware User Manual page 187

Chapter
• Using Record and Playback
9
i
3
®
186 PRO-LINK Edge Hardware and Software User's Manual

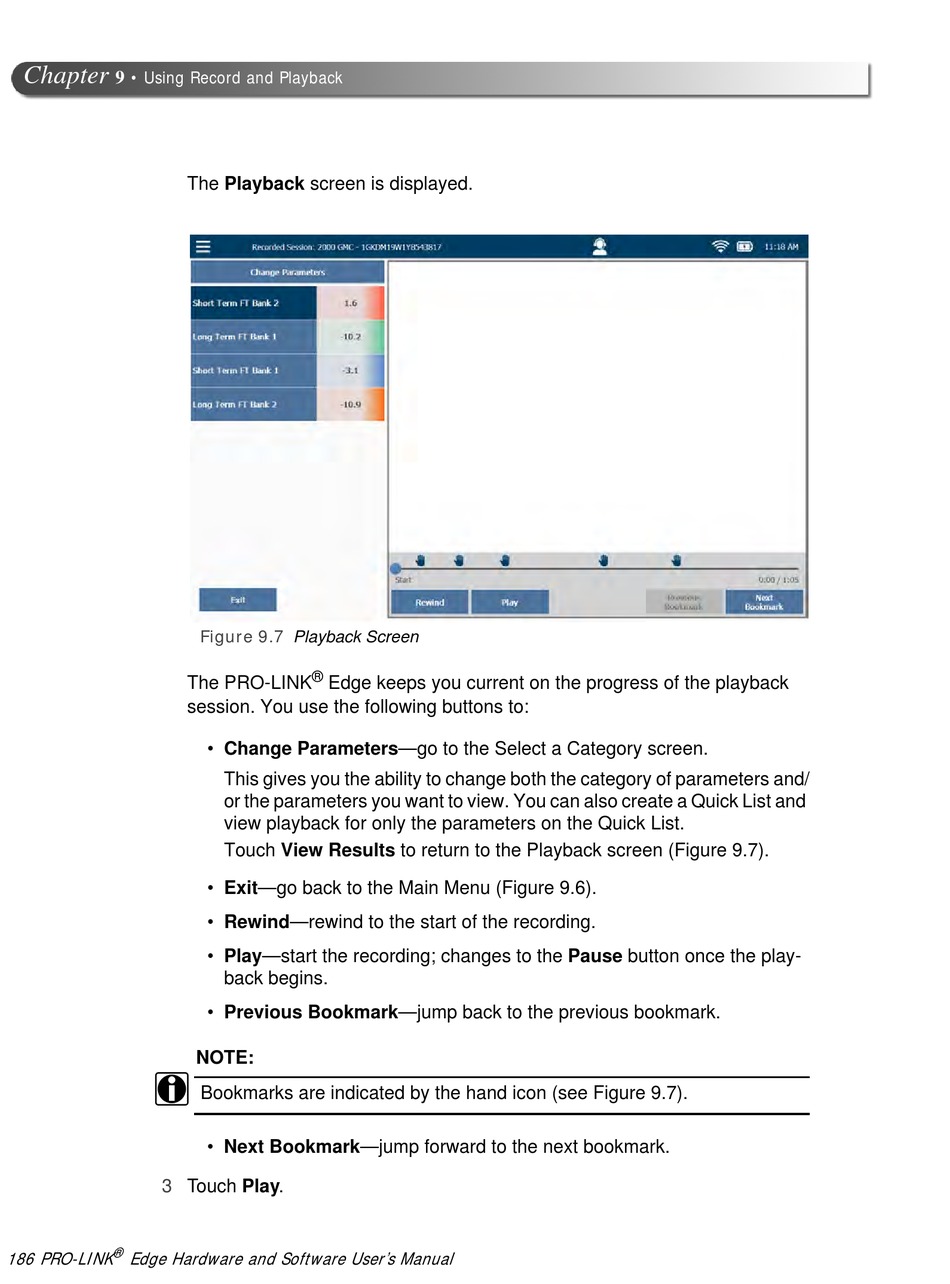

The Playback screen is displayed.
Figure 9.7
Playback Screen
®
The PRO-LINK Edge keeps you current on the progress of the playback
session. You use the following buttons to:
• Change Parameters—go to the Select a Category screen.
This gives you the ability to change both the category of parameters and/
or the parameters you want to view. You can also create a Quick List and
view playback for only the parameters on the Quick List.
Touch View Results to return to the Playback screen (Figure 9.7).
• Exit—go back to the Main Menu (Figure 9.6).
• Rewind—rewind to the start of the recording.
• Play—start the recording; changes to the Pause button once the play-
back begins.
• Previous Bookmark—jump back to the previous bookmark.
NOTE:
Bookmarks are indicated by the hand icon (see Figure 9.7).
• Next Bookmark—jump forward to the next bookmark.
Touch Play.
