SCSI connections
connecting to the SCSI ports
connecting to the SCSI ports
This section describes how to connect to the system SCSI ports (Ultra Narrow
Single-Ended and Ultra2 Wide Low-Voltage Differential).
system SCSI port connection
The system contains two SCSI connectors:
• Ultra Narrow, Single-Ended SCSI (NSE SCSI) connector
• Ultra2 Wide Low-Voltage Differential SCSI (LVD SCSI) connector

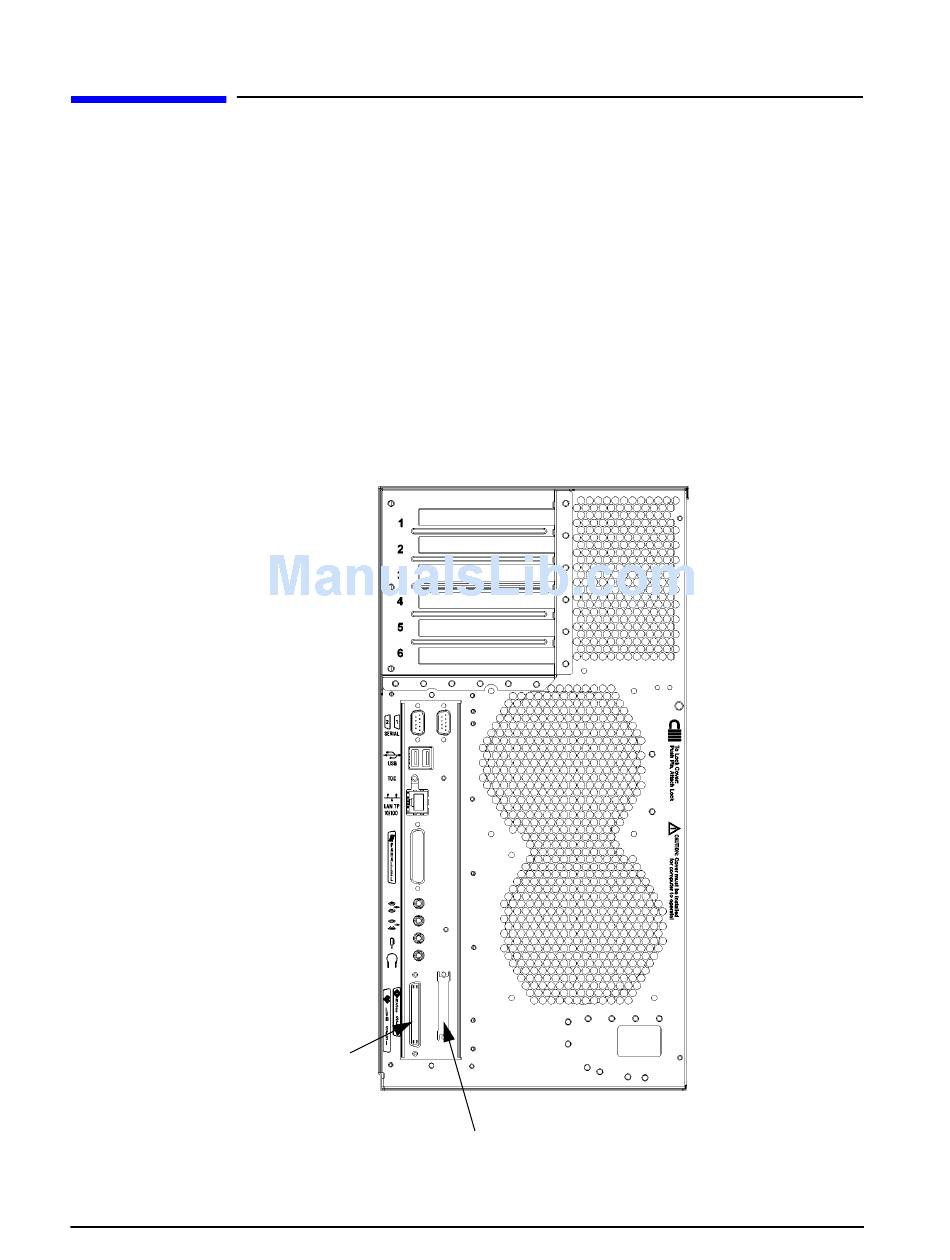

Figure B-1 shows the two SCSI connectors. SCSI cables connect to these ports with a
high-density thumbscrew connector.
Figure B-1. SCSI Ports
212
Ultra2 Wide
LVD SCSI
Connector
(Connect
Terminator)
Ultra Narrow Single-Ended SCSI
Connector (Connect Terminator)
Appendix B
