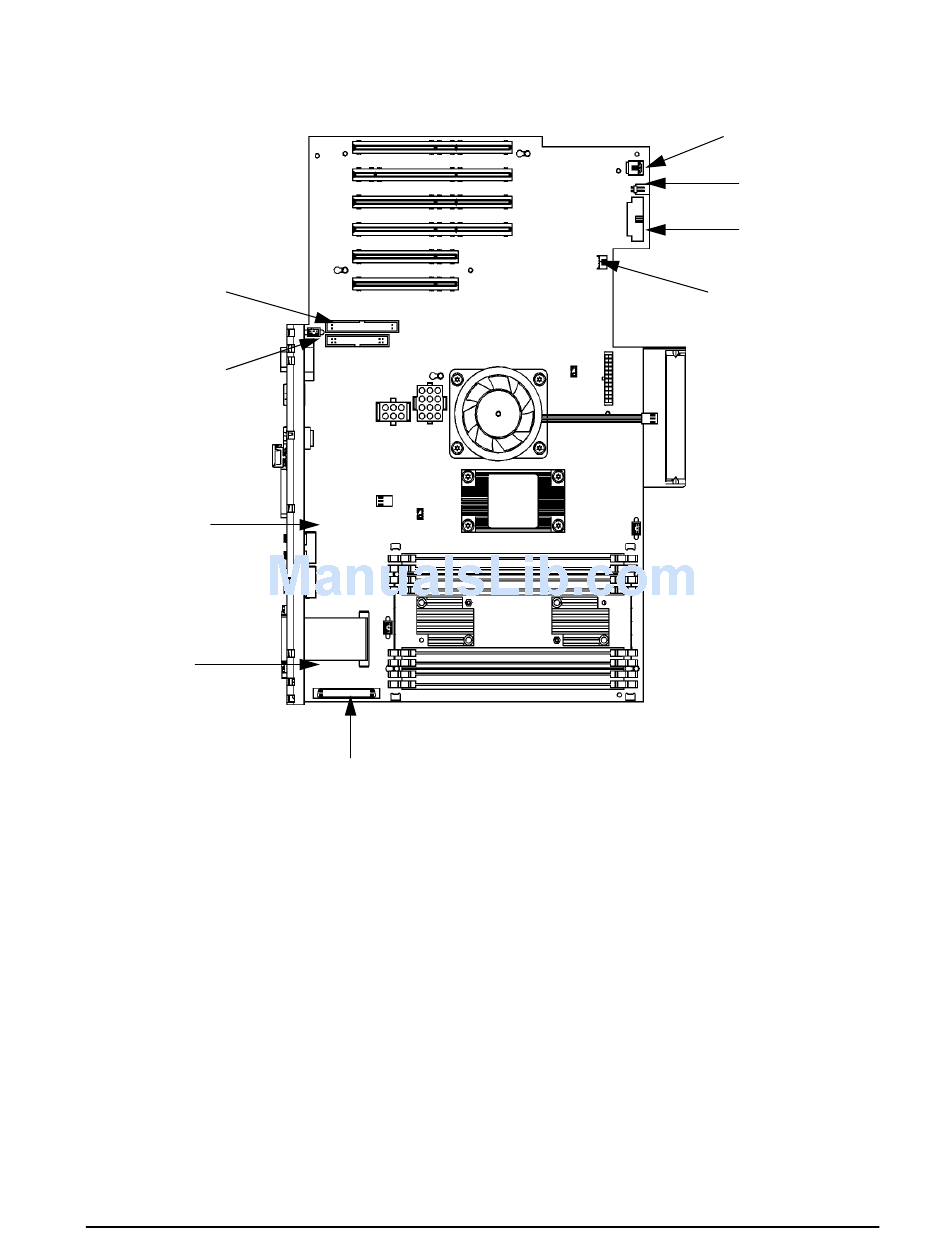

Figure 4-62. Installing the System Board

CD Drive
Connector
Floppy
Drive
Connector
Fan
Power
Connector
Fan
Power
Connector
2. Re-attach the cables described in step 7 of "Removing the System Board" on page 147
and replace the two T-15 Torx screws on the rear of the chassis.
3. Replace the following components:
a. Power supply
b. DIMM cards
c. Hard disk drive fan
d. PCI air divider
e. PCI cards
f. PCI retainer
4. Replace the left side panel as explained in the section "opening the left side panel of the
system unit" in this chapter.
Chapter 4
Ultra2 Wide LVD SCSI Connector
field replaceable units
FRU removal and replacement
Fan Power
Connector
Speaker
Connector
LCD Display
Connector
CD Power
Connector
