field replaceable units
FRU removal and replacement

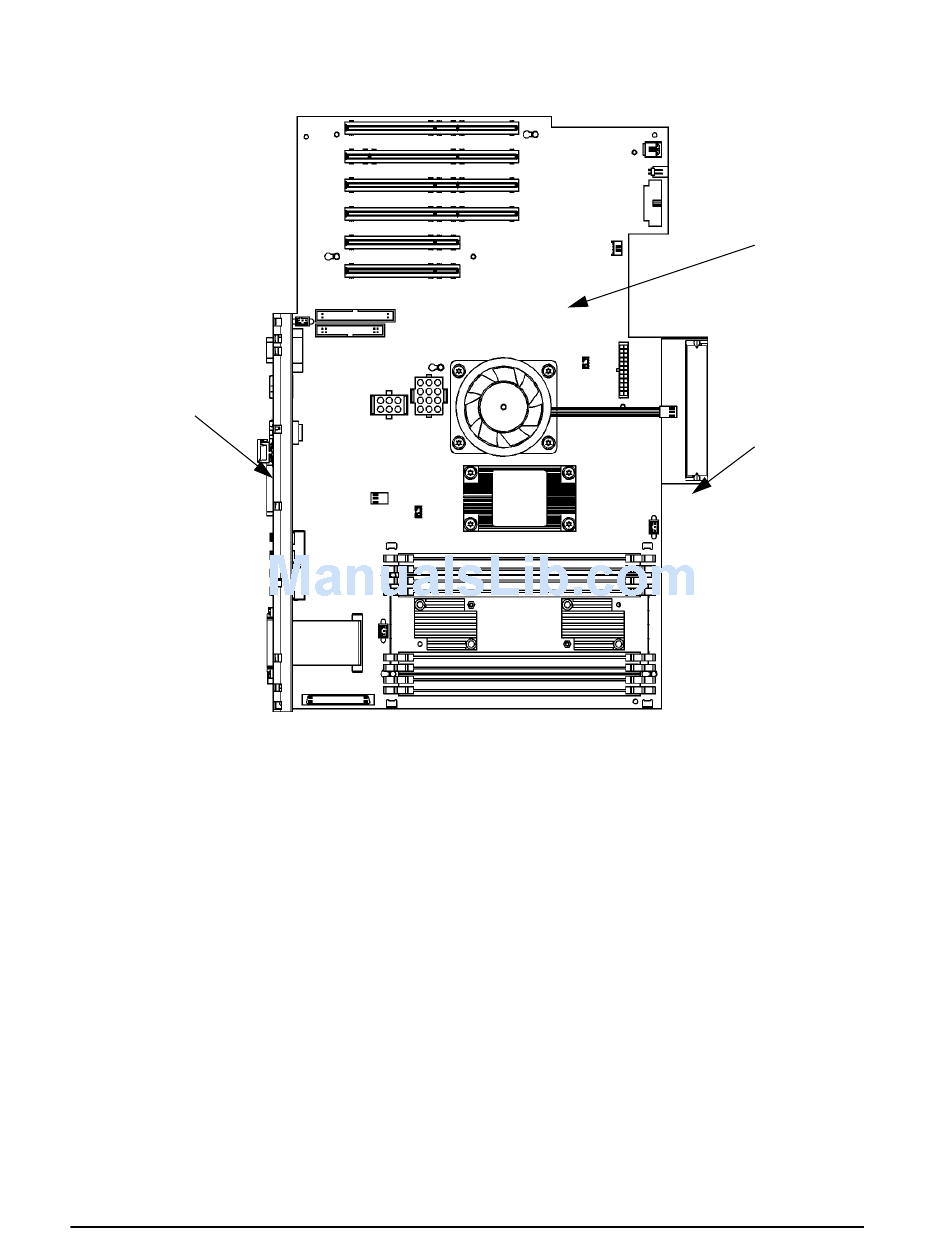

Figure 4-61. Removing the System Board

Left
Edge
8. Fold back the workstation cables to avoid interference or damage.
9. Grasp the system board tray handle and slide the system board to the front of the
workstation. The system board tray keyholes are unlatched from the chassis wall hooks.
Lift the system board up then rotate to clear the top chassis hem and remove.
installing the system board tray assembly
To install the system board perform the following steps:
1. Angle the system board assembly diagonally as you begin installation. Position the
system board flat inside the chassis. Slide the system board tray slightly to the front
and then to the rear of the workstation to engage the chassis wall hooks. See Figure
4-62.
148
System Board
Right
Edge
Chapter 4
