field replaceable units
FRU removal and replacement

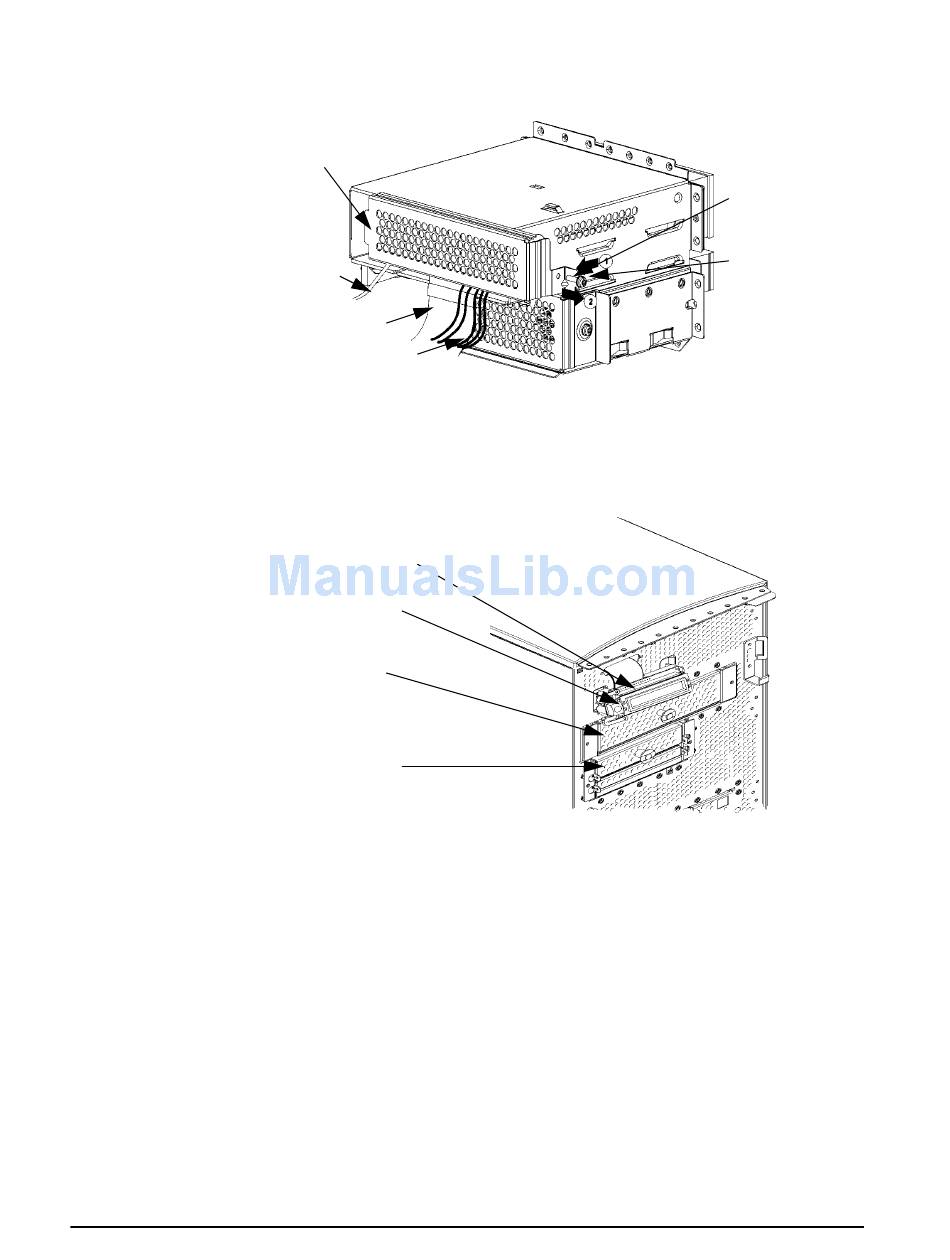

Figure 4-22. Removing the CD Drive Rear Cover

3. Rotate the system unit around until you see the front of the unit as shown in Figure
4-23.

Figure 4-23. Front of System Unit with the Front Panel Removed

4. Remove both CD Drive bracket screws (T-15 Torx screws) and pull the CD Drive bracket
out of the chassis assembly as shown in Figure 4-24. Next remove the four CD Drive
blank screws (T-10 Torx screws) as shown in Figure 4-24. and remove the blank from
the bracket. You are now ready to mount the CD Drive into the CD Drive bracket.
118
Rear
Cover
Audio
Cable
ATAPI Cable
Power Cable
LCD Display
System Power Switch
CD Drive Blank
Floppy Disk Drive Blank
Rear Cover
Handle
T-15 Torx/slotted
Screw
Chapter 4
