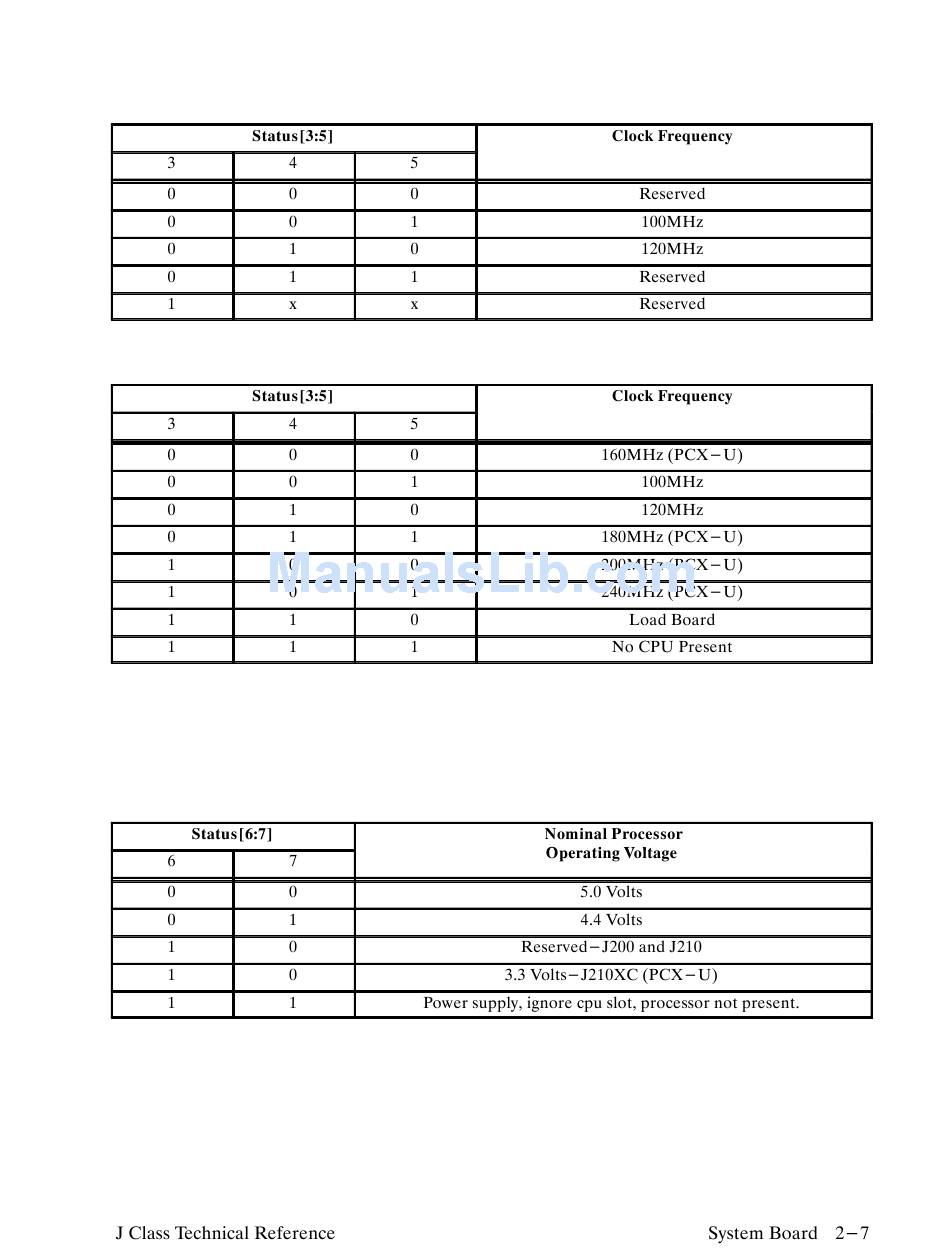

Table 2–9. Operating Frequency Configuration Bits for J200 and J210

Table 2–10. Operating Frequency Configuration Bits for J210XC

Status[6:7] are routed directly to the power system, which senses the configuration before supplying

power to the system. Each of the bits is pulled high through a resistor in the power supply. The CPU

module ties the bits which should be zero to ground through a 0 ohm resistor.

Table 2–11. Operating Voltage Configuration Bits

Processor Module

Overview

The PA7200 Processor Module family is a modular concept for processor board design. The PA7200

Module family encompasses two clock frequencies to provide various price/performance points for
