Functional Description Block Diagram

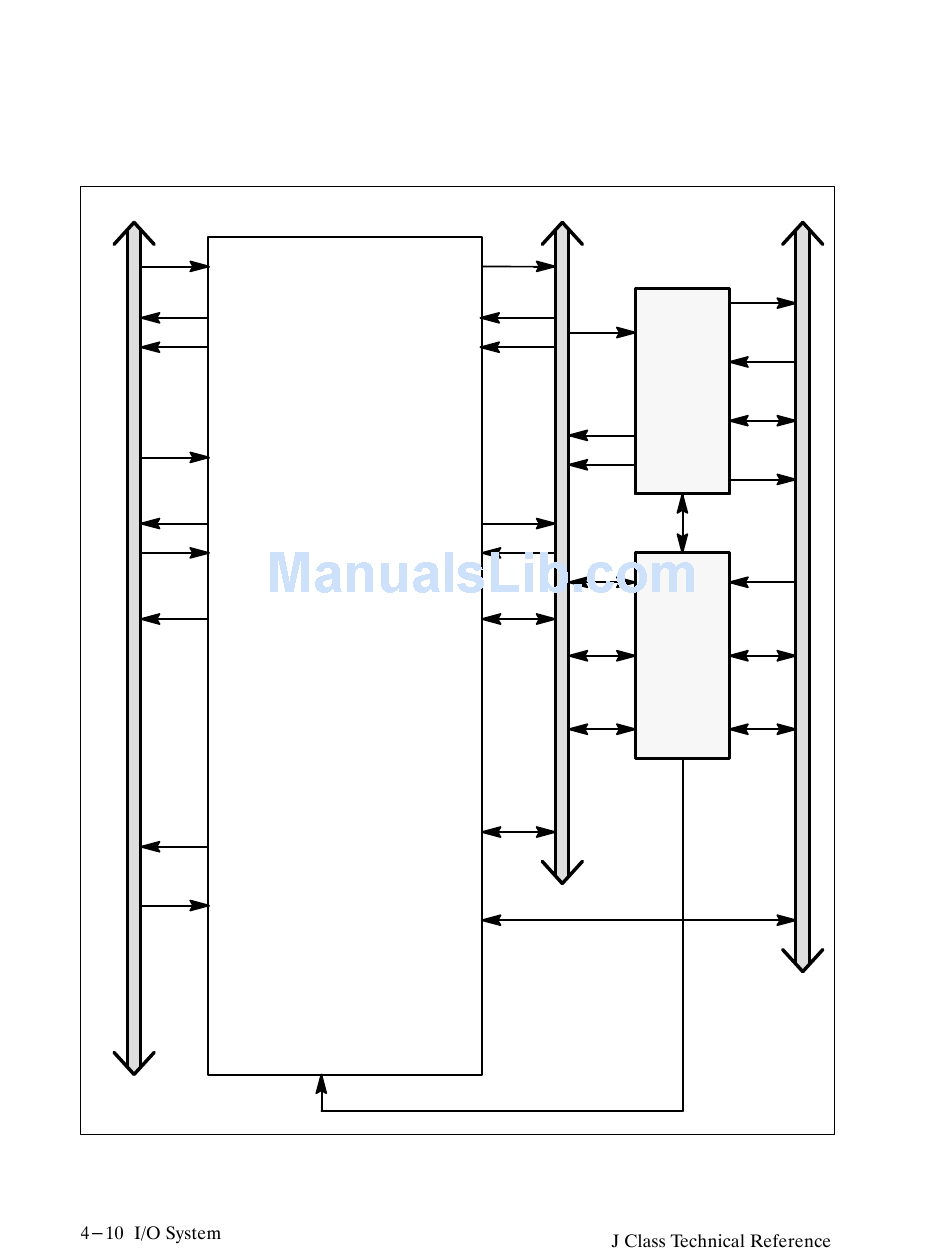

This block diagram describes the GSC to EISA Interface.
GSC
reset
irq
nmi
ctrl in
bus req
bus ack
EISA Converter
ctrl out
address/
data out
address/
data in
Figure 4–4.
reset
irq
nmi
bus req
bus ack
control
address
data
data path control
GSC to EISA Interface Block Diagram
i486
reset
TI's
EPCU
irq
nmi
inter-chip communication
arbitration
TI's
control
EBCU
address
EISA
reset
irq
address
bus ack
bus req
control
address
