Specifications

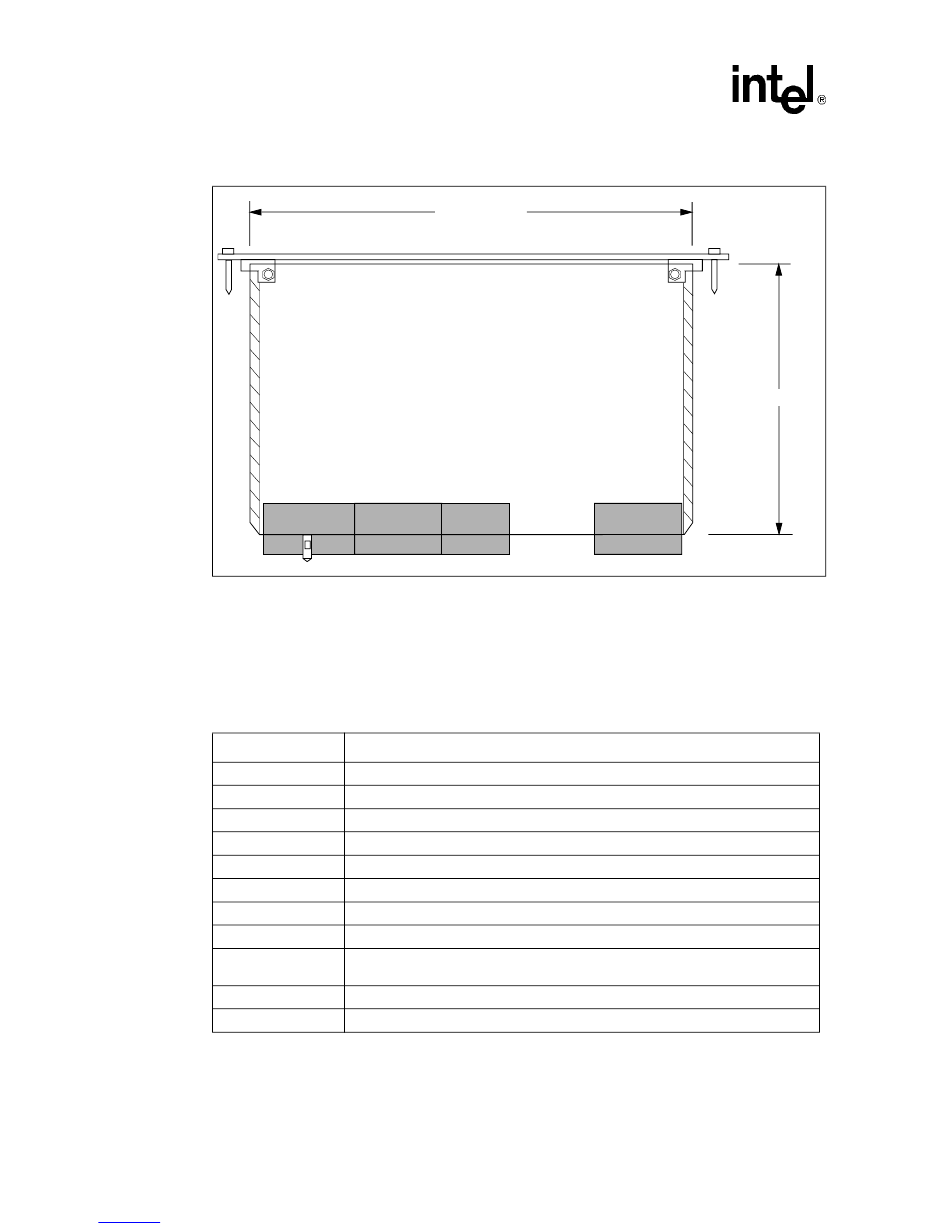

Figure 8. PCB Dimensions
A.3.2
Table 22. Connector Assignments
62
Downloaded from Elcodis.com electronic components distributor
Connectors
As shown in Figure 9, the ZT 5515 includes several connectors to interface to application-specific
devices. A brief description of each connector is given in the "Connector Assignments" table
below. A detailed description and pinout for each connector is given in the following topics.
Connector Function
J1, page 65 CompactPCI Bus Connector (110-pin, 2 mm x 2 mm, female)
J2, page 66 CompactPCI Bus Connector (110-pin, 2 mm x 2 mm, female)
J3, page 67 CompactPCI (Ethernet) Connector (95-pin, 2 mm x 2 mm, female)
J5, page 68 Rear-panel I/O Connector (110-pin 2 mm x 2 mm, female)
JA1, page 69 Ethernet A Connector (8-pin)
J25, page 70 VGA Connector (15-pin, D-Shell)
J20, page 70 Universal Serial Bus Connector (4-pin, USB, Port 0)
J30, page 70 COM1 Serial Port (8-pin, RJ-45)
J11, J12, J14,
PCI Mezzanine Connector(s) (64-pin, 1 mm)
page 71
J8, page 74 IDE Connector (primary channel – local hard drive)
J24, page 71 Right angle DIMM connector
®
TM
Intel NetStructure ZT 5515 Compute Processor Board Technical Product Specification
233.35 mm
160.0 mm
