Specifications

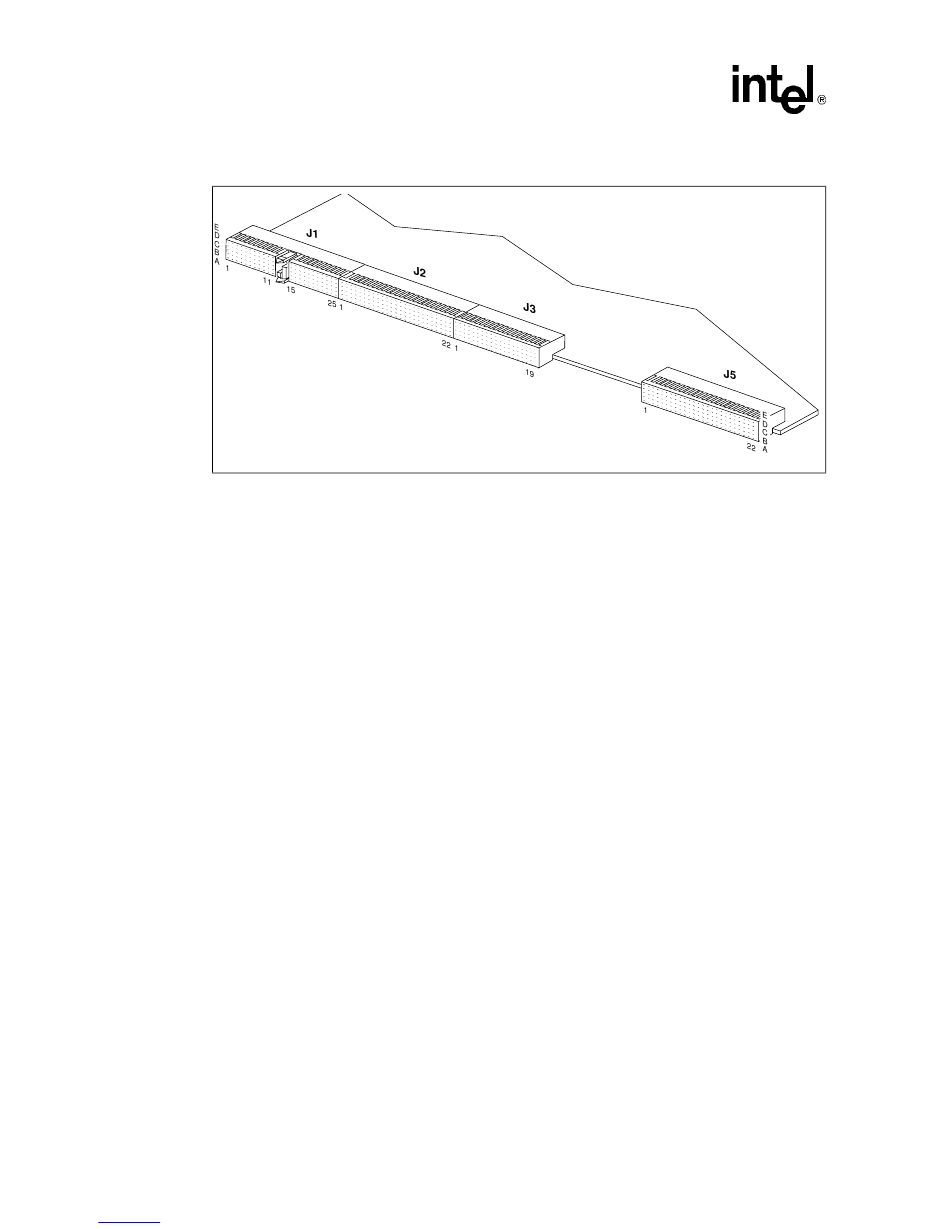

Figure 10. Backplane Connectors - Pin Locations
A.3.2.1
64
Downloaded from
Elcodis.com
electronic components distributor
J1 (CompactPCI Bus Connector)
J1 is a 110-pin, 2 mm x 2 mm, female 32-bit CompactPCI connector (AMP 352068-1). Rows 12-
14 are used for connector keying. See the "J1 CompactPCI Bus Connector Pinout" table below for
pin definitions. Refer to
Figure 10
®
TM
Intel
NetStructure
ZT 5515 Compute Processor Board Technical Product Specification
for pin placement.
above
