Description of supported connections
Device connector
DVI
HD-15
Matrox P690 Plus LP PCIe ×16 (quad-monitor cable)

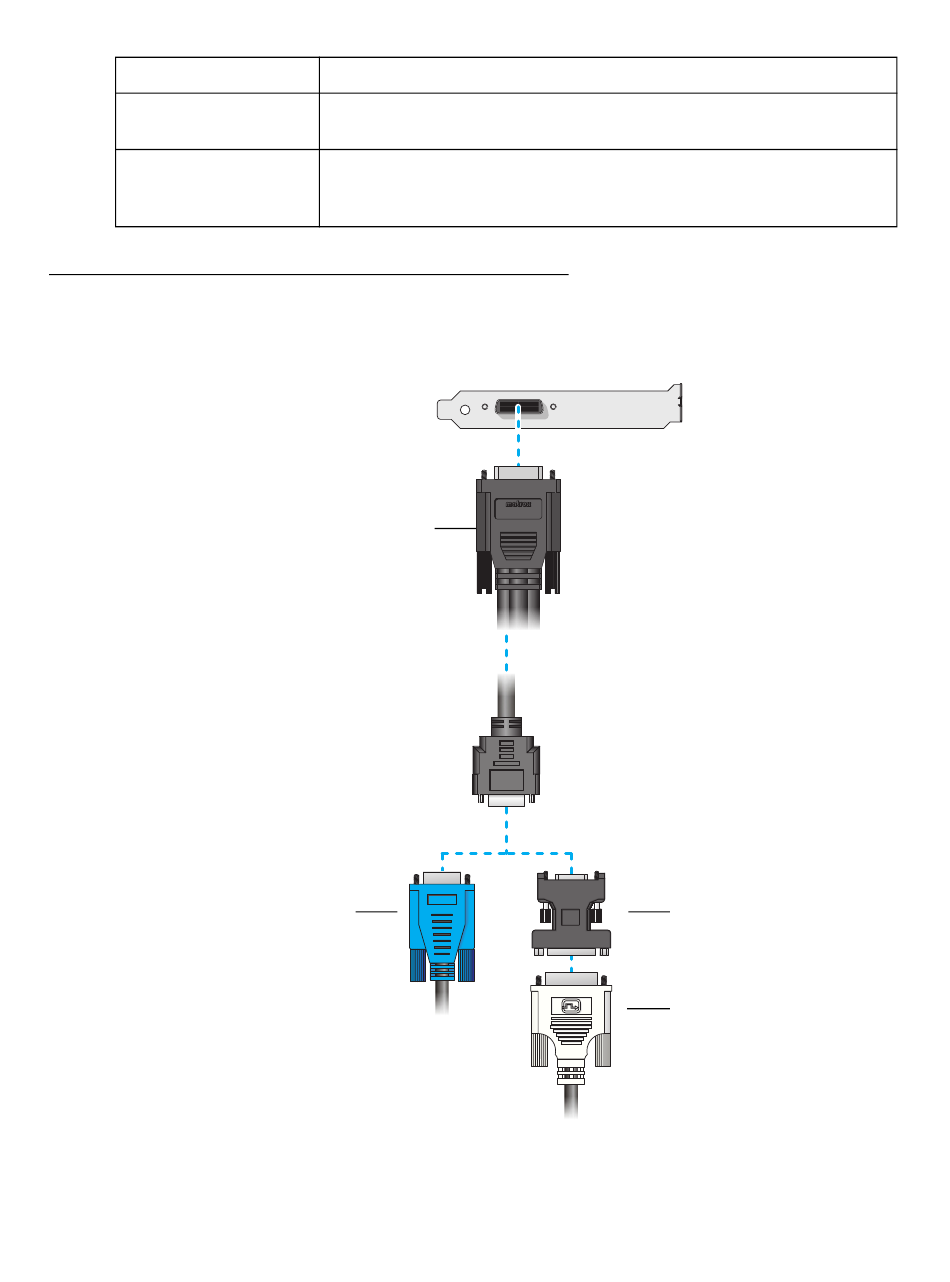

Connection overview
Description
If your monitor has a DVI connector, connect your monitor cable
directly to a DVI connector on your output cable.
If your monitor has an HD-15 connector, use a DVI to HD-15 adapter
included with your Mura product to connect your monitor cable to
your output cable.
Output cable
(LFH-60 to Quad-DVI)
Monitor
connector
(HD-15)
HD-15 to DVI
adapter
Monitor
connector
(DVI)
Matrox Display Wall – User Guide 79
