Matrox P690 Plus LP PCIe ×16 (dual-monitor cable)

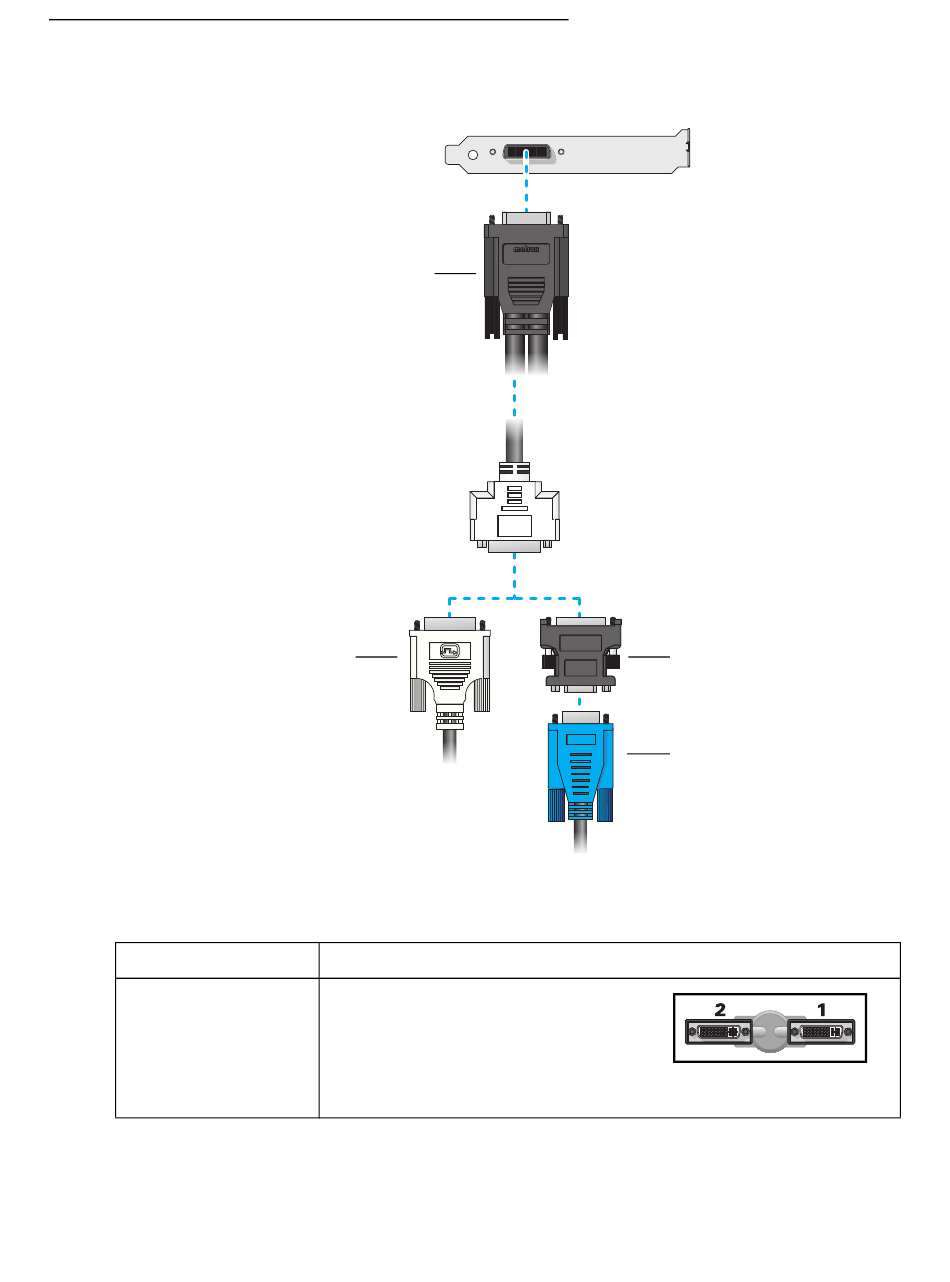

Connection overview
Description of cable
Cable
Output
78 Matrox Display Wall – User Guide
Output cable
(LFH-60 to Dual-DVI)
Monitor
connector
(DVI)
Description
Matrox P690 cards use an LFH-60 to
dual-DVI cable to connect up to
two (2) monitors per card. Monitors
are numbered consecutively based
on which connector each is attached
to, starting with connector labeled 1.
DVI to HD-15
adapter
Monitor
connector
(HD-15)
LFH-60 to dual-DVI cable
