Mura MPX-SDI
This section describes how to connect your output devices (monitors) and input devices to your Mura
MPX-SDI card.

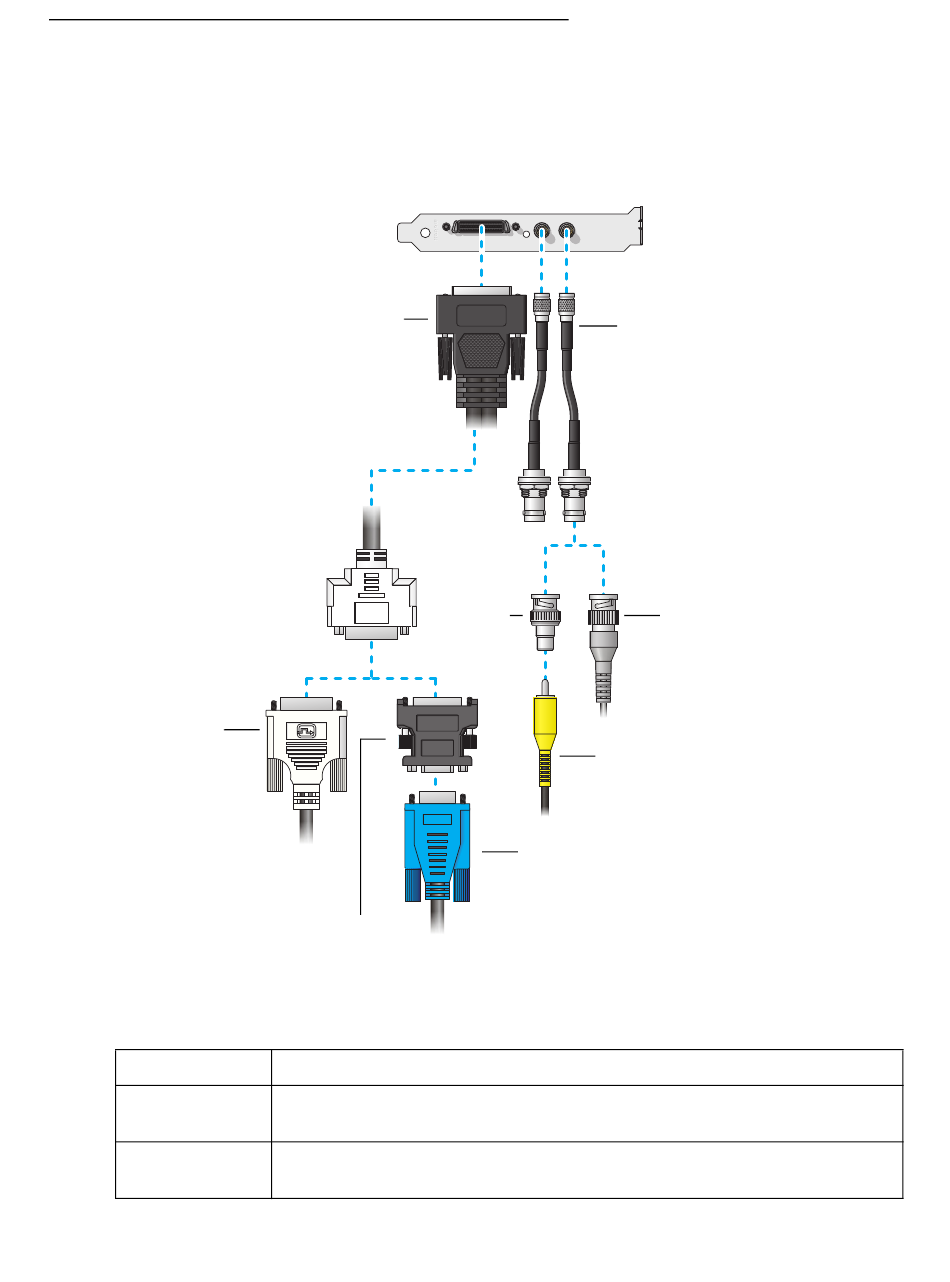

Connection overview
Monitor
connector
(DVI)
Description of cables
Cable
Output
Input
Output cable
(KX20 to dual-DVI)
Composite
DVI to HD-15
adapter
Description
Mura MPX-SDI cards use a KX20 to dual-DVI cable to connect up to two (2)
monitors per card.
Mura MPX-SDI cards use a DIN to BNC cable to connect up to two (2) input
devices per card.
Input cables
(DIN to BNC)
BNC to
adapter
Composite connector
Monitor connector
(HD-15)
Matrox Display Wall – User Guide 41
BNC connector
