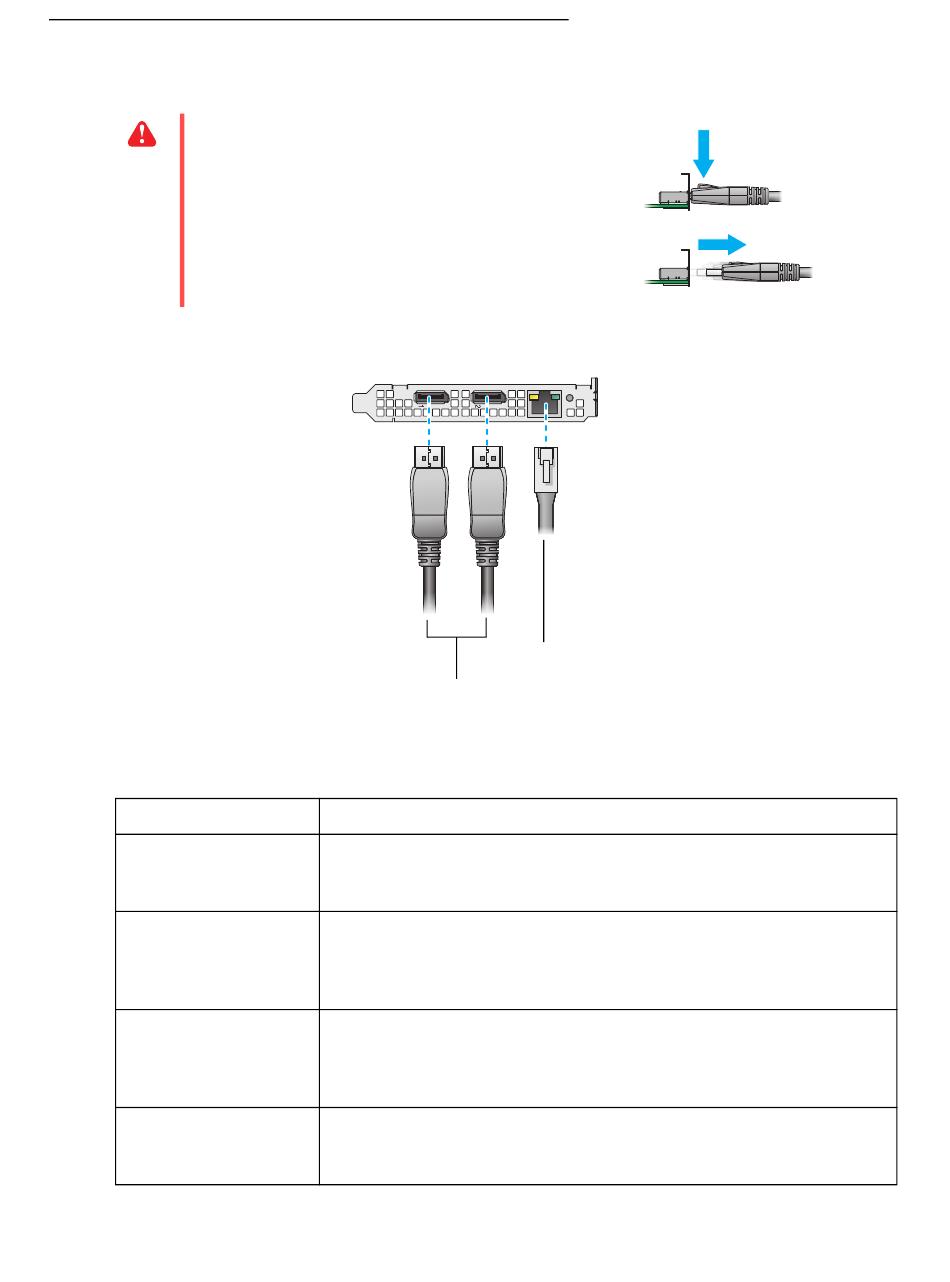

Connection overview

Desciption of supported connections

Device connector
DisplayPort
DVI
HDMI
Network
(RJ-45)
* Only active adapters (sold separately) are supported. Passive adapters aren't supported.
36 Matrox Display Wall – User Guide
To avoid damaging the
DisplayPort to
DisplayPort cables
Description
If your video device has a DisplayPort connector, attach your
DisplayPort to DisplayPort cable to your Matrox card. Connect the
other end of the cable to your video device.
If your video device has a DVI connector, use a DisplayPort to DVI
*
adapter (active ) to connect to the mini DisplayPort connector on your
Matrox card. Connect your video device to the DVI connector on your
adapter.
If your video device has an HDMI connector, use a DisplayPort to
HDMI adapter (active
on your Matrox card. Connect your video device to the HDMI
connector on your adapter.
If your video device streams to an IP network, connect a network
cable to your Matrox card. Your video device must stream using an
RTSP, RTP, SRT, or MPEG-2 TS protocol.
Network cable
(RJ-45)
*
) to connect to the mini DisplayPort connector
