Note: If your system has multiple PCIe ×16 slots, your choice of PCIe slot may affect your
card or system performance. Some PCIe ×16 slots support only 8 or 4 lanes. Make sure the
PCIe slot you choose supports the proper number of lanes for your Mura card. For more
information, see your computer manual or the Matrox System Builder's Guide.
Insert your Matrox card
3

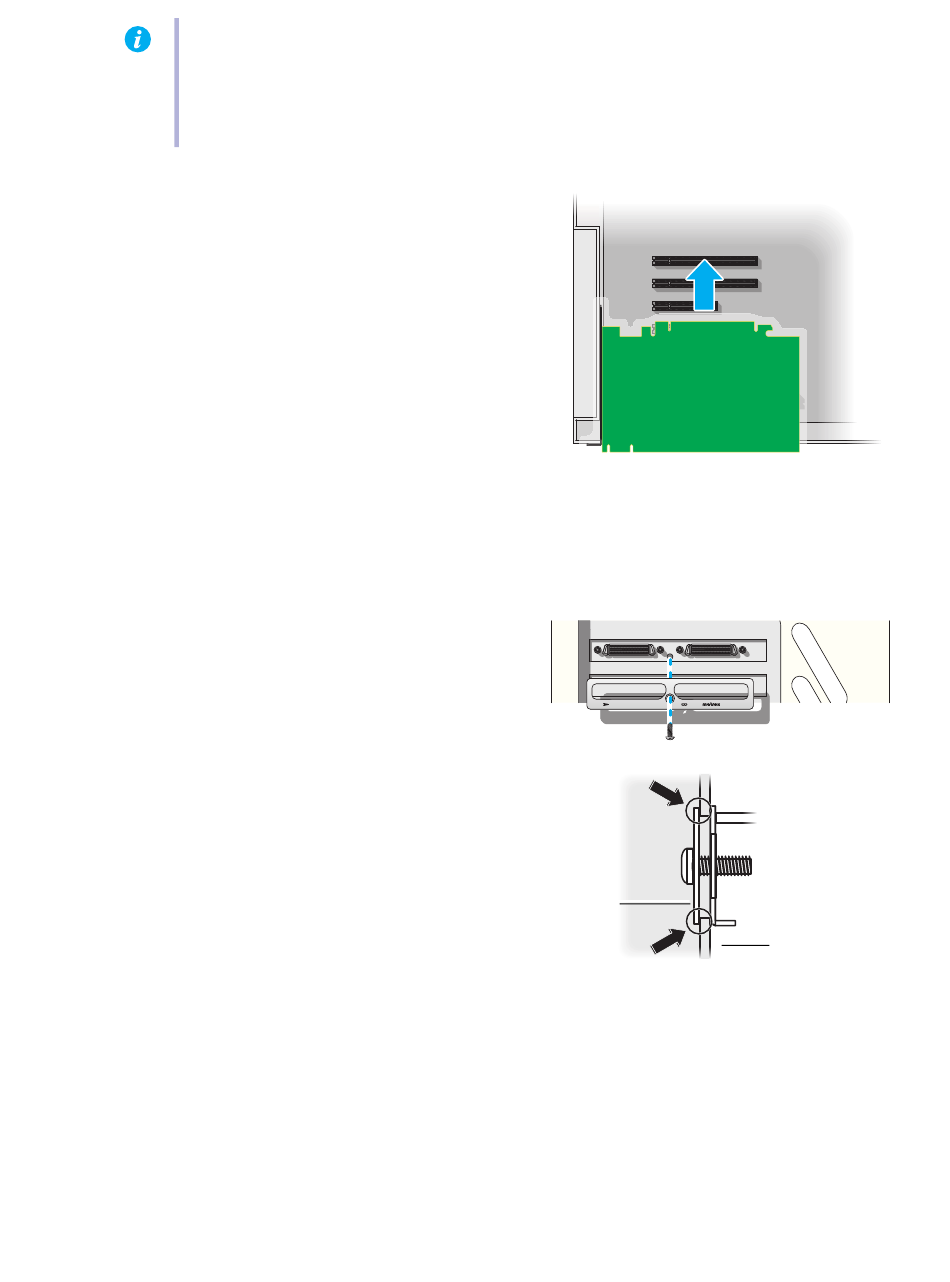

a Position your Matrox card over the
expansion slot you've chosen.
Push the card in firmly and evenly until
b
it's fully seated in the slot.
Secure the bracket of your Matrox card
c
to the frame of your system.
Secure the bracket of your Matrox card
4
Mura MPX Series only – To support the weight of your cable and to avoid damaging your
Matrox card, you need to properly secure the bracket of your card to your system.
To secure your bracket, slip the washer
a
provided with your Matrox product
over the connectors, then screw the
washer onto the bracket of your Matrox
card.
Make sure the washer lies flat against the
b
frame of your system.
Your Matrox card is now installed. If you're installing more than one card,
cards", page 26. Before restarting your system, connect your monitors or devices (see the "Connection
setup" section for the card you want to connect). After connecting, restart your system and install your
Matrox software.
Washer
see "Installing multiple
