MURAIPXI-E4JF, MURAIPXI-E4JHF, MURAIPXI-D4JF, and
MURAIPXI-D4JHF

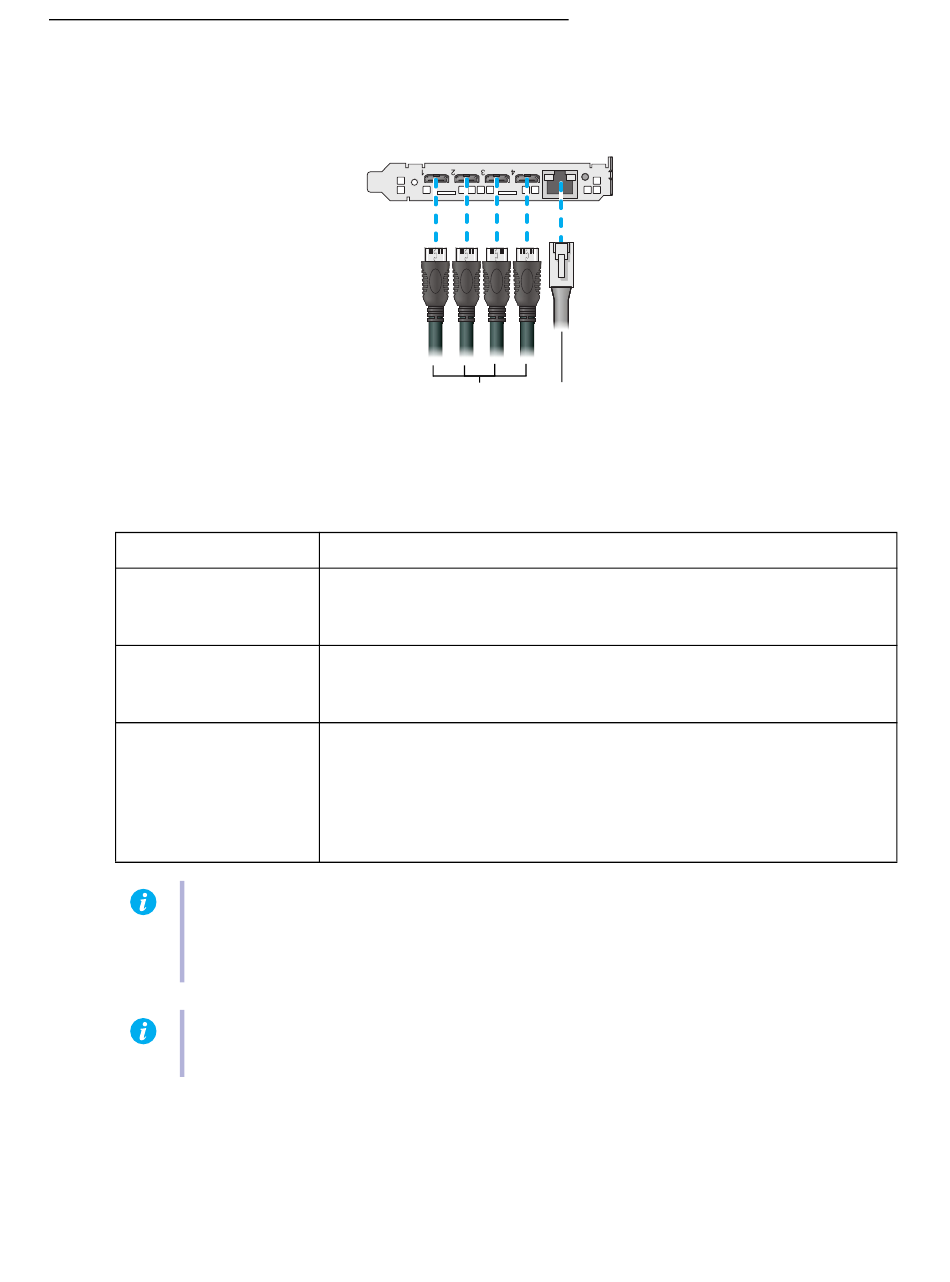

Connection overview
Description of supported connections
Device connector
HDMI
DVI
Network
(RJ-45)
Note: To connect to the bracket of your Matrox product, the overmold (or boot) of the
mini HDMI connectors must respect the maximum width (0.551in/14 mm) and thickness
(0.331in/8.4 mm) stated in the HDMI specifications.
Note: Inputs from your Mura IPX Series capture cards are ordered according to the order
of the cards on the PCI bus and then the order of the connectors on the card.
Mini HDMI
to HDMI
cables
Description
If your video device has an HDMI connector, attach your mini HDMI
to HDMI cable to your Matrox card. Connect the other end of the
cable to your video device.
If your video device has a DVI connector, use a mini HDMI to DVI
adapter to connect to the mini HDMI connector on your Matrox card.
Connect your video device to the DVI connector on your adapter.
If your video device streams to an IP network, connect a network
cable to your Matrox card. Your video device must stream using an
RTSP, RTP, SRT, or MPEG-2 TS protocol.
MURAIPXI-E4JF and MURAIPXI-E4JHF only – You need to
connect to the network to record to a Network Attached Storage
(NAS) device or to stream video.
Network
cable
(RJ-45)
Matrox Display Wall – User Guide 37
