WARNING:
connector (1.0/2.3) on your DIN to BNC
adapter or on your card, firmly hold the
adapter, pull back the metal ring around
the DIN connector on the cable, then
carefully remove the DIN to BNC adapter.

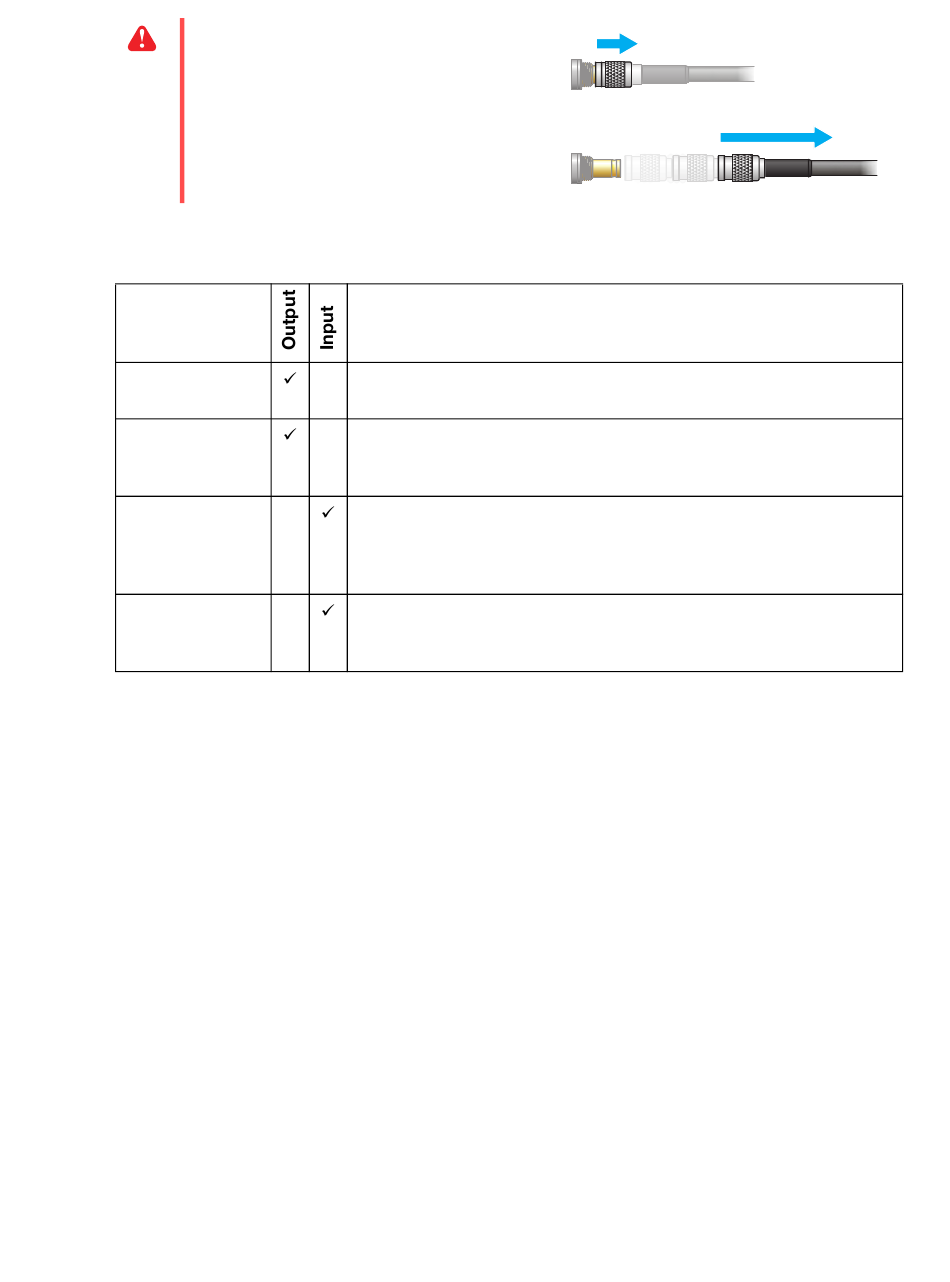

Description of supported connections
Connection
DVI
HD-15
Composite
(RCA)
Composite
(BNC)
42 Matrox Display Wall – User Guide
To avoid damaging the DIN
Description
If your monitor has a DVI connector, connect your monitor cable
directly to a DVI connector on your output cable.
If your monitor has an HD-15 connector, use a DVI to HD-15
adapter included with your Mura product to connect your monitor
cable to your output cable.
If your video device has an RCA composite connector, use a BNC
to Composite (RCA) adapter to connect to the BNC connector on
your input cable. Connect your video device to the composite
connector on your adapter.
If your video device has a BNC composite connector, connect the
composite cable directly to the BNC connector on your input
cable.
