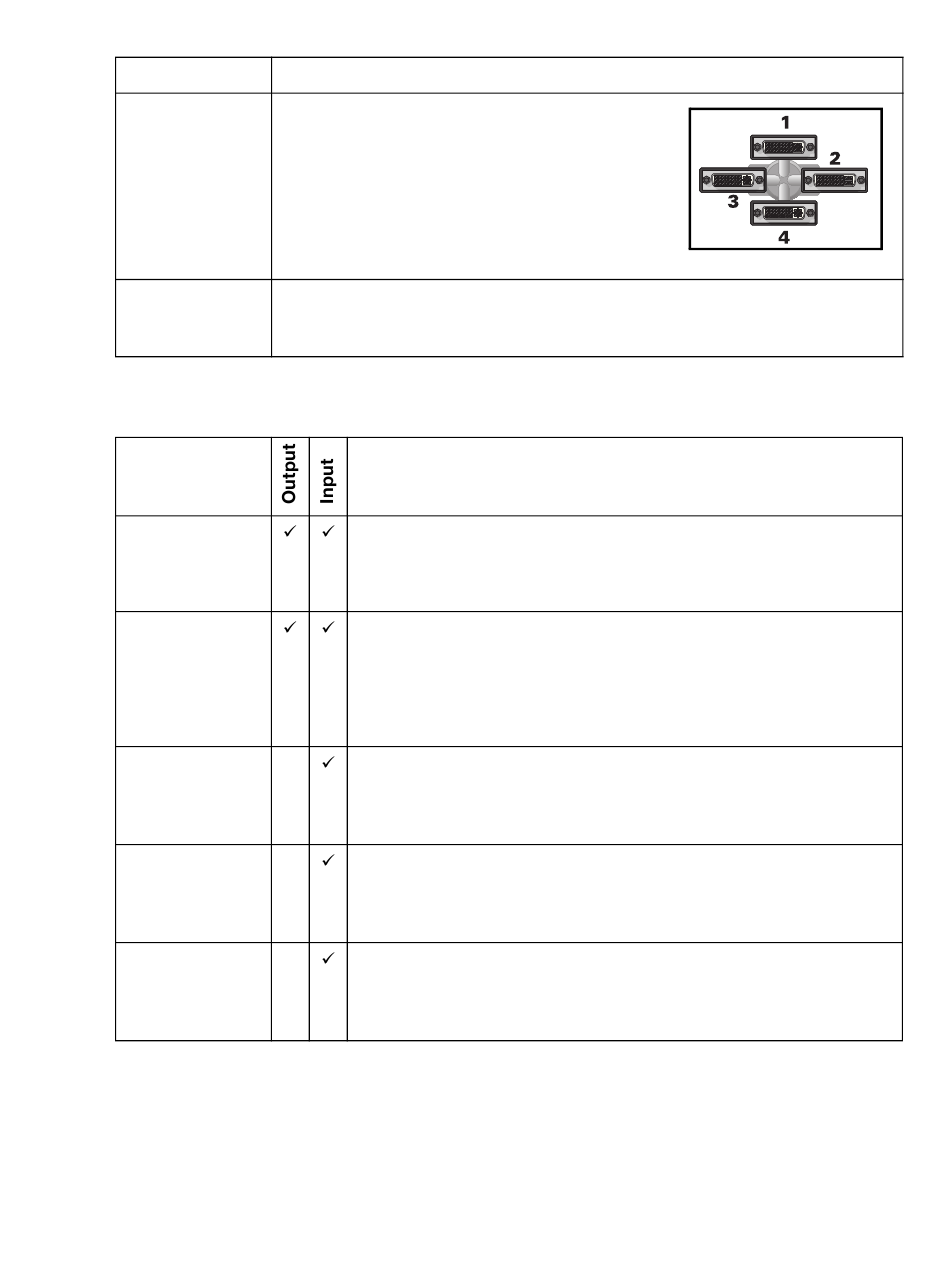

Description of cables

Cable
Output
Input

Description of supported connections

Device
connector
DVI
HD-15
S-video
Composite
Component
40 Matrox Display Wall – User Guide
Description
Mura MPX-4/4 and MPX-4/2 cards use
KX20 to quad-DVI cables to connect up to
four (4) monitors per card.
Monitors are numbered consecutively
based on which connector each is attached
to, starting with connector labeled 1.
A Mura MPX-4/4 card uses a KX20 to quad-DVI cables to connect up to
four (4) input devices per card. A Mura MPX-4/2 card uses a KX20 to
dual-DVI cable to connect its input devices.
Description
If your monitor has a DVI connector, connect your monitor cable
directly to a DVI connector on your output cable.
If you connect a graphics card with a DVI monitor cable, connect
your monitor cable directly to your input cable.
If your monitor has an HD-15 connector, use a DVI to HD-15
adapter included with your Mura product to connect your monitor
cable to your output cable.
If you connect a graphics card with an HD-15 monitor cable, use
a DVI to HD15 adapter included with your Mura product to
connect your monitor cable to your input cable.
If your video device has an S-video connector, use a DVI to
S-video adapter to connect to the DVI connector on your input
cable. Connect your video device to the S-video connector on
your adapter.
If your video device has a composite connector, use a DVI to
Composite (RCA) adapter to connect to the DVI connector on your
input cable. Connect your video device to the composite
connector on your adapter.
If your video device has a component connector, use a DVI to
Component adapter to connect to the DVI connector on your input
cable. Connect your video device to the component connector on
your adapter.
KX20 to quad-DVI cable
