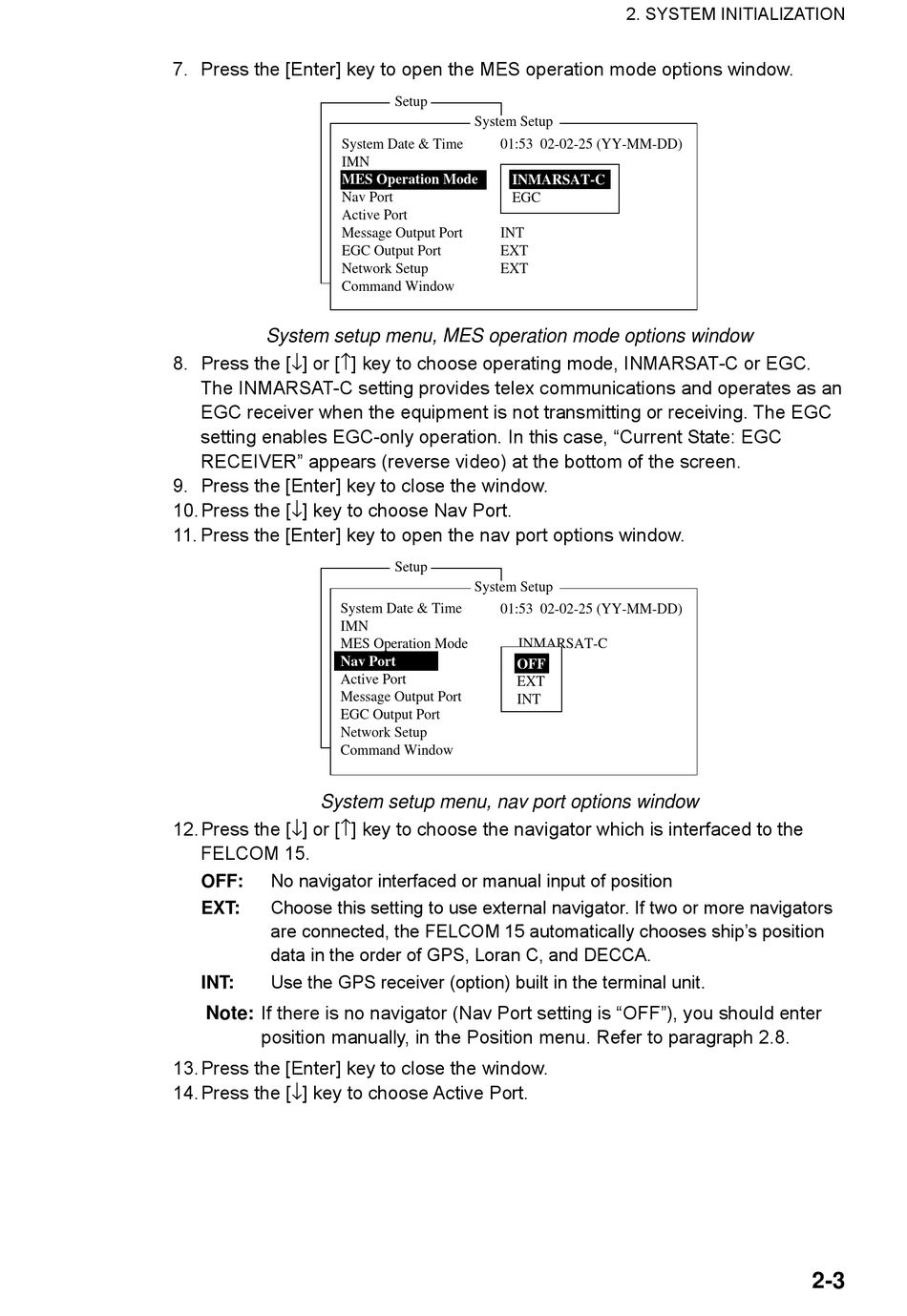

Furuno Felcom 15 Operator's Manual page 35

7. Press the [Enter] key to open the MES operation mode options window.
System Date & Time
IMN
MES Operation Mode
Nav Port
Active Port
Message Output Port
EGC Output Port
9. Configuration
Network Setup
Command Window
System setup menu, MES operation mode options window
8. Press the [ ] or [ ] key to choose operating mode, INMARSAT-C or EGC.
The INMARSAT-C setting provides telex communications and operates as an
EGC receiver when the equipment is not transmitting or receiving. The EGC
setting enables EGC-only operation. In this case, "Current State: EGC
RECEIVER" appears (reverse video) at the bottom of the screen.
9. Press the [Enter] key to close the window.
10. Press the [ ] key to choose Nav Port.
11. Press the [Enter] key to open the nav port options window.
System Date & Time
IMN
MES Operation Mode
Nav Port
Active Port
Message Output Port
EGC Output Port
9. Configuration
Network Setup
Command Window
System setup menu, nav port options window
12. Press the [ ] or [ ] key to choose the navigator which is interfaced to the
FELCOM 15.
No navigator interfaced or manual input of position
OFF:
Choose this setting to use external navigator. If two or more navigators
EXT:
are connected, the FELCOM 15 automatically chooses ship's position
data in the order of GPS, Loran C, and DECCA.
Use the GPS receiver (option) built in the terminal unit.
INT:
Note: If there is no navigator (Nav Port setting is "OFF"), you should enter
position manually, in the Position menu. Refer to paragraph 2.8.
13. Press the [Enter] key to close the window.
14. Press the [ ] key to choose Active Port.
Setup
System Setup
01:53 02-02-25 (YY-MM-DD)
IOR
INMARSAT-C
INMARSAT-C
EGC
OFF
INT
EXT
EXT
Setup
System Setup
01:53 02-02-25 (YY-MM-DD)
INMARSAT-C INMARSAT-C
EXT
OFF
INT
EXT
INT
INT
2. SYSTEM INITIALIZATION
2-3
