Furuno FA Manual

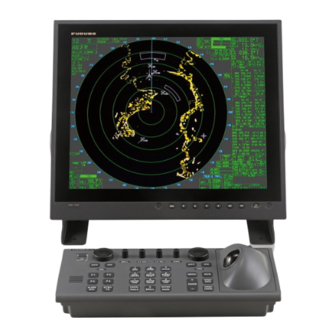

Marine radar/arpa far-28x7 series; far-21x7 series; far-21x7-bb series
Hide thumbs
Table of Contents

Advertisement

Quick Links

MARINE RADAR/ARPA
FAR-28x7 Series
FAR-21x7(-BB) Series

Advertisement

Table of Contents
loading

Related Manuals for Furuno FA

Summary of Contents for Furuno FA

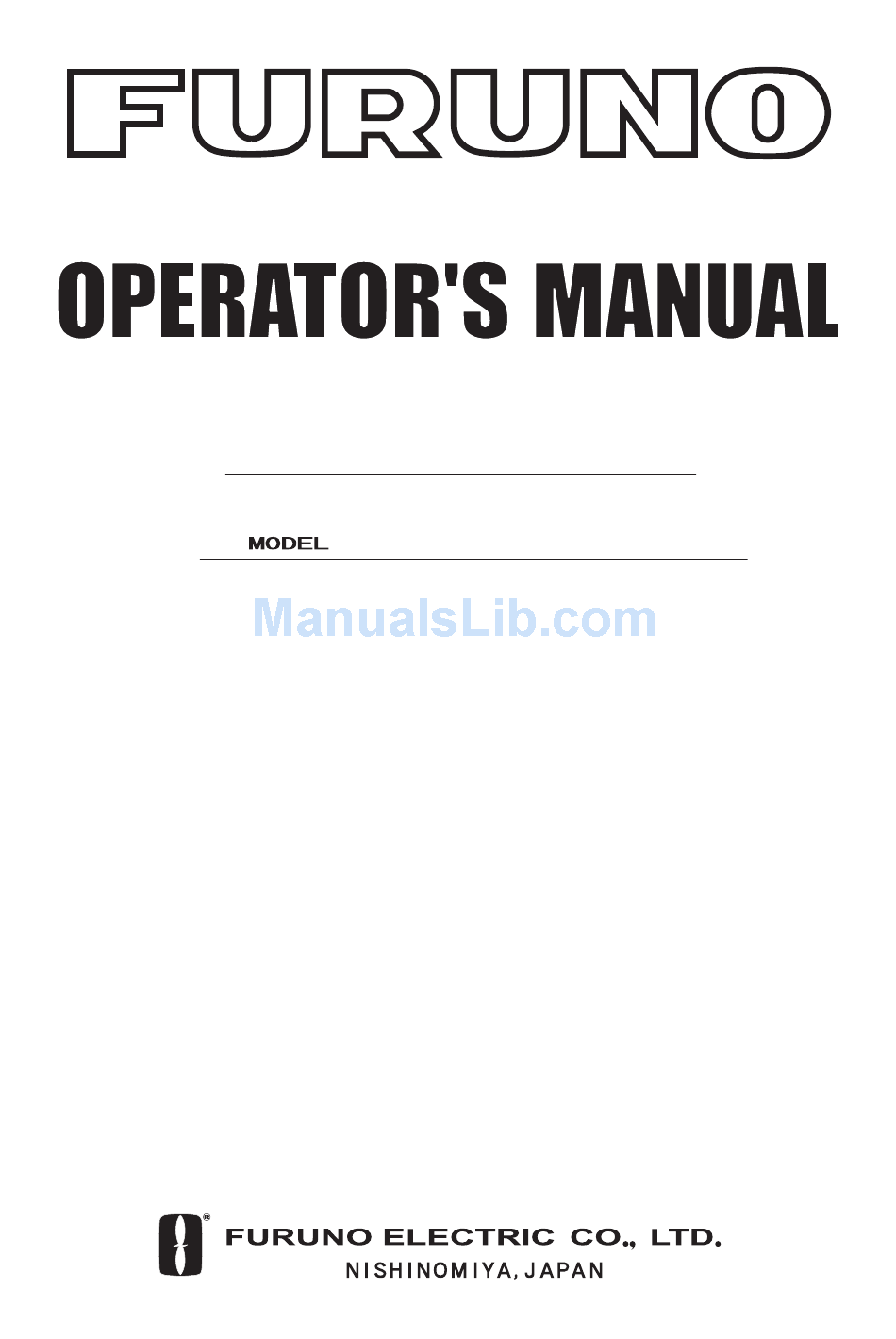

  • Page 1 MARINE RADAR/ARPA FAR-28x7 Series FAR-21x7(-BB) Series...
  • Page 2 Your Local Agent/Dealer Your Local Agent/Dealer 9-52 Ashihara-cho, 9-52 Ashihara-cho, Nishinomiya 662-8580, JAPAN Nishinomiya 662-8580, JAPAN Telephone : Telephone : 0798-65-2111 0798-65-2111 0798-65-4200 0798-65-4200 FIRST EDITION : FIRST EDITION : JAN JAN . . 2004 2004 Printed in Japan Printed in Japan All rights reserved.
  • Page 3 Note: If the antenna unit is installed at a close distance in front of the wheel house, your administration may require halt of transmission within a certain sector of antenna revolution. This is possible. Ask your FURUNO representative or dealer to provide this feature.
  • Page 4 SAFETY INSTRUCTIONS WARNING WARNING ELECTRICAL SHOCK HAZARD Use the proper fuse. Do not open the equipment. Use of a wrong fuse can result in damage Only qualified personnel to the equipment or cause fire. should work inside the equipment. Keep heater away from equipment. Turn off the radar power Heat can alter equipment shape and melt switch before servicing the...
  • Page 5 SAFETY INSTRUCTIONS CAUTION WARNING The plotting accuracy and response of No one navigational aid should be relied this ARP meets IMO standards. upon for the safety of vessel and crew. Tracking accuracy is affected by the The navigator has the responsibility to following: check all aids available to confirm position.
  • Page 6 SAFETY INSTRUCTIONS WARNING LABEL Warning labels are attached to the equipment. Do not remove any label. If a label is missing or damaged, contact a FURUNO agent or dealer about replacement. DISPLAY UNIT, PROCESSOR UNIT WARNING Name: Warning Label (1) To avoid electrical shock, do not remove cover.

  • Page 7: Table Of Contents

    TABLE OF CONTENTS FOREWORD ......................xi PROGRAM NUMBER ..................xiii SYSTEM CONFIGURATION................xiv SPECIFICATIONS ................... SP-1 1 RADAR OPERATION ..................1-1 1.1 Turning on the Power....................1-1 1.2 Transmitter ON ......................1-1 1.3 Control Unit........................ 1-3 1.4 Main Menu......................... 1-5 1.5 Operation Using the On-Screen Boxes ..............
  • Page 8 TABLE OF CONTENTS 1.21.2 Choosing true or relative bearing ..............1-39 1.22 Collision Assessment by Offset EBL................ 1-40 1.22.1 How to assess risk of collision by the offset EBL........... 1-40 1.22.2 Choosing point of reference for origin point of offset EBL......1-41 1.23 Measuring Range and Bearing Between Two Targets ..........
  • Page 9 TABLE OF CONTENTS 1.38 Adjusting Brilliance of Screen Data ................1-74 1.39 Watch Alarm ......................1-75 1.40 Setting Up Nav Data....................1-76 1.41 Text Window Setup....................1-78 1.42 Customizing Operation ....................1-80 1.43 Alarms ........................1-82 1.43.1 Alarm description .................... 1-82 1.43.2 Outputting alarm signal...................
  • Page 10 TABLE OF CONTENTS 3.8 Displaying Target Data .................... 3-12 3.8.1 Displaying individual target data..............3-12 3.8.2 Target list ...................... 3-14 3.9 Vector Modes ......................3-16 3.9.1 Description of vectors ................... 3-16 3.9.2 Vector motion and length ................3-17 3.10 Past Position Display....................3-18 3.10.1 Displaying and erasing past position points, choosing past position plot interval ....................
  • Page 11 TABLE OF CONTENTS 4.9 Past Position Display ....................4-12 4.9.1 Displaying and erasing past position points, choosing past position plot interval....................4-12 4.9.2 Past position display attributes ..............4-13 4.10 Lost Target....................... 4-14 4.11 ROT Setting......................4-15 4.12 Fusion of ARP and AIS Targets ................4-16 4.13 Own Ship’s Data ......................
  • Page 12 TABLE OF CONTENTS 5.12.4 Waypoint list ....................5-25 5.12.5 Displaying waypoint name and number............5-26 5.13 Nav Lines ........................5-27 5.13.1 Entering new nav line ..................5-27 5.13.2 Editing nav lines ....................5-28 5.13.3 Nav line list ......................5-29 5.13.4 Erasing nav lines .....................5-30 5.13.5 Setting up nav lines ..................5-31 5.13.6 Displaying nav line, waypoint mark ..............5-33 5.14 Recording Data ......................5-35 5.14.1 Initializing memory (RAM) cards..............5-35...

  • Page 13: Foreword

    A Word to the Owner of the FAR-28x7/FAR-21x7(-BB) Congratulations on your choice of the FURUNO FAR-28x7/FAR-21x7(-BB) Series Radar. We are confident you will see why FURUNO has become synonymous with quality and reliability. For over 50 years FURUNO Electric Company has enjoyed an enviable reputation for innovative and dependable marine electronics equipment.
  • Page 14 FOREWORD Two types of trackball-equipped control units are available: RCU-014 (full keyboard) and the RCU-015 (palm control). The trackball is easy to use thanks to the ergonomically designed palm rest. Simplified operation with point-and-click menu operation. All functions are accessible by using the trackball alone. Applicable to HSC (High Speed Craft) ARPA (Automatic Radar Plotting Aid) or ATA (Automatic Tracking Aid) + AIS, Radar Plotter and Interswitch supplied as standard.

  • Page 15: Program Number

    PROGRAM NUMBER PC Board Program No. Version No. Date of Modification 035-9204 01.** 035-9202 01.** KEY(REMOTE) 035-9203 01.** CARD 035-9209 01.** ** Program Version No. xiii...

  • Page 16: System Configuration

    SYSTEM CONFIGURATION With FURUNO-supplied monitor FAR-2117/2127/2817/2827/2827W FAR-2137S/2837S/2837SW ANTENNA UNIT ANTENNA UNIT (Performance Monitor PM-51 built in) (Performance Monitor PM-31 built in) Waveguide Waveguide or (For FAR-2827W) Coax cable (For FAR-2837SW) TRANSCEIVER UNIT TRANSCEIVER UNIT RTR-081 RTR-082 For FAR-2827W For FAR-2837SW...
  • Page 17 SYSTEM CONFIGURATION Antenna unit FAR-2117, RSB-096 (24 rpm) FAR-2117-BB RSB-097 (42 rpm) FAR-2127, FAR-2127-BB, FAR-2827, FAR-2137S, RSB-098/099 (21/26 rpm, 200 VAC, 3ø, 50 Hz; 220 VAC, 3ø, 60 Hz; 380 FAR-2137S-BB VAC, 3ø, 50 Hz, 440 VAC, 3ø, 60 Hz) RSB-100/101/102 (45 rpm, 220 VAC, 3ø, 50/60 Hz(HSC);...
  • Page 18 SYSTEM CONFIGURATION Blackbox type FAR-2137S-BB FAR-2117-BB/2127-BB ANTENNA UNIT ANTENNA UNIT (Performance Monitor PM-31 built in) (Performance Monitor PM-51 built in) MONITOR CONTROL UNIT POWER SUPPLY UNIT RCU-014 PSU-007 (Keyboard) For FAR-2137S-BB RCU-015 (Trackball) Control Unit RCU-016 (Remote) PROCESSOR UNIT RPU-013 Sub Display Alarm External Monitor...
  • Page 19 SYSTEM CONFIGURATION Console type RCN-001/RCN-002 FAR-2117/2127/2817/2827/2827W FAR-2137S/2837S/2837SW ANTENNA UNIT ANTENNA UNIT (Performance Monitor PM-51 built in) (Performance Monitor PM-31 built in) Waveguide Waveguide or (For FAR-2827W) Coax cable (For FAR-2837SW) TRANSCEIVER UNIT TRANSCEIVER UNIT RTR-081 RTR-082 For FAR-2827W For FAR-2837SW CONSOLE Alarm RCN-001/002...
  • Page 20 SYSTEM CONFIGURATION Console type RCN-003/RCN-004 FAR-2117/2127/2817/2827/2827W FAR-2137S/2837S/2837SW ANTENNA UNIT ANTENNA UNIT (Performance Monitor PM-51 built in) (Performance Monitor PM-31 built in) Waveguide Waveguide or (For FAR-2827W) Coax cable (For FAR-2837SW) TRANSCEIVER UNIT TRANSCEIVER UNIT RTR-081 RTR-082 For FAR-2827W For FAR-2837SW CONSOLE Alarm RCN-003/004...

  • Page 21: Specifications

    FURUNO FAR-21x7(-BB)/28x7 SERIES SPECIFICATIONS OF MARINE RADAR/ARPA FAR-21x7(-BB)/28x7 SERIES 1. ANTENNA RADIATORS 1. Type Slotted waveguide array 2. Beam width and sidelobe attenuation X-band S-band Radiator type XN12AF XN20AF XN24AF SN30AF SN36AF Length 4 ft 6.5 ft 8 ft 10 ft...

  • Page 22: Power Supply

    11. Parallel index line Choice of 2, 4 or 6 lines 12. AIS IMO SN Circ.217, IEC 60936-5 13. Chart cards FURUNO and NAVIONICS 4. INTERFACE 1. IEC 61162-1 Ed. 2 RSD, TTM, AIS related data, etc. 2. Compass Built-in interface (option) for sync signal (20-135 V, 50-400 Hz), or...

  • Page 23: Optional Equipment

    FURUNO FAR-21x7(-BB)/28x7 SERIES 4. Console 115/230 VAC, 1ø, 50/60 Hz, 440 VAC, 1ø, 50/60 Hz with optional transformer RU-1803 6. ENVIRONMENTAL CONDITIONS 1. Ambient temperature (Complies with IEC 60945) Indoor units -15°C to +55°C Antenna unit -25°C to +55°C (storage +70°C) 2.
  • Page 24 FURUNO FAR-21x7(-BB)/28x7 SERIES Precautions for high speed targets Assume your ship is making 40 kt and a target ship is approaching at 49 kt right toward you. Then the relative speed is 80 kt. With the antenna rotating at 42 rpm, the target blip appears jumping to a new location 59 m nearer.

  • Page 25: Radar Operation

    RADAR OPERATION Turning on the Power The [POWER] switch is located at the left corner of the control unit. Open the power switch cover and press the switch to turn on the radar system. To turn off the radar, press the switch again. The screen shows the bearing scale and digital timer approximately 30 seconds after power-on.
  • Page 26 1. RADAR OPERATION The radar is initially set to previously used range and pulse length. Other settings such as brilliance levels, VRMs, EBLs and menu option selections are also set to previous settings. The [STBY/TX] key (or TX STBY box) toggles the radar between STBY and TRANSMIT status.

  • Page 27: Control Unit

    1. RADAR OPERATION Control Unit Two types of control units are available: Control Unit RCU-014 (full keyboard) and Control Unit RCU-105 (palm control). EBL rotary control VRM rotary control Wheel Left button Right button A/C RAIN A/C SEA BRILL GAIN MODE OFFSET CU/TM...
  • Page 28 1. RADAR OPERATION Control description Control Description Control Unit RCU-014 (full keyboard) POWER Turns the system on and off. EBL and VRM rotary controls Adjust EBL and VRM, respectively. EBL ON, EBL OFF Turns the EBLs on and off, respectively. F1-F4 Execute menu short cut assigned.

  • Page 29: Main Menu

    1. RADAR OPERATION Main Menu You may access the MAIN menu from the full keyboard or by using the trackball. In later sections only the procedure for menu operation by trackball is given. Main menu operation by keyboard 1. Press the [MENU] key. The MAIN menu appears in the text area at the right side of the screen.
  • Page 30 1. RADAR OPERATION Main menu operation by trackball 1. Roll the trackball to choose the MENU box at the right side of the screen. The guidance box at the bottom right corner (see the illustration at the bottom of the next page for location) now reads “DISP MAIN MENU.” MENU Menu box 2.

  • Page 31: Operation Using The On-Screen Boxes

    1. RADAR OPERATION Operation Using the On-Screen Boxes All radar functions can be accessed by using the trackball alone. This is done by choosing the appropriate on-screen box with the trackball and operating the trackball module to choose item and option. (See paragraph 1.9 for location of all on-screen boxes.) On-screen boxes come in two varieties: Function selection and function selection w/pop-up menu.
  • Page 32 1. RADAR OPERATION Trackball marker location and guidance box indication The trackball marker is either a cursor (+) or an arrow ( ) depending on whether it is within or outside the display area, respectively. Further, the indication in the guidance box changes according to trackball marker location.
  • Page 33 1. RADAR OPERATION 3. The pop-up menu attached to the MARK box is the MARK menu. To open the menu, push the right button. The menu opens in the text area at the right side of the screen. [MARK MENU] 1 ORIGIN MARK STAB GND/SEA 2 MARK KIND...

  • Page 34: Cursor Menu

    1. RADAR OPERATION Cursor Menu Functions which require the use of the cursor, such as EBL offset and zoom, may be activated directly from the guidance box or from the CURSOR menu, either method with the cursor inside the effective display area. Below is the procedure for choosing a cursor-related function from the CURSOR menu.

  • Page 35: Monitor Brilliance

    1. RADAR OPERATION 6. The guidance box shows “XX / EXIT.” (XX = function chosen). Roll the trackball to place the cursor where desired. 7. Push the left button to execute the function selected at step 5. 8. To quit the function selected, push the right button when the guidance box shows “XX / EXIT.”...

  • Page 36: Choosing The Display Mode

    1. RADAR OPERATION Choosing the Display Mode This radar has two display modes: Radar and Radar + Plotter. Choose a display mode as below. Note that a display mode cannot be chosen when the menu is open. 1. Roll the trackball to place the arrow in the DISPLAY MODE box at the top of the screen.

  • Page 37: On-Screen Boxes And Markers

    1. RADAR OPERATION On-Screen Boxes and Markers Reference Point Box Trial Maneuver (Elapsed time shown when trial maneuver is active.) PICTURE Box, Main Picture Settings SET and DRIFT Boxes PULSELENGTH Box CURSOR DATA Box ANTENNA Box PRESENTATION MODE Box GAIN Setting RANGE Box A/C SEA Setting Note: Speed, Set and...
  • Page 38 1. RADAR OPERATION Heading is TRUE HDG " 242.2 ° (variation-corrected gyro or SPD " 9.9kt BT magnetic heading) 0.1kt Speed data is LOG, MAN, etc., ° 30.2 showing sensor and types. 10.2.2kt CSE when water tracking mode is " selected.

  • Page 39: Tuning The Receiver

    1. RADAR OPERATION 1.10 Tuning the Receiver 1.10.1 Choosing the tuning method The tuning method can be selected with the TUNE box at the top of the screen. 1. Roll the trackball to choose the TUNE box (TUNE AUTO or TUNE MAN) at the top of the screen.

  • Page 40: Automatic Tuning

    1. RADAR OPERATION 1.10.3 Automatic tuning Choose automatic tuning following paragraph 1.10.1. The TUNE box shows TUNE AUTO. 1.10.4 Manual tuning 1. Roll the trackball to choose the RANGE box at top left corner and then push the left or right button as appropriate to choose the 48-mile range. Push the left button to lower the range;...

  • Page 41: Aligning Heading With Gyrocompass

    However, if the GYRO readout looks wrong or the gyro alarm sounds, follow the procedure below. Note that the FURUNO SC-60/120 does not require alignment on the radar. 1. Roll the trackball to place the arrow in the HDG box at the top right corner of the screen.

  • Page 42: Presentation Modes

    1. RADAR OPERATION 1.12 Presentation Modes This radar has the following presentation modes: Relative Motion (RM) Head-up: Unstabilized Head-up TB: Head-up with compass-stabilized bearing scale (True Bearing) where the bearing scale rotates with the compass reading. Course-up: Compass-stabilized relative to ship’s orientation at the time of selecting course-up.

  • Page 43: Description Of Presentation Modes

    1. RADAR OPERATION 1.12.2 Description of presentation modes Head-up mode The head-up mode is a display in which the line connecting own ship and the top of the display indicates own ship’s heading. The target pips are painted at their measured distances and in their directions relative to own ship’s heading.
  • Page 44 1. RADAR OPERATION Head-up TB (True Bearing) mode Radar echoes are shown in the same way as in the head-up mode. The difference from normal head-up presentation lies in the orientation of the bearing scale. The bearing scale is heading sensor stabilized. That is, it rotates in accordance with the heading sensor signal, enabling you to know own ship’s heading at a glance.
  • Page 45 1. RADAR OPERATION True motion mode Own ship and other moving objects move in accordance with their true courses and speed. In ground stabilized TM, all fixed targets, such as landmasses, appear as stationary echoes. In the sea stabilized TM without set and drift inputs, the landmass can move on the screen.

  • Page 46: Entering Own Ship's Speed

    The ARP and azimuth stabilized presentation modes require own ship speed input and compass signal. The speed can be entered from a log (STW) or GPS (SOG) or manually on the menu. Note that FURUNO GPS Navigator GP-90 provides COG and SOG.

  • Page 47: Manual Speed Input

    1. RADAR OPERATION 1.13.2 Manual speed input If the speed log is not working, enter speed manually as below. In this case the speed data type is shown as MANUAL and is speed thru water (STW). Manual speed input is not available when the AIS feature is active. 1.

  • Page 48: Choosing The Range Scale

    1. RADAR OPERATION 1.14 Choosing the Range Scale The selected range scale, range ring interval and pulselength are shown at the upper left corner on the screen. When a target of interest comes closer, reduce the range scale so that it appears in 50-90% of the display radius. By keyboard Use the [RANGE] key to choose range desired.

  • Page 49: Choosing The Pulselength

    1. RADAR OPERATION 1.15 Choosing the Pulselength The pulselength in use is displayed at the upper-left position of the screen using the indications shown in the table below. Label and pulselength Indication Pulselength (µs) S1 (Short pulse 1) 0.07 S2 (Short pulse 2) 0.15 M1 (Medium pulse 1) M2 (Medium pulse 2)

  • Page 50: Choosing Pulselength

    1. RADAR OPERATION 3. Roll the wheel to choose 8 [PULSE] and then push the wheel. [PULSE MENU] 1 BACK 2 0.5NM S1/S2 3 0.75NM S1/S2/M1 4 1.5NM S1/S2/M1 5 3NM S2/M1/M2/M3 6 6NM M1/M2/M3/L 7 12-24NM M2/M3/L PULSE menu 4.

  • Page 51: Adjusting The Sensitivity

    1. RADAR OPERATION 1.16 Adjusting the Sensitivity The gain control adjusts the sensitivity of the receiver. The proper setting is such that the background noise is just visible on the screen. If you set up for too little sensitivity, weak echoes may be missed. On the other hand excessive sensitivity yields too much background noise;...

  • Page 52: Suppressing Sea Clutter

    1. RADAR OPERATION 1.17 Suppressing Sea Clutter Echoes from waves cover the central part of the display with random signals known as sea clutter. The higher the waves, and the higher the antenna above the water, the further the clutter will extend. When sea clutter masks the picture, suppress it by the A/C SEA control, either manually or automatically.

  • Page 53: Manual Adjustment Of A/C Sea

    1. RADAR OPERATION By trackball 1. Choose SEA AUTO following the procedure in paragraph 1.17.1. 2. Roll the trackball to place the arrow in the A/C SEA level indicator at the top of the display. 3. While observing the A/C SEA level indicator, roll the wheel downward to increase the A/C SEA or upward to decrease it.

  • Page 54: Suppressing Rain Clutter

    1. RADAR OPERATION 1.18 Suppressing Rain Clutter Use the AUTO RAIN and A/C RAIN to suppress rain clutter. AUTO RAIN suppresses rain clutter in the picture and A/C RAIN suppresses clutter picked up by the antenna. 1.18.1 Turning AUTO RAIN on or off 1.

  • Page 55: Adjusting A/C Rain

    1. RADAR OPERATION 1.18.2 Adjusting A/C RAIN The vertical beam width of the antenna is designed to see surface targets even when the ship is rolling. However, by this design the unit will also detect rain clutter (rain, snow, or hail) in the same manner as normal targets. The A/C RAIN control adjusts the receiver sensitivity as the A/C SEA control does but rather in a longer time period (longer range).

  • Page 56: Interference Rejector

    1. RADAR OPERATION 1.19 Interference Rejector Mutual radar interference may occur in the vicinity of another shipborne radar operating in the same frequency band. It is seen on the screen as a number of bright spikes either in irregular patterns or in the form of usually curved spoke-like dotted lines extending from the center to the edge of the picture.
  • Page 57 1. RADAR OPERATION 3. Roll the wheel to choose 1 INT REJECT and then push the wheel. 4. Roll the wheel to choose rejection level desired and then push the wheel or the left button. “3” provides the highest degree of suppression. 5.

  • Page 58: Measuring The Range

    1. RADAR OPERATION 1.20 Measuring the Range The range to a target may be measured three ways: with the fixed range rings, with the cursor, or with the VRM. Use the fixed range rings to obtain a rough estimate of the range to a target. They are the concentric solid circles about own ship, or the sweep origin.

  • Page 59: Measuring Range By The Variable Range Marker (Vrm)

    1. RADAR OPERATION 1.20.2 Measuring range by the variable range marker (VRM) There are two VRMs, No. 1 and No. 2, which appear as dashed rings so that you can discriminate them from the fixed range rings. The two VRMs can be distinguished from each other by different lengths of dashes.
  • Page 60 1. RADAR OPERATION 4. Roll the trackball (coarse adjustment) or wheel (fine adjustment) to align the active variable range marker with the inner edge of the target of interest and read its distance at the lower-right corner of the screen. Each VRM remains at the same geographical distance when you operate the [RANGE] key.

  • Page 61: Measuring The Bearing

    1. RADAR OPERATION 1.21 Measuring the Bearing Use the Electronic Bearing Lines (EBLs) to take bearings of targets. There are two EBLs, No. 1 and No. 2. Each EBL is a straight dashed line extending out from the own ship position up to the circumference of the radar picture. The fine dashed line is the No.
  • Page 62 1. RADAR OPERATION By trackball 1. Roll the trackball to place the arrow in the EBL1 or EBL2 box, whichever EBL you want to use. EBL1 EBL2 EBL boxes 2. The guidance box reads “EBL ON/.” Push the left button to turn on the EBL. The guidance box now reads “EBL SET L=DELETE /.”...

  • Page 63: Choosing True Or Relative Bearing

    1. RADAR OPERATION 1.21.2 Choosing true or relative bearing The EBL readout is affixed by “R.” (relative) if it is relative to own ship's heading, ”T.” (true) if it is referenced to the north. You may choose relative or true in the head-up modes;...

  • Page 64: Collision Assessment By Offset Ebl

    1. RADAR OPERATION 1.22 Collision Assessment by Offset EBL The origin of the EBL can be placed anywhere with the trackball to enable measurement of range and bearing between any targets. This function is also useful for assessment of the potential risk of collision. It is possible to read CPA (Closest Point of Approach) by using a VRM as shown below (Figure (a)).

  • Page 65: Choosing Point Of Reference For Origin Point Of Offset Ebl

    1. RADAR OPERATION No. 1 No. 1 ° >138.2 T< ° >150.3 T< >3.85NM< >3.85NM< VRM1 EBL1 EBL1 VRM1 Collision assessment by offset EBL 1.22.2 Choosing point of reference for origin point of offset EBL The origin point of the offset EBL can be ground stabilized (geographically fixed) or referenced to own ship’s heading (relative).

  • Page 66: Measuring Range And Bearing Between Two Targets

    1. RADAR OPERATION 1.23 Measuring Range and Bearing Between Two Targets By keyboard 1. Press the [EBL OFFSET] key. Operate the trackball to place the origin of the No. 1 EBL, for example, on a target of interest (target 1 in the illustrated example).

  • Page 67: Setting A Target Alarm

    1. RADAR OPERATION 1.24 Setting a Target Alarm The target alarm serves to alert the navigator to targets (ships, landmasses, etc.) entering a set area, with audible and visual alarms. CAUTION The guard alarm zone has a fixed width of 0.5 nm in the radial direction The alarm should not be relied upon as (depth) and is adjustable from 3.0 to the sole means for detecting possible...

  • Page 68: Acknowledging The Target Alarm

    1. RADAR OPERATION Note 1: If you wish to create a target alarm zone having a 360-degree coverage around own ship, set point “B” in almost the same direction as point “A.” Note 2: Two target alarm zones may be set. Note however that the 2 target alarm zone is available only when the 1 target alarm zone is active.

  • Page 69: Target Alarm Attributes

    1. RADAR OPERATION 1.24.4 Target alarm attributes You may choose the echo strength level which triggers the alarm, the condition which generates the target alarm and the volume of the audible alarm as follows: 1. Roll the trackball to choose the MENU box at the right side of the screen and then push the left button.

  • Page 70: Off-Centering The Display

    1. RADAR OPERATION 1.25 Off-Centering the Display Own ship position, or sweep origin, can be displaced to expand the view field without switching to a larger range scale. The sweep origin can be off-centered to the cursor position, but not more than 75% of the range in use; if the cursor is set beyond 75% of the range scale, the sweep origin will be off-centered to the point of 75% of the limit.

  • Page 71: Echo Stretch

    1. RADAR OPERATION 1.26 Echo Stretch The echo stretch feature enlarges targets to make them easier to see, and it is available on the 1.5 -12 nm ranges depending on echo stretch type. There are 3 settings: ES1 to enlarge in bearing direction for long range detection, ES2 to enlarge in range direction and ES3 to enlarge in bearing and range directions.

  • Page 72: Echo Averaging

    1. RADAR OPERATION 1.27 Echo Averaging The echo average feature effectively suppresses sea clutter. Echoes received from stable targets such as ships appear on the screen at almost the same position every rotation of the antenna. On the other hand, unstable echoes such as sea clutter appear at random positions.

  • Page 73: Target Trails

    1. RADAR OPERATION 1.28 Target Trails The trails of the radar echoes of targets may be displayed in the form of synthetic afterglow. Target trails are chosen either relative or true and may be sea or ground stabilized. True motion trails require a compass signal and own ship speed input.

  • Page 74: Trail Time

    1. RADAR OPERATION 2. Roll the wheel to choose 1 TRAIL MODE and then push the wheel. 3. Roll the wheel to choose TRUE or REL appropriate and then push the wheel or the left button. 4. Push the right button to close the menu. Note: “TRUE TRAIL”...

  • Page 75: Resetting Target Trails

    1. RADAR OPERATION 1.28.4 Resetting target trails You may clear all target trails to restart the trail process. Target trails are cleared and the trailing process restarts from time count zero at the current target trail plot interval. 1. Roll the trackball to place the arrow on the TRAIL MODE box at the bottom right corner of the screen.

  • Page 76: Trail Level

    1. RADAR OPERATION 1.28.6 Trail level The level (intensity) of the afterglow which extends from radar targets may be chosen as below. 1. Roll the trackball to place the arrow on the TRAIL MODE box at the bottom right corner of the screen. 2.

  • Page 77: Parallel Index Lines

    1. RADAR OPERATION 1.29 Parallel Index Lines Parallel index lines are useful for keeping a constant distance between own ship and a coastline or a partner ship when navigating. Two index lines are available and any two may be displayed. You may control the orientation and line interval. Index lines Parallel index lines...

  • Page 78: Adjusting Index Line Orientation, Index Line Interval

    1. RADAR OPERATION 1.29.2 Adjusting index line orientation, index line interval 1. Display the index line for which you want to adjust its orientation, referring to paragraph 1.29.1. IL 1 2. Roll the trackball to place the arrow in the Index line orientation 032.0°T index line orientation setting window,...

  • Page 79: Choosing Maximum Number Of Index Lines To Display

    1. RADAR OPERATION 1.29.4 Choosing maximum number of index lines to display The maximum number of index lines to display may be chosen from 2, 3 or 6 lines as below. The actual number of lines visible may be less depending on line interval.

  • Page 80: Origin Mark

    1. RADAR OPERATION 1.30 Origin Mark You can mark any prominent target or a point of particular interest using the origin mark feature. Twenty origin marks may be entered: 10 standard origin marks (with number) and one each of the 10 symbol origin marks. The marks may be geographically fixed (ground stabilized) or sea stabilized.
  • Page 81 1. RADAR OPERATION 7. With the cursor choosing the MARK box, roll the wheel to choose mark number desired (“ORIGIN MARK(No.)” chosen at step 4) or origin mark symbol (“ORIGIN MARK(SYM)” chosen at step 4) and then push the left button.

  • Page 82: Origin Mark Stabilization

    1. RADAR OPERATION 1.30.2 Origin mark stabilization Origin marks may be geographically fixed (ground stabilized) or moving (sea stabilized). 1. Roll the trackball to choose the MARK box. 2. Push the right button to open the MARK menu. [MARK MENU] 1 ORIGIN MARK STAB GND/SEA 2 MARK KIND...

  • Page 83: Zoom

    1. RADAR OPERATION 1.31 Zoom The zoom function enlarges an area of interest as large as twice the normal viewing size, in the text window. To use the zoom display, it must be turned on in the DATA BOX menu. For further details, see paragraph 1.41. Zoom is not available when the ARP target data setting is “LARGE”...

  • Page 84: Markers

    1. RADAR OPERATION 1.32 Markers 1.32.1 Heading marker and heading line The heading marker and the heading line indicate the ship's heading in all presentation modes. The heading line is a line from the own ship position to the outer edge of the radar display area and appears at zero degrees on the bearing scale in head-up mode;...

  • Page 85: Own Ship Symbol

    1. RADAR OPERATION 1.32.4 Own ship symbol The own ship symbol ( ) can be displayed or erased on the MARK menu. This symbol is scaled to indicate the length and beam of the vessel. If the largest dimension of the symbol gets smaller than 6 mm, the symbol will disappear and own ship will be represented with a small dot or circle depending on the range in use.

  • Page 86: Automatic Picture Setup According To Navigation Purpose

    1. RADAR OPERATION 1.33 Automatic Picture Setup According to Navigation Purpose Every time your navigating environment or task changes, you must adjust the radar, which can be a nuisance in a busy situation. Instead of changing radar settings case by case, it is possible to assign the function keys to provide optimum settings for often encountered situations.

  • Page 87: Choosing A Picture Setup Option

    1. RADAR OPERATION Picture setup options and default settings 1 INT 2 ECHO 3 ECHO 4 NOISE 5 AUTO 6 AUTO 7 VIDEO REJECT STRETCH AVERAGE RAIN CONTRAST PICTURE 1 PICTURE 2 PICTURE 3 PICTURE 4 NEAR NEAR BUOY FAR BUOY ROUGH SEA SHIP HARBOR...

  • Page 88: Restoring Default Picture Setup Options

    1. RADAR OPERATION 1.33.2 Restoring default picture setup options Any of the radar functions programmed with the picture setup options may be adjusted as desired. If you get lost in operation and want to restore the default settings for a particular picture setup operation, do the following: 1.

  • Page 89: User-Programmable Picture Setups

    1. RADAR OPERATION 1.33.3 User-programmable picture setups Four user-programmable picture setups are provided and they are labeled PICTURE 1 – PICTURE 4 in the PICTURE box. You may program them as below. 1. Roll the trackball to choose the PICTURE box at the left side of the screen. 2.
  • Page 90 1. RADAR OPERATION PICTURE level 5 db 7 db * Default 9 db 11 db VIDEO SIGNAL level Video contrast settings 7. Roll the wheel to choose 9 [CONDITION] and then push the wheel to show the CONDITION menu. [CONDITION MENU] 1 BACK 2 SEA CONDITION 1/2/3/4/5...

  • Page 91: Programming Function Keys

    1. RADAR OPERATION 1.34 Programming Function Keys Less-often used functions are provided in the menu. To avoid opening the menus to set up the radar for a particular situation, function keys F1-F4 may be assigned any of the functions shown in the CUSTOMIZE•TEST sub menu. 1.34.1 Activating a function key To activate the function assigned to a function key, press the key to instantly set...
  • Page 92 1. RADAR OPERATION 4. Roll the wheel to choose appropriate category, ECHO, STD KEY, ARP•AIS or OPERATION and then push the wheel or the left button. Refer to the menus below to choose appropriate category. [ECHO] [STD KEY] 1 BACK 1 BACK PICTURE/ ALARM ACK/...
  • Page 93 1. RADAR OPERATION 5. Roll the wheel to choose “2” and then push the wheel or the left button. 6. Roll the wheel to choose function desired and then push the wheel or left button. 7. Push the right button twice to close the menu. Description of function key programs Item Description...
  • Page 94 1. RADAR OPERATION Description of function key programs (con’t) Item Description [ARP•AIS] DISP ARP Activates/deactivates ARP. DISP AIS Activates/deactivates AIS. TARGET DATA & ACQ ARP: Acquires ARP target; shows data for ARP target selected. AIS: Activates sleeping AIS target; shows data for AIS target selected.

  • Page 95: Ship's Position

    1. RADAR OPERATION 1.35 Ship’s Position Choose the source of ship’s position data as follows: 1. Roll the trackball to choose the OS POSN box at the top right corner of the screen. " OS POSN OS POSN box 2. Push the right button to show the OS POSN menu. [OS POSN MENU] 1 NAV AID GPS1/GPS2/...

  • Page 96: Noise Rejector

    1. RADAR OPERATION 1.36 Noise Rejector White noise may show itself on the screen as random “speckles” spread over the entire radar image. You can remove this noise as follows: 1. Roll the trackball to choose the PICTURE box at the left side of the screen. 2.

  • Page 97: Suppressing Second-Trace Echoes

    1. RADAR OPERATION 1.37 Suppressing Second-trace Echoes In certain situations, echoes from very distance targets may appear as false echoes (second-trace echoes) on the screen. This occurs when the return echo is received one transmission cycle later, or after a next radar pulse has been transmitted.

  • Page 98: Adjusting Brilliance Of Screen Data

    1. RADAR OPERATION 1.38 Adjusting Brilliance of Screen Data You can adjust relative brilliance levels of various markers and alphanumeric readouts displayed on the screen. 1. Roll the trackball to choose the BRILL box at the bottom left corner of the screen and then push the right button to show the BRILL menu.

  • Page 99: Watch Alarm

    1. RADAR OPERATION 1.39 Watch Alarm The watch alarm sounds the audible alarm at the chosen time interval to help you keep regular watch of the radar picture for safety or other purposes. The WATCH box appears at the lower-left corner of the screen with a watch alarm timer counts down from value set (for example, “12:00”).

  • Page 100: Setting Up Nav Data

    1. RADAR OPERATION 1.40 Setting Up Nav Data Wind, depth, ocean current, water temperature, date and time and waypoint data may be set up as follows: 1. Roll the trackball to choose the MENU box at the right side of the screen and then push the left button.
  • Page 101 1. RADAR OPERATION Nav data menu description Item Description 2 DEPTH Chooses unit of depth measurement, or turn depth indication off. 3 DEPTH GRAPH SCALE Chooses depth scale range. The echogram shows the last 30 minutes of sounding along the ship’s track. 4 DEPTH MARK Chooses the depth at which to show the depth mark.

  • Page 102: Text Window Setup

    1. RADAR OPERATION 1.41 Text Window Setup The text window, displayed at the right 1/4 of the screen, mainly shows nav data, zoomed target, and ARP target data. You can set up this window as follows: 1. Roll the trackball to choose the MENU box at the right side of the screen and then push the left button.
  • Page 103 1. RADAR OPERATION 10. Roll the wheel to choose zoom display format and then push the wheel or the left button. REL: Zoom display moves in relative motion STAB: Zoom display is ground stabilized (geographically fixed) ACQ: Zoom ARP targets 11.

  • Page 104: Customizing Operation

    1. RADAR OPERATION 1.42 Customizing Operation Several operation items may be customized to suit your needs. 1. Roll the trackball to choose the MENU box at the right side of the screen and then push the left button. 2. Roll the wheel to choose 9 [CUSTOMIZE•TEST] and then push the wheel or the left button to open the CUSTOMIZE•TEST menu.
  • Page 105 1. RADAR OPERATION Operation menu items Item No. Description Options 2 WHEEL DRIVE Choose how to cycle data when NORMAL: Cycles numeral using the wheel. data in numeric order and indication data in clockwise order. REVERSE: Reverse of NORMAL. 3 KEY BEEP Key beeps when key sequence OFF: No key beep (Non-IMO type...

  • Page 106: Alarms

    1. RADAR OPERATION 1.43 Alarms When error is detected, the appropriate alarm indication appears (in red) and the audible alarm sounds. Silence the audible alarm with the [ALARM ACK] key or choose the ALARM ACK box and then push the left button. The error indication remains on the display until the reason for the alarm is removed.
  • Page 107 1. RADAR OPERATION Alarm description (con’t from previous page) Warning Audible Visual alarm To quit alarm status alarm EPFS Continuous EPFS in red (EPFS: electronic To silence the beep and failure beep position-fixing system) in the erase the message, press warning and indication cell.

  • Page 108: Outputting Alarm Signal

    1. RADAR OPERATION 1.43.2 Outputting alarm signal Four ports are provided from which to output alarm signals to external equipment. Choose the port and alarm signals to output as follows: 1. Roll the trackball to choose the MENU box and then push the left button. 2.

  • Page 109: Choosing The Antenna, Displaying Antenna Information

    1. RADAR OPERATION 1.44 Choosing the Antenna, Displaying Antenna Information This radar’s interswitch uses an Ethernet to exchange video and control signals and actual interswitching is done with a digitized signal. Max. 4 antennas may be selected from the menu. 1.44.1 Choosing the antenna For the ship which carries multiple antennas you may choose the antenna to use...

  • Page 110: Displaying Antenna Information

    1. RADAR OPERATION 1.44.2 Displaying antenna information The antenna information display shows data (radar band, model and position) on the radar antennas currently powered. If an antenna is not powered, its data area is blank. 1. Roll the trackball to place the arrow in the ANTENNA box at the left side of the screen.

  • Page 111: Cursor Data

    1. RADAR OPERATION 1.45 Cursor Data Cursor data can be shown in range and bearing from own ship, latitude and longitude position or cursor’s X-Y coordinates. 1. Roll the trackball to choose the CURSOR DATA box at the right side of the display.

  • Page 112: Performance Monitor

    1. RADAR OPERATION 1.46 Performance Monitor A performance monitor is required for a radar installed on vessels of 300 GT and upward engaged in international voyages. Two units are available: X-band radar: PM-31 (9410 ± 45 MHz) S-band radar: PM-51 (3050 ± 30 MHz). The performance monitor is incorporated in the antenna unit.
  • Page 113 1. RADAR OPERATION The range scale is automatically set to 24 nm. The radar screen will show on or two arcs. If the radar transmitter and receiver are in good working conditions in as much as the original state when the monitor was turned up, the innermost are should appear at 16 nm.

  • Page 114: Wiper

    1. RADAR OPERATION 1.47 Wiper The wiper feature automatically changes the brilliance of weak signals to facilitate picture observation, and its affect depends on the wiper setting used and whether each averaging is turned on or off. Condition 1: Wiper setting “1” or “2”, Echo averaging OFF The brilliance of weak signals such as noise, sea clutter and rain clutter is reduced to clear the picture of those unwanted echoes.

  • Page 115: Own Ship Symbol

    1. RADAR OPERATION 1.48 Own Ship Symbol Own ship symbol ( ) may be inscribed on the screen as below. You may enter ten such symbols. Each own ship symbols is shown with a number. 1. Roll the trackball to choose the MARK box at the left side of the screen. The guidance box now reads “MARK SELECT / MARK MENU.”...

  • Page 116: Color And Brilliance Sets

    1. RADAR OPERATION 1.49 Color and Brilliance Sets This radar provides four sets of color and brilliance sets to match any ambient lighting condition. The default colors are as shown in the table below. The default brilliance setting for any item is “50%”. BRILL1 BRILL2 BRILL3...
  • Page 117 1. RADAR OPERATION 5. Roll the wheel to choose 2 BKGD COLOR and then push the wheel or the left button. 6. Roll the wheel to choose background color and surrounding color combination desired and then push the wheel or the left button. 7.

  • Page 118: Reference Point For Cpa/Tcpa

    1. RADAR OPERATION 1.50 Reference Point for CPA/TCPA The common reference point for CPA/TCPA can be chosen from antenna position or conning position as shown below. Echo sweep center and sector blanking symbol are always referenced to antenna position regardless of reference point chosen.

  • Page 119: Switching Hub Hb-100 (Option)

    1. RADAR OPERATION 1.51 Switching Hub HB-100 (option) The HB-100 provides switching for a card interface unit and multiple processor units (max. 7), using an Ethernet interface (100BASE-TX/10BASE-T). LEDs display link/activity, mode (full-duplex or half-duplex) and collision statuses. No operation is required of the user. Simply turn on the HUB-100’s AC power source to power it.
  • Page 120 1. RADAR OPERATION (This page intentionally left blank.) 1-96...

  • Page 121: Radar Observation

    RADAR OBSERVATION General 2.1.1 Minimum and maximum ranges Minimum range The minimum range is defined by the shortest distance at which, using a scale of 1.5 or 0.75 nm, a target having an echoing area of 10 m is still shown separate from the point representing the antenna position.
  • Page 122 This is determined by pulselength only. Practically, a 0.08 microsecond pulse offers the discrimination better than 35 m as do so with all FURUNO radars. Test targets for determining the range and bearing resolution are radar reflectors...

  • Page 123: False Echoes

    2. RADAR OBSERVATION False Echoes Occasionally echo signals appear on the screen at positions where there is no target or disappear even if there are targets. They are, however, recognized if you understand the reason why they are displayed. Typical false echoes are shown below.
  • Page 124 2. RADAR OBSERVATION Virtual image A relatively large target close to your ship may be represented at two positions on the screen. One of them is the true echo directly reflected by the target and the other is a false echo which is caused by the mirror effect of a large object on or close to your ship as shown in the figure below.

  • Page 125: Sart (Search And Rescue Transponder)

    2. RADAR OBSERVATION SART (Search and Rescue Transponder) 2.3.1 SART description A Search and Rescue Transponder (SART) may be triggered by any X-Band (3 cm) radar within a range of approximately 8 nm. Each radar pulse received causes it to transmit a response which is swept repetitively across the complete radar frequency band.

  • Page 126: Showing Sart Marks On The Radar Display

    2. RADAR OBSERVATION 2.3.2 Showing SART marks on the radar display This radar is equipped with a feature which optimally sets up the radar for SART detection. This feature automatically detunes the radar receiver out of its best tuning condition. This erases or weakens all normal radar echoes, but the SART marks are not erased because the SART response signal scans over all frequencies in the 9 GHz band.

  • Page 127: General Remarks On Receiving Sart

    2. RADAR OBSERVATION 2.3.3 General remarks on receiving SART SART range errors When responses from only the 12 low frequency sweeps are visible (when the SART is at a range greater than about 1 nm), the position at which the first dot is displayed may be as much as 0.64 nm beyond the true position of the SART.

  • Page 128: Racon

    2. RADAR OBSERVATION RACON A RACON is a radar beacon which emits radar receivable signals in the radar frequency spectrum (X- or S-band). There are several signal formats; in general, the RACON signal appears on the radar screen as a rectangular echo originating at a point just beyond the position of the radar beacon.

  • Page 129: Arp Operation

    ARP OPERATION Usage Precautions This function is designed to meet the IMO requirements of both ARPA and ATA, and the desired function is selected during the installation of the equipment. For sake of brevity, this manual uses “ARP” when referring to ARPA or ATA.

  • Page 130: Controls For Arp

    3. ARP OPERATION Controls for ARP Keyboard The ARP uses the keys shown below. BRILL A/C RAIN A/C SEA GAIN MODE OFFSET CU/TM INDEX MENU CENTER RESET LINE TARGET VECTOR VECTOR TARGET DATA TIME MODE LIST RANGE ENTER TARGET ALARM STBY CANCEL CANCEL...

  • Page 131: Activating, Deactivating Arp

    3. ARP OPERATION Activating, Deactivating ARP To activate or deactivate the ARP: 1. Roll the trackball to place the arrow in the ARP ACQ MODE box at the right side of the display. (Note that “ATA” replaces “ARPA” when the ATA feature is used.) "...
  • Page 132 3. ARP OPERATION 4. Push the left button to enter the reference mark. (The mark may also be entered by pressing the [ENTER MARK] key on the full keyboard.) The reference target mark (see below) appears at the cursor position and the own ship position data label changes from “LOG,”...

  • Page 133: Automatic Acquisition

    3. ARP OPERATION Automatic Acquisition The FAR-2xx7 radars can acquire a maximum of 100 targets, the number of automatically and manually acquired targets determined by the ARP TGT menu setting. ARP TGT menu setting and target acquisition condition Menu Setting Acquisition condition MANUAL100 100 targets manually...

  • Page 134: Terminating Tracking Of Targets (Including Reference Targets)

    3. ARP OPERATION 3.5.2 Terminating tracking of targets (including reference targets) When the ARP has acquired the menu-set number of targets automatically, the message “TARGET-FULL(AUTO)” appears at the right side of the screen and no more auto acquisition occurs unless targets are lost. Should this happen, cancel tracking of less important targets or perform manual acquisition.

  • Page 135: Manual Acquisition

    3. ARP OPERATION Manual Acquisition Maximum 100 targets may be acquired manually depending on the acquisition condition set on the ARP TGT menu. 3.6.1 Setting manual acquisition conditions 1. Roll the trackball to place the arrow in the ARP ACQ MODE box at the right side of the screen and then push the right button to show the ARP TARGET menu.
  • Page 136 3. ARP OPERATION The plotting symbol is drawn by broken lines during the initial acquisition stage. A vector appears in about one minute after acquisition indicating the target's motion trend. If the target is consistently detected for three minutes, the plotting symbol changes to a solid circle.

  • Page 137: Arp Symbols And Arp Symbol Attributes

    3. ARP OPERATION ARP Symbols and ARP Symbol Attributes 3.7.1 ARP symbols The symbols used in this equipment comply with IEC 60872-1. Item Symbol Status Remarks Automatically Initial stage Broken square around an echo to indicate the target under acquisition and initial acquired targets stage of tracking, before steady-state tracking.

  • Page 138: Arp Symbol Brilliance

    3. ARP OPERATION Other ARP symbols Item Symbol Status Remarks Trial maneuver Bottom center Appears during execution of a trial maneuver. (flashing) Performance Bottom center Appears during performance test. test (flashing) 3.7.2 ARP symbol brilliance 1. Roll the trackball to choose the BRILL box at the left side of the screen and then push the right button.

  • Page 139: Arp Symbol Color And Size

    3. ARP OPERATION 3.7.3 ARP symbol color and size You may choose the color and size of the ARP symbol as follows: 1. Roll the trackball to choose the MENU box at the right side of the screen and then push the left button. 2.

  • Page 140: Displaying Target Data

    3. ARP OPERATION Displaying Target Data The ARP mode provides the full functionality of ARP as required by the IMO Resolution A.823(19) and IEC 60972-1, including display of range, bearing, course, speed, CPA and TCPA of all plotted targets. In head-up and head-up true bearing modes, target bearing, course and speed shown in the upper-right target data field become true (suffix “T”) or relative (suffix “R”) to own ship in accordance with the true/relative vector setting.
  • Page 141 3. ARP OPERATION Target in guard zone Target selected for data readout Target on colllision course ARP TARGET No. 01 BRG 25.5°T RNG 3.4NM T COG 205.1°T T SOG 12.3KT CPA 2.9NM T CPA 12.2MIN BCR 1.7NM BCT 20MIN BRG: Bearing from own ship to target in R (Relative) or T (True) RNG: Range from own ship to target COG: Course of target over ground, True or Relative...

  • Page 142: Target List

    3. ARP OPERATION 3.8.2 Target list The target list provides a comprehensive data display of all ARP (and AIS) targets being tracked. Displaying the target list To display the target list, do the following: 1. Roll the trackball to choose the TARGET LIST box at the right side of the screen.
  • Page 143 3. ARP OPERATION Sorting the target list You may sort the target list by CPA, TCPA, BCR, BCT, RANGE or SPEED as follows: 72 nm or 96 nm range scale 1. Roll the trackball to choose the TARGET LIST box at the right side of the screen.

  • Page 144: Vector Modes

    3. ARP OPERATION Vector Modes Target vectors can be displayed relative to own ship's heading (Relative) or north (True). 3.9.1 Description of vectors Ground stabilization and sea stabilization Target vectors can be ground stabilized or sea stabilized. Sea stabilization is a mode where own ship and all targets are referenced to the sea using a compass heading and single axis log water speed inputs in the True Motion mode.

  • Page 145: Vector Motion And Length

    3. ARP OPERATION 3.9.2 Vector motion and length Vectors may be displayed in true or relative motion. Vector time (or the length of vectors) can be set to 30 seconds, 1, 2, 3, 6, 12, 15 or 30 minutes. By keyboard 1.

  • Page 146: Past Position Display

    3. ARP OPERATION 3.10 Past Position Display The ARP displays equally time-spaced dots marking the past positions of any targets being tracked. A new dot is added every minute (or at other preset time intervals) until the preset number is reached. If a target changes its speed, the spacing will be uneven.

  • Page 147: Past Position Display Attributes

    3. ARP OPERATION 3.10.2 Past position display attributes You may choose the number of past point points to display per plotting interval and the color of past position points. 1. Roll the trackball to choose the MENU box at the right side of the screen and then push the left button.

  • Page 148: Set And Drift

    3. ARP OPERATION 3.11 Set and Drift Set, the direction in which a water current flows, can be manually entered in 0.1-degree steps. Drift, in another word Rate, the speed of tide, can also be entered manually in 0.1 knot steps. Set and drift corrections are beneficial for increasing the accuracy of vectors and target data.

  • Page 149: Setting Cpa/Tcpa Alarm Ranges

    3. ARP OPERATION 3.12 Setting CPA/TCPA Alarm Ranges The ARP continuously monitors the CAUTION predicted range at the Closest Point of Approach (CPA) and predicted time to CPA/TCPA Alarm CPA (TCPA) of each tracked target to The CPA and TCPA alarm feature should own ship.

  • Page 150: Acknowledging Cpa/Tcpa Alarm

    3. ARP OPERATION 3.12.2 Acknowledging CPA/TCPA alarm To acknowledge and silence the CPA/TCPA alarm, press the [ALARM ACK] key on the keyboard, or choose the ALARM ACK box with the trackball and then push the left button. The warning label COLLISION and the flashing of the triangle plotting symbol and vector remain on the screen until the dangerous situation is gone or you intentionally terminate tracking of the target.

  • Page 151: Setting A Guard Zone

    3. ARP OPERATION 3.13 Setting a Guard Zone When a target transits the operator-set guard zone, the buzzer sounds and the indication GUARD appears (in red) at the screen bottom. The target causing the warning is clearly indicated with an inverted flashing triangle. The guard zone also functions as an automatic acquisition area when automatic acquisition is active.

  • Page 152: Sleeping, Deactivating A Guard Zone

    3. ARP OPERATION When an ARP or AIS target violates the guard zone, the message “GUARD” appears (in red) at the right side of the display and the offending target is marked with an inverted triangle. Further, the AIS display is automatically turned Note 1: If you wish to create a guard zone having a 360-degree coverage around own ship, set point B in almost the same direction (approx.

  • Page 153: Guard Zone Reference

    3. ARP OPERATION 3.13.4 Guard zone reference The guard zone may be referenced to heading or North as follows: 1. Roll the trackball to choose the MENU box at the right side of the screen and then push the left button. 2.

  • Page 154: Operational Warnings

    3. ARP OPERATION 3.14 Operational Warnings There are six main situations which cause the ARP to trigger visual and audible alarms: Collision alarm Guard zone alarm Lost target alarm Target full alarm for manual acquisition Target full alarm for automatic acquisition System failure Collision (CPA/TCPA) alarm Visual (COLLISION) and audible alarms are generated a target falls with a...
  • Page 155 3. ARP OPERATION Automatically acquired targets The indication “TARGET-FULL(AUTO)” appears at the screen bottom and a short beep sounds when the capacity for automatically acquired targets, as set on the menu, is reached. System failure alarm When the SPU Board receives no signal input from the radar or external equipment, the screen shows both “ARP SYSTEM ERROR”...

  • Page 156: Trial Maneuver

    3. ARP OPERATION 3.15 Trial Maneuver The trial maneuver feature simulates the effect on all tracked targets against own ship's maneuver without interrupting the updating of target information. It is available for use with the ARPA function; it is inoperative on the ATA. 3.15.1 Types of trial maneuvers There are two types of trial maneuvers: static and dynamic.

  • Page 157: Performing A Trial Maneuver

    3. ARP OPERATION Static trial maneuver A static trial maneuver displays only the final situation of the simulation. If you enter the same trial speed, course and delay time under the same situation as in the aforementioned example of dynamic trial maneuver, the screen will instantly show position OS7 for own ship, position A7 for target A and position B7 for target B, omitting the intermediate positions.
  • Page 158 3. ARP OPERATION 3. Roll the wheel to choose 4 TRIAL MANEUVER and then push the wheel or the left button. [TRIAL MANEUVER] 1 BACK 2 TRIAL OFF/STATIC/DYNAMIC 3 TRIAL SPEED RATE 0.00kt/s 0.00kt/s 4 TRIAL TURN RATE 0.0°/s 0.0°/s TRIAL MANEUVER menu 4.

  • Page 159: Terminating A Trial Maneuver

    3. ARP OPERATION 11. Roll the wheel to choose the course setting box. Use the wheel to set the course: Roll the wheel to choose location; push the wheel to set. 12. Roll the wheel to choose the speed setting box. Use the wheel to set the speed: Roll the wheel to choose location;...

  • Page 160: Arp Performance Test

    3. ARP OPERATION 3.16 ARP Performance Test A test program is provided for assessing overall performance of the ARP. Normal operation is suspended and the indication “XX” appears at the bottom of the effective display area during the test. The test may be terminated at any time. 1.
  • Page 161 3. ARP OPERATION 5. Roll the wheel to choose 2 ARP TEST START and then push the wheel or the left button to start the test. An alert “XX” flickers during the test. It takes approximately three minutes for all vectors to be displayed. The test does not need echo signals, gyro nor speed log input.

  • Page 162: Criteria For Selecting Targets For Tracking

    International Marine Organization Automatic Radar Plotting Aid (IMO ARP) requirements, an indication of the motion trend should be available within 20 scans of antenna and full vector accuracy within 60 scans. The FURUNO ARPs comply with these requirements. Acquisition and tracking A target which is hit by five consecutive radar pulses is detected as a radar echo.
  • Page 163 This process is updated continually for each target on every scan of the radar. Qualitative description of tracking error The FURUNO ARP accuracy complies with or exceed IMO standards. Own ship maneuvers For slow turns there is no effect. For very high turning rates (greater than 150°/minute, depending on gyro), there is some influence on all tracked targets...

  • Page 164: Factors Affecting Arp Functions

    3. ARP OPERATION 3.18 Factors Affecting ARP Functions Sea returns If the radar anti-clutter control is adjusted properly, there is no serious effect because distant wave clutter, not eliminated by this control, is filtered out by more than one bang correlation and scan-to-scan matching of data. Rain and snow Clutter can be acquired and tracked as targets.
  • Page 165 3. ARP OPERATION Blind and shadow sectors Radar shadow or blind areas caused by obstructions aboard ship, for example, funnels and masts, in the path of the radar beam can result in reduction of radar beam intensity in that particular direction. This may eliminate the detection of some targets.
  • Page 166 3. ARP OPERATION (This page intentionally left blank.) 3-38...

  • Page 167: Ais Operation

    The FURUNO AIS (Automatic Identification System) model FA-100 exchanges with other AIS-fitted ships all data and information required by the SOLAS 1994 as amended. However, they are displayed in text form. By interfacing the FA-100 with this radar, the AIS information is graphically indicated together with the radar and ARP information.

  • Page 168: Enabling/Disabling The Ais

    4. AIS OPERATION Enabling/Disabling the AIS 1. Roll the trackball to choose the MENU box at the right side of the screen and then push the left button. 2. Roll the wheel to choose 4 ARP•AIS and then push the wheel or the left button.

  • Page 169: Turning Ais Display On/Off

    4. AIS OPERATION Turning AIS Display On/Off 1. Roll the trackball to choose the AIS DISP box at the right side of the screen. " DISP AIS DISP box 2. Push the left button to display AIS ON or AIS OFF as appropriate. ON: All targets received from the AIS transponder are displayed with symbols.

  • Page 170: Setting Up For A Voyage

    4. AIS OPERATION Setting Up for a Voyage There are five items on the VOYAGE DATA menu you will need to enter at the start of a voyage: navigational status, ETA, destination, draught and crew. 1. Roll the trackball to choose the AIS DISP box at the right side of the screen. 2.
  • Page 171 4. AIS OPERATION 5. Roll the wheel to choose appropriate navigation status number referring to the information below. Push the wheel. Underway using engine (default) At anchor Not under command Restricted maneuverability Constrained by draught Moored Aground Engaged in fishing Underway by sailing Reserved for high speed craft (HSC) Reserved for wing in ground (WIG, for example, hydrofoil)

  • Page 172: Activating Targets

    4. AIS OPERATION Activating Targets When you convert a sleeping target to an activated target, that target’s course and speed are shown with a vector. You can easily judge target movement by monitoring the vector. 4.5.1 Activating specific target By keyboard 1.

  • Page 173: Sleeping Targets

    4. AIS OPERATION Sleeping Targets 4.6.1 Sleeping an AIS target You may “sleep” an AIS target as below when the screen becomes filled with targets which might prevent important radar and AIS displays from being identified. Note that targets that have been activated automatically cannot be “slept.”...

  • Page 174: Displaying Target Data

    AIS data is shown in the AIS data box when the target is correctly selected. Ship name is shown near the target. If this data is not available, MMSI no. appears. Activated target selected for data display AIS TARGET NAME FURUNO Bearing to target BRG 208.6°T HDG Range to target Heading RNG 12.3NM...

  • Page 175: Detailed Target Data

    4. AIS OPERATION 4.7.2 Detailed target data 1. Roll the trackball to place the cursor on the desired AIS target in the data box at the right side of the screen. 2. Push the left button to show detailed data. [EXPANDED DATA] NAME: Ship’s name...

  • Page 176: Ais Symbol Attributes

    4. AIS OPERATION AIS Symbol Attributes You may adjust the brilliance and choose the size and color of the AIS symbol. 4.8.1 AIS symbol brilliance 1. Roll the trackball to choose the BRILL box at the left side of the screen and then push the right button.

  • Page 177: Ais Symbol Size And Color

    4. AIS OPERATION 4.8.2 AIS symbol size and color You may choose the size and color of the AIS symbol as follows: 1. Roll the trackball to choose the MENU box and then push the left button. 2. Roll the wheel to choose 4 [ARPA•AIS] and then push the wheel or the left button.

  • Page 178: Plot Interval

    4. AIS OPERATION Past Position Display The past position display shows equally time-spaced dots marking past positions of activated AIS targets. A new dot is added at preset time intervals until the preset number is reached. If a target changes its speed, the spacing will be uneven.

  • Page 179: Past Position Display Attributes

    4. AIS OPERATION 4.9.2 Past position display attributes You may choose the number of past position points to show per plot interval and the color of past position points. 1. Roll the trackball to choose the MENU box and then push the left button. 2.

  • Page 180: Lost Target

    4. AIS OPERATION 4.10 Lost Target A target is declared a lost target when it fails to produce data for six minutes or five reporting intervals, whichever is the shorter. When this occurs, the target is marked with the (flashing) lost target symbol and the indication “LOST” appears. To acknowledge a lost target, press the [ALARM ACK] key or roll the trackball to choose the ALARM ACK box and then push the left button.

  • Page 181: Rot Setting

    4. AIS OPERATION 4.11 ROT Setting You may set the lower limit of the ROT (Rate Of Turn) at which the heading line on target symbols will point in direction of turning of the vessel. 1. Roll the trackball to choose the MENU box and then push the left button. 2.

  • Page 182: Fusion Of Arp And Ais Targets

    4. AIS OPERATION 4.12 Fusion of ARP and AIS Targets An AIS-equipped ship is usually displayed by two symbols on the radar display. This is because the AIS ship position is measured by a GPS navigator (L/L) on that ship whereas the radar detects the same ship by PPI principle (range and bearing relative to own ship radar antenna).
  • Page 183 4. AIS OPERATION When the fusion criteria is met, the ARP symbol is erased and only the AIS symbol is displayed. Further, “ARPA FUSION” appears at the bottom right corner of the display at the time of conversion and the ARP target no. appears next to the AIS symbol.

  • Page 184: Own Ship's Data

    4. AIS OPERATION 4.13 Own Ship’s Data Own ship’s static data (type of ship, call sign, name and position of internal and external GPS antennas) can be viewed as follows 1. Roll the trackball to choose the AIS DISP box at the right side of the screen. 2.

  • Page 185: Messages

    4. AIS OPERATION 4.14 Messages You may transmit and receive messages via the VHF link, to a specified destination (MMSI) or all ships in the area. Messages can be sent to warn of safety of navigation, for example, an iceberg sighted. Routine messages are also permitted.

  • Page 186: Transmitting A Message

    4. AIS OPERATION 9. Roll the wheel to choose 5 CHANNEL NO. and then push the wheel or the left button. 10. Roll the wheel to choose the channel to transmit your message over: A, B, A or B, or A and B. Push the wheel after making your selection. 11.

  • Page 187: Viewing Ais Messages

    4. AIS OPERATION 4.14.3 Viewing AIS messages When an AIS message is received, the display shows an appropriate icon to alert you. If you are set up to automatically display AIS messages they are automatically displayed upon receipt. The system stores up to 20 AIS messages. When the storage capacity is reached the oldest AIS message is automatically erased to make room for the latest.
  • Page 188 4. AIS OPERATION NAME: FURUNO CALL: 112233 STORM WARNING VICINITY OF 35°N 135°W Example of received AIS message (max. 180 characters) 5. Press the right button several times to close the message and the menu. Automatically displaying AIS messages You can display AIS messages upon receipt as follows: 1.

  • Page 189: Ais System Messages

    4. AIS OPERATION 4.15 AIS System Messages AIS system messages are displayed at the bottom right corner of the screen. The table below shows the AIS system messages and their meanings. AIS system messages Message Meaning ARPA FUSION ARPA target merged with AIS target. The indication disappears when the target no longer meets the criteria set in paragraph 4.12.
  • Page 190 4. AIS OPERATION (This page intentionally left blank.) 4-24...

  • Page 191: Video Plotter Operation

    VIDEO PLOTTER OPERATION General The video plotter Plots own and other ships’ tracks Enters waypoints nav lines and marks Records data onto memory cards (optional card interface required). It uses two types of memory cards, a memory card (RAM card) for storing own ship and other ship’s tracks and marks, and a digital chart card (ROM card).

  • Page 192: Presentation Modes

    5. VIDEO PLOTTER OPERATION Sample video plotter display North marker Separation zone Heading marker Waypoint Navline Target being tracked W012 Own ship safe contour Heading line AIS activated target Planned route Own ship vector Approximate coastline W011 Dangerous side of own Waypoint ship safe contour may be marked like this (hatched...

  • Page 193: Radar Map

    5. VIDEO PLOTTER OPERATION Radar Map A radar map is a combination of map lines and symbols whereby the user can define and input the navigation data, route planning and monitoring data. The radar map may contain 3,000 points of data. The map data can be memorized to facilitate repeated use on a routine navigation area.

  • Page 194: Inscribing Radar Map Marks And Lines

    5. VIDEO PLOTTER OPERATION 5.4.2 Inscribing radar map marks and lines 1. Roll the trackball to choose the MARK box at the left side of the display. > MARK Mark type -> + MARK box 2. Push the right button to open the MARK menu. [MARK MENU] 1 ORIGIN MARK STAB GND/SEA...
  • Page 195 5. VIDEO PLOTTER OPERATION • To continue entering the same mark or line (with the guidance box showing “MARK / EXIT”), roll the trackball to choose location and then push the left button. • To quit entering marks or lines, push the right button when the guidance box reads “MARK / EXIT.”...

  • Page 196: Erasing Radar Map Marks And Lines

    5. VIDEO PLOTTER OPERATION Erasing Radar Map Marks and Lines A total of 3,000 points is allotted for radar map marks and lines. When this amount is exceeded, no more map marks or lines may be entered unless you erase unnecessary marks or lines. 5.5.1 Erasing individual radar map marks and lines 1.

  • Page 197: Erasing All Radar Map Marks And Lines

    5. VIDEO PLOTTER OPERATION 5.5.2 Erasing all radar map marks and lines You can erase all radar map marks and lines from the screen as below. Be absolutely sure you want to erase all map marks and lines – erased marks and lines cannot be restored.

  • Page 198: Radar Map Corrections

    5. VIDEO PLOTTER OPERATION Radar Map Corrections 5.6.1 Radar map correction When there is positional error between the radar screen and radar map marks and lines, do the following to correct it. 1. With the cursor inside the effective display area, roll the wheel to display “CHART ALIGN L=OFF / EXIT”...

  • Page 199: Chart Cards

    Charts may be overlaid on the radar image of the non-IMO radar when it is interfaced with the optional Card I/F Unit CU-200. (Charts cannot be used with the IMO-type radar.) This radar accepts both FURUNO and NAVIONICS chart cards.

  • Page 200: Chart Position Correction

    5. VIDEO PLOTTER OPERATION 5.7.2 Chart position correction There may be a case where the chart overlay is not aligned with the radar image. This is due to an error in the position fixing system (GPS, Loran, etc.) or the different coordinates between the position fixing system and the radar.

  • Page 201: Chart Land Color

    5. VIDEO PLOTTER OPERATION 4. Roll the wheel to choose ON and then push the wheel or the left button. “ALIGN” appears (in red) next to cursor position in the cursor data box. (To remove the correction, choose OFF. If you are using the AIS function, choose ON.) 5.

  • Page 202: Hiding/Showing Graphics On The Video Plotter Display

    5. VIDEO PLOTTER OPERATION Hiding/Showing Graphics on the Video Plotter Display 1. Roll the trackball to choose the MENU box at the right side of the screen and then push the left button. 2. Roll the wheel to choose 5 PLOTTER and then push the wheel or the left button.

  • Page 203: Track

    5. VIDEO PLOTTER OPERATION Track 5.9.1 Plotting own ship’s track A total of 6,000 points are allotted for storage of own ship’s track, marks and lines. When this memory becomes full, the oldest track is deleted to make room for the latest. For that reason you may want to adjust the recording interval to conserve the memory.

  • Page 204: Plotting Other Ships' Track

    5. VIDEO PLOTTER OPERATION 5.9.2 Plotting other ships’ track The tracks of 10 targets (other ships) can be recorded. The memory capacity for other ships’ track is 20,000 points, but this value is divided equally among ten targets, so there are 2,000 points per target. When the other ships’ track memory becomes full the oldest track is deleted to make room for the latest.

  • Page 205: Erasing Track

    5. VIDEO PLOTTER OPERATION 5.9.4 Erasing track The display may become full of track when, for example, own ship traces the same route several times or there are many tracks from other ships. You can erase all or a percentage of your track or other tracks to clear the display. 1.

  • Page 206: Marks And Lines

    5. VIDEO PLOTTER OPERATION 5.10 Marks and Lines You can inscribe marks on the display to denote important points, for example, a buoy or a wreck. The memory for marks, lines and own ship’s track is 6,000 points. 5.10.1 Inscribing marks and lines 1.
  • Page 207 5. VIDEO PLOTTER OPERATION 6. With the MARK box selected, roll the wheel to choose mark desired and then push the left button. See the list on page 5-5 for available marks. 7. Push the left button again. The cursor jumps into the effective display area and the guidance box reads “MARK / EXIT.”...

  • Page 208: Erasing Marks And Lines

    5. VIDEO PLOTTER OPERATION 5.11 Erasing Marks and Lines Up to 6,000 points of own ship’s track, marks and lines may be entered. When this amount is exceeded no more marks or lines can be entered unless unnecessary marks, lines or track are erased. 5.11.1 Erasing individual marks/lines 1.

  • Page 209: Erasing All Marks And Lines

    5. VIDEO PLOTTER OPERATION 5.11.2 Erasing all marks and lines To erase all plotter marks and lines from the memory, follow the procedure below. 1. Roll the trackball to choose the MENU box at the right side of the screen and then push the left button.

  • Page 210: Waypoints

    5. VIDEO PLOTTER OPERATION 5.12 Waypoints A particular location is known as a “waypoint,” whether it be a starting point, a destination point or an intermediate point on a voyage. This unit can store 200 waypoints, numbered 001 to 200. Waypoints may be entered with the cursor or by input of latitude and longitude.
  • Page 211 5. VIDEO PLOTTER OPERATION 7. Roll the trackball to place the cursor where you want to inscribe a waypoint mark and then push the left button to inscribe the mark. The waypoint mark (“ ” + waypoint number) appears at the location selected. (You can see the range and bearing to the cursor location by monitoring the mark range and bearing indication just below the MARK box.) To enter another waypoint, push the right button when the guidance box reads...
  • Page 212 5. VIDEO PLOTTER OPERATION 4. Roll the wheel to choose 6 [WPT SET] and then push the wheel or the left button. [WPT SET] 1 BACK 2 WPT NO. SELECT 3 WPT NAME 4 WPT L/L 00°00.000 N 000°00.000 E 5 CLEAR DATA WPT SET menu 5.

  • Page 213: Editing, Erasing Waypoints From The Menu

    5. VIDEO PLOTTER OPERATION 5.12.2 Editing, erasing waypoints from the menu You may edit or erase waypoints from the menu as follows: 1. Roll the trackball to choose the MENU box at the right side of the screen and then push the left button. 2.

  • Page 214: Erasing Waypoints

    5. VIDEO PLOTTER OPERATION 5.12.3 Erasing waypoints Waypoints may be erased individually or collectively. Note that a waypoint cannot be erased if it is part of a nav line. Erasing individual waypoints 1. With the cursor inside the effective display area, roll the wheel to display “MARK DELETE / EXIT”...

  • Page 215: Waypoint List

    5. VIDEO PLOTTER OPERATION 5.12.4 Waypoint list The waypoint list stores position data of all registered waypoints. Each page of the waypoint list holds eight waypoints. To display the waypoint list: 1. Roll the trackball to choose the MENU box at the right side of the screen. 2.

  • Page 216: Displaying Waypoint Name And Number

    5. VIDEO PLOTTER OPERATION 5.12.5 Displaying waypoint name and number You may turn waypoint name and number display on or off as desired. 1. Roll the trackball to choose the MENU box at the right side of the screen and then push the left button.

  • Page 217: Nav Lines

    5. VIDEO PLOTTER OPERATION 5.13 Nav Lines 30 nav lines may be entered, and each line may have up to 30 waypoints. 5.13.1 Entering new nav line To enter a nav line, first enter appropriate waypoints. Then, do the following: 1.

  • Page 218: Editing Nav Lines

    5. VIDEO PLOTTER OPERATION 10. To enter another nav line, roll the wheel to choose 0 BACK to return to the NAV LINE SET menu and then repeat steps 4-9. 11. To finish, push the right button several times to close the menu. 5.13.2 Editing nav lines Follow the procedure below to edit a nav line.

  • Page 219: Nav Line List

    5. VIDEO PLOTTER OPERATION 5.13.3 Nav line list The nav line list, which shows all nav lines registered, may be displayed as follows: 1. Roll the trackball to choose the MENU box and then push the left button. 2. Roll the wheel to choose 8 [NAV LINE•WPT] and then push the wheel or the left button.

  • Page 220: Erasing Nav Lines

    5. VIDEO PLOTTER OPERATION 5.13.4 Erasing nav lines 30 nav lines may be entered. You may erase unnecessary nav lines as shown below. A nav line which is currently in use cannot be erased. Erasing individual nav lines 1. Roll the trackball to choose the MENU box at the right side of the screen and then push the left button.

  • Page 221: Setting Up Nav Lines

    5. VIDEO PLOTTER OPERATION Erasing all nav lines 1. Roll the trackball to choose the MENU box and then push the left button. 2. Roll the wheel to choose 5 PLOTTER and then push the wheel or the left button. 3.
  • Page 222 5. VIDEO PLOTTER OPERATION 4. Roll the wheel to choose INTERNAL DATA and then push the wheel or the left button. 5. Roll the wheel to choose 5 NAV LINE WIDTH. 6. Use the wheel to enter the width for the nav line, from 0.0-9.9(nm). A pair of red lines mark the width of the nav line.

  • Page 223: Displaying Nav Line, Waypoint Mark

    5. VIDEO PLOTTER OPERATION 5.13.6 Displaying nav line, waypoint mark Displaying internal nav lines 1. Roll the trackball to choose the MENU box and then push the left button. 2. Roll the wheel to choose 8 [NAV LINE•WPT] and then push the wheel or the left button.
  • Page 224 5. VIDEO PLOTTER OPERATION Waypoint mark The waypoint mark shows the location of a destination waypoint which is set on a navigator. You may mark this location on the radar display by following the procedure shown below. Waypoint Mark Waypoint mark 1.

  • Page 225: Recording Data

    5. VIDEO PLOTTER OPERATION 5.14 Recording Data The optional Card I/F Unit CU-200 is required to record or replay data. The CU-200 has two card slots and you can connect two units, for a total of four card slots. 5.14.1 Initializing memory (RAM) cards Before you can use a memory (RAM) card it must be initialized.

  • Page 226: Recording Data

    5. VIDEO PLOTTER OPERATION 6. Roll the wheel to choose 0 NEXT and then push the wheel or the left button. [CARD (2/2)] 1 BACK 2 [FILE DELETE] 3 [CARD INITIALIZE] CARD menu, page 2 7. Roll the wheel to choose 3 CARD INITIALIZE and then push the wheel or the left button.
  • Page 227 5. VIDEO PLOTTER OPERATION 4. Roll the wheel to choose DRIVE SELECT and then push the wheel or the left button. 5. Roll the wheel to choose appropriate drive and then push the wheel or the left button. 6. Roll the wheel to choose data to record (one item among 4-9) and then push the wheel or the left button.

  • Page 228: Replaying Data

    5. VIDEO PLOTTER OPERATION 5.15 Replaying Data Video plotter data (track, marks, etc.) may be replayed on the screen. This is useful for analyzing past data. 1. Insert memory card into the appropriate slot in an I/F card unit. 2. Roll the trackball to choose the MENU box and then push the left button. 3.

  • Page 229: Deleting Files

    5. VIDEO PLOTTER OPERATION 5.16 Deleting Files 1. Roll the trackball to choose the MENU box and then push the left button. 2. Roll the wheel to choose 6 [CARD] and then push the wheel or the left button. 3. Roll the wheel to choose 2 DRIVE SELECT and then push the wheel or the left button.
  • Page 230 5. VIDEO PLOTTER OPERATION (This page intentionally left blank.) 5-40...

  • Page 231: Maintenance, Troubleshooting

    MAINTENANCE, TROUBLESHOOTING Periodic checks and maintenance are important for proper operation of any electronic system. This chapter contains maintenance and troubleshooting instructions to be followed to obtain optimum performance and the longest possible life of the equipment. Before attempting any maintenance or troubleshooting procedure please review the safety information below.

  • Page 232: Periodic Maintenance Schedule

    6. MAINTENANCE, TROUBLESHOOTING Periodic Maintenance Schedule Regular maintenance is essential to good performance. A regular maintenance program should be established and should at least include the items shown in the table below. Maintenance schedule Interval Check point Check and measures Remarks When The LCD will in...

  • Page 233: Life Expectancy Of Major Parts

    6. MAINTENANCE, TROUBLESHOOTING Life Expectancy of Major Parts Parts Type Life expectancy Remarks Antenna motor D8G-516 (24 rpm, X-band) Gears more than Wind load 100 kt D8G-571 (42 rpm, X-band) 10,000 h RM-7398 (21/26 rpm, S-band) RM-7435 (21/26 rpm, S-band) RM-9519 (45 rpm, S-band) RM-9520 (45 rpm, S-band) RM-9521 (45 rpm, S-band)

  • Page 234: Replacement Of Battery On Gc Board

    6. MAINTENANCE, TROUBLESHOOTING Replacement of Battery on GC Board The battery installed on the GC (GyroCompass) Board inside the processor unit preserves gyro data when the power is turned off. The life of the battery is about five years. When the battery voltage is low, NG appears at the diagnostic test for the GC Board.

  • Page 235: Easy Troubleshooting

    6. MAINTENANCE, TROUBLESHOOTING Easy Troubleshooting This paragraph provides troubleshooting procedures which the user may follow to restore normal operation. If you cannot restore normal operation, do not attempt to check inside any unit. Any repair work is best left to a qualified technician.

  • Page 236: Advanced-Level Troubleshooting

    6. MAINTENANCE, TROUBLESHOOTING Advanced-level Troubleshooting This paragraph describes how to cure hardware and software troubles which should be carried out by qualified service personnel. Note: This radar equipment contains complex modules in which fault diagnosis and repair down to component level are not practicable by users. Advanced troubleshooting Problem Probable causes or check...
  • Page 237 6. MAINTENANCE, TROUBLESHOOTING Advanced troubleshooting (con’t) Probable causes or check Problem Remedy points Marks, indications and 1) TX fuse 1) If fuse is blown, replace it. If it blows noise appear but no echo again, the modulator or associated (Transmission leak circuit may be defective.
  • Page 238 6. MAINTENANCE, TROUBLESHOOTING Advanced troubleshooting (con’t) Problem Probable causes or check Remedy points Interference rejector is SPU board Replace SPU board. inoperative (interference rejection level not displayed) Echo stretch is ineffective SPU board Replace SPU board. (neither ES1, ES2 nor ES3 is displayed) Range rings are not 1) Adjust the brilliance of...

  • Page 239: Diagnostics

    6. MAINTENANCE, TROUBLESHOOTING Diagnostics A diagnostic test program is provided to test major circuit boards in the control unit, processor unit and card I/F unit. Note that the normal radar picture is lost during this test. Proceed as follows to execute the diagnostic test: 1.
  • Page 240 6. MAINTENANCE, TROUBLESHOOTING Self test results, keyboard test 6. The small squares and circles displayed at the bottom of screen are for testing the control and keys on the control unit. As you operate controls and keys, corresponding squares are highlighted, indicating that your control/key operations are properly recognized.
  • Page 241 6. MAINTENANCE, TROUBLESHOOTING 7. Press the [F1] key to change the display. The buzzer stops and the screen shows the sentences being input to the radar, under the categories of GPS1 and GPS2 (position), speed, heading and nav data. Below is an example. (The sentences shown depend on your system settings.) Sentence input display 8.

  • Page 242: System Messages

    6. MAINTENANCE, TROUBLESHOOTING System Messages This sections provides all the error messages which may appear on the display screen. System messages Message Alarm Meaning Signal Missing DATUM Continuous Wrong chart datum (only WGS84 is permitted) GYRO Continuous No bearing data Continuous No speed log data EPFS...
  • Page 243 6. MAINTENANCE, TROUBLESHOOTING System messages (con’t from previous page) Message Alarm Meaning Other Alarms CHK INT-SW Continuous Image from currently selected antenna becomes lost DEPTH Continuous Water is shallower than preset depth HEADING SET None Gyro re-set with MODE key Continuous Cross-track error: Ship has crossed over a nav line by a preset range...
  • Page 244 6. MAINTENANCE, TROUBLESHOOTING (This page intentionally left blank.) 6-14...

  • Page 245: Appendix

    APPENDIX 1. Menu Tree Main menu (accessed by MENU key or MENU box) MENU key 1 BACK 1 ECHO MENU box 2 2ND ECHO REJ (OFF, ON) 3 TUNE INITIALIZE 4 PM (OFF, ON) 5 SART (OFF, ON) 6 WIPER (OFF, 1, 2) 1 BACK 2 MARK 2 OWN SHIP MARK (OFF, ON)
  • Page 246 APPENDIX (Continued from previous page) 1 BACK 4 ARP AIS 2 GUARD ZONE STAB (STAB HDG, STAB NORTH) 3 GUARD POLYGON (OFF, STAB GND, STAB HDG, STAB NORTH) 4 [TRIAL MANEUVER] 1 BACK 2 TRIAL (OFF, STATIC, DYNAMIC) 3 TRIAL SPEED RATE (0.0 kt, 0.00 °/s, two sets) 4 TRIAL TURN RATE (0.0 kt, 0.00 °/s, two sets) 1 BACK 5 [ARP SYMBOL]...
  • Page 247 APPENDIX (Continued from previous page) 9 [DISPLAY] 1 BACK 2 GRID (OFF, ON) 3 OWN TRACK (OFF, ON) 4 TARGET TRACK (OFF, ON)* 5 MARK (OFF, ON) 6 LAND DENSITY (OFF, ON)* 7 PLACE NAME (OFF, ON)* 8 COAST LINE (OFF, ON) 9 CONTOUR LINE (OFF, ON) 1 BACK 0 NEXT...
  • Page 248 APPENDIX (Continued from previous page) 7 [WPT LIST] 8 [NAV LINE SET] 1 BACK 2 NAV LINE NO. SELECT 3 NAV LINE NAME 4 NAV LINE ENTRY 5 CLEAR DATA 9 [NAV LINE LIST] 1 BACK 0 NEXT 2 SKIP NEXT WPT 3 TURNING LINE (OFF, ON, REVISED) 4 DISP WPT NO.
  • Page 249 APPENDIX (Continued from previous page) 7 [OPERATION] 1 BACK 2 WHEEL DRIVE ( NORMAL , REVERSE) 3 KEY BEEP** (OFF, LO , MID, HI) 4 REMOTE ( F*- /DISPLAY) 5 POPUP GUIDANCE ( OFF , ON) 6 OWN SHIP VECTOR (OFF, HDG, COURSE ) 8 [TEST] 1 BACK 1 BACK...
  • Page 250 APPENDIX Pop-up menus of on-screen boxes [HDG MENU] [SPEED MENU] [CURSOR MENU] ↓ 1 HDG SOURCE 1 SHIP SPEED AD - 10 /SERIAL LOG(BT)/LOG(WT)/ TARGET DATA & ACQ/ 2 GC -10 SETTING TARGET CANCEL/ GPS /MANUAL/REF 000.0 ° ACQ/ 2 MANUAL SPEED REF MARK/ 0.0 kt HDG menu...
  • Page 251 APPENDIX [BRILL1 MENU (1/2)] [BRILL1 MENU (2/2)] [MARK MENU] 1 ECHO COLOR** 1 BACK 1 ORIGIN MARK STAB YEL/GRN/ 2 BRG CURSOR GND/SEA 2 MARK KIND WHT/COLOR* 3 EBL ORIGIN MARK(No.)/ 4 VRM 2 BKGD COLOR** BLK-GRN/ ORIGIN MARK(SYM)/ 5 INDEX LINE MAP MARK/ 6 ARP SYMBOL BLK-RED/...

  • Page 252: Digital Interface

    APPENDIX 2. Digital Interface Input sentences (RP Board, J4) BWC*, BWR*, DBS, DBT, DPT, DTM, GGA, GLC, GLL, HDT, MTW, MWV, RMA, RMB, RMC, RTE VBW, VDR, VHW, VTG, VWR, VWT, WPL, ZDA, !AIVDM, !AIVDO, $AIALR Output sentences OSD, TLL*, TTM, RSD *: Not available on IMO radar Data reception Data is received in serial asynchronous form in accordance with the standard referenced in...
  • Page 253 APPENDIX BWR - Bearing and distance to waypoint - rhumb line $--BWR,hhmmss.ss,llll.lll,a,yyyyy.yyy,a,x.x,T,x.x,M,x.x,N,c--c,a*hh<CR><LF> | +---- 9 | +------ 8 | +--------- 7 | +--+------------- 6 | +--+------------------- 5 | +--+------------------------- 4 +-----+------------------------------- 3 +-----+------------------------------------------- 2 +---------------------------------------------------------- 1 1. UTC of observation 2.
  • Page 254 APPENDIX DTM - Datum reference $--DTM,ccc,a,x.x,a,x.x,a,x.x,ccc*hh<CR><LF> | | | | | | | +--- 7 | | | +------ 6 | | | | +---------- 5 | | | | +--+------------- 4 | | +---+------------------- 3 | +------------------------- 2 +---------------------------- 1 1.
  • Page 255 APPENDIX DBT - Depth below transducer $--DBT,x.x,f,x.x,M,x.x,F*hh<CR><LF> | | | | | | | | | | | +--------- 4 | | | | +--+----------- 3 | | +--+----------------- 2 +--+----------------------- 1 1. Water depth, feet 2. Water depth, m 3.
  • Page 256 APPENDIX GGA - Global positioning system fix data $--GGA,hhmmss.ss,llll.lll,a,yyyyy.yyy,a,x,xx,x.x,x.x,M,x.x,M,x.x,xxxx*hh<CR><LF> | | | | | | +-- 11 | | | +---- 10 | | | | +--------- 9 | | | | +---+------------ 8 | | | +---+------------------ 7 | | | +------------------------- 6 | | +---------------------------- 5 | +------------------------------- 4...
  • Page 257 APPENDIX GLL - Geographic position, latitude/longitude $--GLL,llll.lll,a,yyyyy.yyy,a,hhmmss.ss,A,a*hh<CR><LF> | | | | | +------- 6 | +--------- 5 +----------- 4 +---------------- 3 +------+----------------------- 2 +---+----------------------------------- 1 1. Latitude, N/S 2. Longitude, E/W 3. UTC of position 4. Status: A=data valid, V=data invalid 5.
  • Page 258 APPENDIX HDT - Heading, true $--HDT,x.x,T*hh<CR><LF> | +--------- 2 +----+----------- 1 1. Heading, degrees true 2. Checksum MTW - Water temperature $--MTW,x.x,C*hh<CR><LF> | +--------- 2 +--+----------- 1 1. Temperature, degrees C 2. Checksum MWV - Wind speed and angle $--MWV,x.x,a,x.x,a,A*hh<CR><LF> | | | | | | | +--------- 6 | | +----------- 5...
  • Page 259 APPENDIX RMB - Recommended minimum navigation information $--RMB,A,x.x,a,c--c,c--c,llll.lll,a,yyyyy.yyy,a,x.x,x.x,x.x,A,a*hh<CR><LF> | | | | | +--- 13 | +----- 12 | +------- 11 | +---------- 10 +-------------- 9 | +------------------ 8 +-----+--------------------- 7 +----+--------------------------------- 6 +--------------------------------------------- 5 | | +-------------------------------------------------- 4 | +------------------------------------------------------ 3 | +--------------------------------------------------------- 2 +------------------------------------------------------------ 1 1.
  • Page 260 APPENDIX RMC - Recommended minimum specific GPS/TRANSIT data $--RMC,hhmmss.ss,A,llll.lll,a,yyyyy.yyy,a,x.x,x.x,xxxxxx,x.x,a,a*hh<CR><LF> | | | | | | | +--- 10 | | +----- 9 +--+------- 8 +--------------- 7 | +--------------------- 6 | +------------------------- 5 +---+---------------------------- 4 +---+---------------------------------------- 3 +--------------------------------------------------- 2 +---------------------------------------------------------- 1 1.
  • Page 261 APPENDIX RTE - Route $--RTE,x.x,x.x,a,c--c,c--c,..,c--c*hh<CR><LF> +--------- 7 +------------ 6 +----------------------- 5 | +---------------------------- 4 | +-------------------------------- 3 +----------------------------------- 2 +--------------------------------------- 1 1. Total number of messages being transmitted 2. Message number 3. Message mode: c=complete route, all waypoints w=working route, first listed waypoint is "FROM", second is "TO"...
  • Page 262 APPENDIX VHW - Water speed and heading $--VHW,x.x,T,x.x,M,x.x,N,x.x,K*hh<CR><LF> | | | | | +--------- 5 | | +--+----------- 4 | +--+----------------- 3 | +---+----------------------- 2 +---+----------------------------- 1 1. Heading, degrees true 2. Heading, degrees magnetic 3. Speed, knots 4. Speed, km/h 5.
  • Page 263 APPENDIX VTG - Course over ground and ground speed $--VTG,x.x,T,x.x,M,x.x,N,x.x,K,a*hh<CR><LF> | | | | | | | +------- 6 | | +--------- 5 +--+----------- 4 | | +--+----------------- 3 | | +--+----------------------- 2 +--+----------------------------- 1 1. Course over ground, degrees true 2.
  • Page 264 APPENDIX VWT - True wind speed and angle $--VWT,x.x,a,x.x,N,x.x,M,x.x,K*hh<CR><LF> | +----------------------- 5 | +---+------------------------- 4 +---+--------------------------------- 3 | +--+---------------------------------------------- 2 +------------------------------------------------------ 1 1. Calculated wind angle relative to the vessel, 0 to 180 , left/right L/R of vessel heading 2. Calculated wind speed, knots 3.
  • Page 265 APPENDIX $AIALR - Set alarm state $AIALR,hhmmss.ss,xxx,A,A,c--c*hh<CR><LF> +----------------- 6 +----------------- 5 | +-------------------- 4 +---------------------- 3 +------------------------- 2 +--------------------------------- 1 1. Time of alarm condition change, UTC 2. Local alarm number(identifier) 3. Alarm condition(A=threshold exceeded, V=not exceeded) 4. Alarm’s acknowledge state, A=acknowledged V=unacknowledged 5.
  • Page 266 APPENDIX !AIVDO - UAIS VHF Data-link Own-vessel report !AIVDO,x,x,x,a,s--s,x*hh<CR><LF> | | | | | | | | | | | | | +--- 7 | | | | | +----- 6 | | | | +-------- 5 | | | +------------ 4 | | +-------------- 3 | +---------------- 2 +------------------ 1...
  • Page 267 APPENDIX Output sentences OSD- Own ship data $--OSD,x.x,A,x.x,a,x.x,a,x.x,x.x,a*hh<CR><LF> | | | | | | +--------- 10 | | | +----------- 9 | | | +-------------- 8 | | | +------------------ 7 | | +--------------------- 6 | +------------------------ 5 +--------------------------- 4 | | +------------------------------ 3 | +--------------------------------- 2 +------------------------------------ 1...
  • Page 268 APPENDIX RSD - Radar system data $RARSD,x.x,x.x,x.x,x.x,x.x,x.x,x.x,x.x,x.x,x.x,x.x,a,a*hh<CR><LF> | | | | | +----- 14 | +------- 13 | +--------- 12 | +------------ 11 +---------------- 10 +-------------------- 9 | +------------------------ 8 +---------------------------- 7 +-------------------------------- 6 | +------------------------------------ 5 +---------------------------------------- 4 +-------------------------------------------- 3 +------------------------------------------------ 2 +---------------------------------------------------- 1 1.
  • Page 269 APPENDIX TLL - Target latitude and longitude For non-IMO specification radar, this function outputs event mark position. $--TLL,xx,llll.lll,a,yyyyy.yyy,a,c--c,hhmmss.ss,a,a*hh<CR><LF> | | | | | +--------- 8 | +----------- 7 +------------- 6 +-------------------- 5 | +-------------------------- 4 +-----+------------------------------ 3 | +----+------------------------------------------ 2 +----------------------------------------------------- 1 1.
  • Page 270 APPENDIX TTM - Tracked target message $--TTM,xx,x.x,x.x,a,x.x,x.x,a,x.x,x.x,a,c--c,a,a,hhmmss.ss,a*hh<CR><LF> | | | | | | | +----- 14 | | | +------- 13 | | | +-------------- 12 | | +------------------- 11 | +--------------------- 10 +------------------------ 9 | +---------------------------- 8 +------------------------------- 7 | +----------------------------------- 6 | +--+-------------------------------------- 5 | | +--------------------------------------------- 4...
  • Page 271 APPENDIX Serial interface – input ports Heading sensor Transmission rate is selectable from 4800 bps and 28.4 kbps. Isolated RS485 Transceiver RD-A LTC1535 RD-B Logical High: A-B> +0.2V Logical Low: A-B< -0.2V Log/navigator Photo Coupler 470 ohm RD-A PC-400 RD-B This port is an opticoupler used to isolate I/F terminal on RD terminal.
  • Page 272 APPENDIX Serial interface – output ports ARPA for ECDIS Dual differrential drivers and receivers RD-A SN751178NS RD-B Logical High: A-B> +0.2V Logical Low: A-B< -0.2V Serial interface – input/output ports Transmission rate is selectable from 4800 bps and 28.4 kbps. Input port (RD-A, B) Isolated RS485 Transceiver RD-A...

  • Page 273: Parts Lists And Parts Location

    APPENDIX 3. Parts Lists and Parts Location Parts lists Processor unit RPU-014, Control unit RCU-104/105, Display unit MU-201CR/ MU-231CR AP-29...
  • Page 274 APPENDIX Antenna unit RSB-096/097 (for FAR-2117(-BB)/2127(-BB)/2817/2827) AP-30...
  • Page 275 APPENDIX Antenna unit RSB-103/104/105 (FAR-2827W) Transceiver unit RTR-081 (FAR-2827W) AP-31...
  • Page 276 APPENDIX Antenna unit RSB-098/099/100/101/102 (for FAR-2137S-BB)/2837S) AP-32...
  • Page 277 APPENDIX Power Supply Unit PSU-007 (for FAR-2137S(-BB)/2837S 2003/10 Antenna unit RSB-104/105 (for FAR-2837SW) AP-33...
  • Page 278 APPENDIX Transceiver unit RTR-082 (for FAR-2837SW) AP-34...
  • Page 279 APPENDIX Parts location Display unit MU-231CR (AC specification) Display unit MU-231CR, rear cover removed Display unit MU-231CR, inner shield plate removed AP-35...
  • Page 280 APPENDIX Display unit MU-201CR (DC specification) Display unit MU-201CR, rear cover removed Display unit MU-201CR, inner shield plate removed AP-36...
  • Page 281 APPENDIX Control unit RCU-014 Control unit RCU-014, rear cover removed Control unit RCU-015 Control unit RCU-015, rear cover removed AP-37...
  • Page 282 APPENDIX Transceiver unit RTR-078/079 (for FAR-2117(-BB)/2127(-BB)/2817/2827 Transceiver unit RTR-078/079 (for FAR-2117(-BB)/2127(-BB)/2817/2827), upper half Transceiver unit RTR-078 (for FAR-2117(-BB)/2127(-BB)/2817/2827), lower half AP-38...
  • Page 283 APPENDIX Transceiver unit RTR-079 (for FAR-2117(-BB)/2127(-BB)/2817/2827, lower half Antenna unit RSB-103 (for FAR-2827W) Antenna unit RSB-103 (for FAR-2827W) AP-39...
  • Page 284 APPENDIX Transceiver unit RTR-081 (for FAR-2827W) Transceiver unit TR-081 (for FAR-2827W), cover opened AP-40...
  • Page 285 APPENDIX Antenna unit RSB-098/099/100/101/102 (for FAR-2137S(-BB)/2837S) Antenna unit RSB-098/099/100/101/102 (for FAR-2137S-(BB)/2837S), cover opened AP-41...
  • Page 286 APPENDIX Antenna unit RSB-098/099/100/101/102 (for FAR-2137S(-BB)/2837S), cover opened AP-42...
  • Page 287 APPENDIX Antenna unit RSB-104/105 (for FAR-2837SW) Antenna unit RSB-104/105 (for FAR-2837SW), cover opened Antenna unit RSB-104/105 (for FAR-2837SW), cover opened AP-43...
  • Page 288 APPENDIX Transceiver unit RTR-082 (for FAR-2837SW) Transceiver unit RTR-082 (for FAR-2837SW), cover opened AP-44...

  • Page 289: Longitude Error Table (On 96 Nm Range Scale

    APPENDIX 4. Longitude Error Table (on 96 nm range scale) The longitude lines concentrate on the north pole and south pole, namely, 1 nm is equivalent to 1 minute at 0 degree latitude, 2 minutes at 60 degrees latitude, 3 minutes at 70 degrees latitude and so on.
  • Page 290 APPENDIX ° ° ° ° ° ° ° ° ° ° 0.2256 0.4444 0.6496 0.8350 0.9950 1.1248 1.2202 1.2786 1.2980 ° 0.21980213 0.43290201 0.632803 0.8134132 0.96923215 1.09551918 1.1884382 1.24517456 1.26402037 ° 0.21229339 0.41810678 0.61115946 0.78556318 0.93600295 1.05790007 1.14755221 1.20224625 1.22034042 °...

  • Page 291: Index

    INDEX Antenna selection ........1-85 -trace echo rejector.......1-73 ARPA activating, deactivating......3-3 ARPA VECTOR box ......3-17 A/C RAIN ...........1-31 automatic acquisition ......3-5 A/C RAIN adjustment controls............ 3-2 method...........1-30 CPA and TCPA ........3-21 A/C SEA adjustment CPA and TCPA alarm acknowledgement automatic ..........1-29 ............
  • Page 292 INDEX Brilliance shape ............ 3-25 monitor........... 1-11 sleeping..........3-24 screen data ..........1-74 violation acknowledgement....3-24 Guidance box ..........1-7 Gyro readout ..........1-17 Colors ............1-92 GZ box ............3-23 Control description ........1-4 Control unit ..........1-3 CPA LIMIT box...........3-21 HDG box ........... 1-17 CU/TM RESET box ........1-21 HDG menu ..........
  • Page 293 INDEX erasing ...........1-58 Switching Hub HB-100......1-95 stabilization ..........1-58 System messages........6-12 OS POSN box ...........1-71 Own ship symbol ......1-61, 1-91 Target alarm Own ship vector.........1-81 acknowledging offending target .... 1-44 attributes ..........1-45 PAST POSN box......3-18, 4-12 deactivating ...........
  • Page 294 INDEX nav line list..........5-29 waypoint entry with cursor ....5-20 nav line setup ........5-31 waypoint erasure........5-24 other track plotting .........5-14 waypoint list........... 5-25 own track plotting........5-13 waypoint name and number ....5-26 radar map activation........5-3 VRM box ........... 1-35 radar map mark and line erasure ....5-6 VRM ON, VRM OFF keys......

This manual is also suitable for:

Far-2117Far-2127Far-2827wFar-2837sFar-2837swFar-2137s ... Show all

Table of Contents
