Introduction

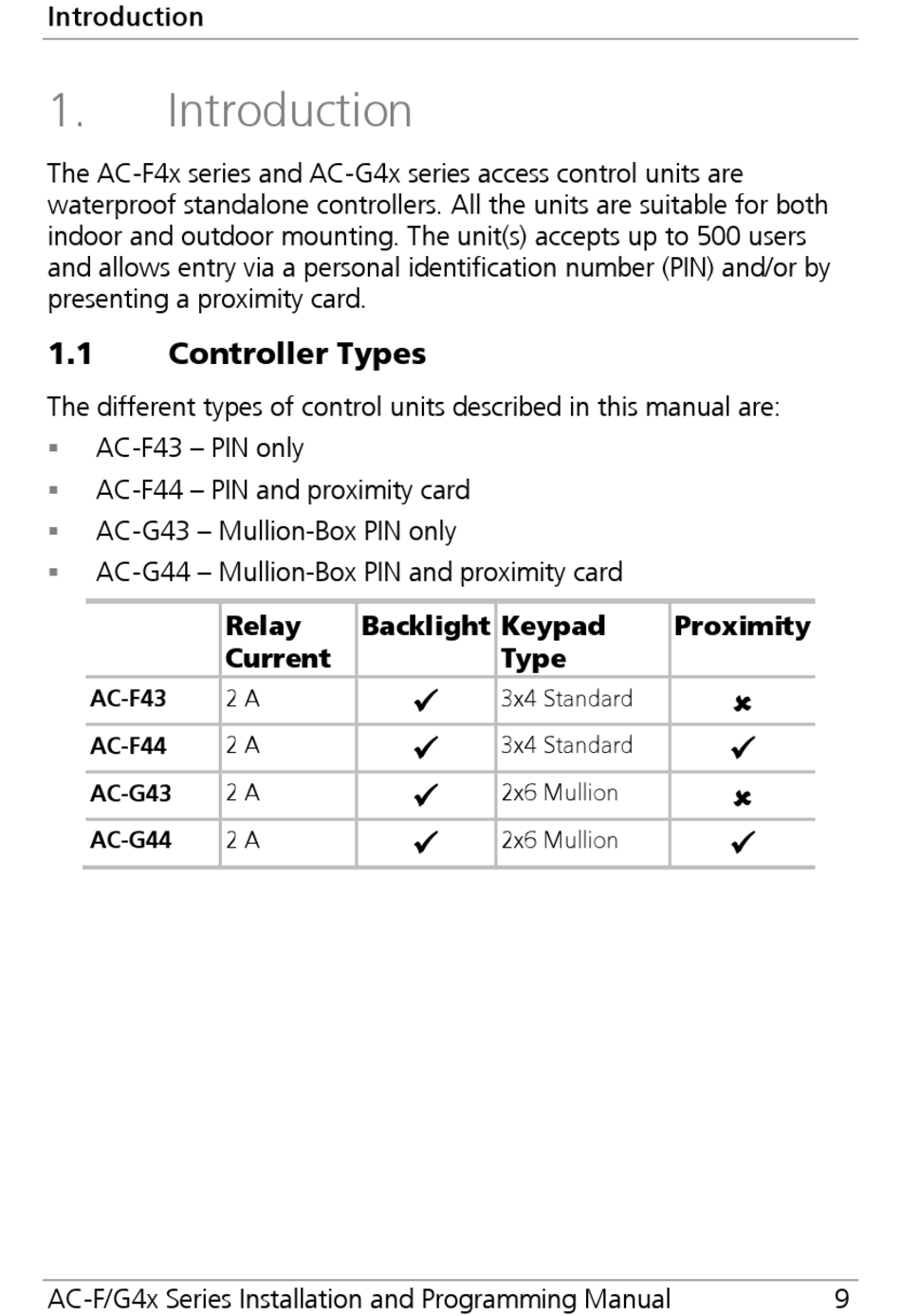

1. Introduction
The AC-F4x series and AC-G4x series access control units are
waterproof standalone controllers. All the units are suitable for both
indoor and outdoor mounting. The unit(s) accepts up to 500 users
and allows entry via a personal identification number (PIN) and/or by
presenting a proximity card.
1.1

Controller Types

The different types of control units described in this manual are:
 AC-F43 – PIN only
 AC-F44 – PIN and proximity card
AC-G43 – Mullion-Box PIN only

 AC-G44 – Mullion-Box PIN and proximity card
AC-F43
AC-F44
AC-G43
AC-G44
AC-F/G4x Series Installation and Programming Manual
Relay Backlight Keypad
Current
2 A
2 A
2 A
2 A
Type
 3x4 Standard
 3x4 Standard
 2x6 Mullion
 2x6 Mullion
Proximity




9
