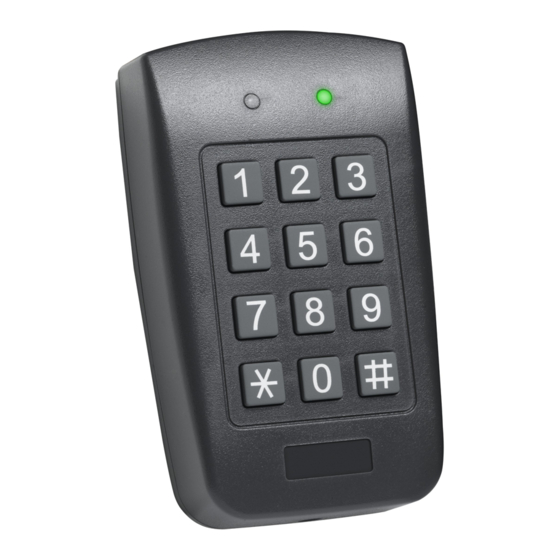

Waterproof stand-alone access control unit with backlit keypad
Hide thumbs Also See for InteliDoor AC-F43:
Table of Contents

Advertisement

Quick Links

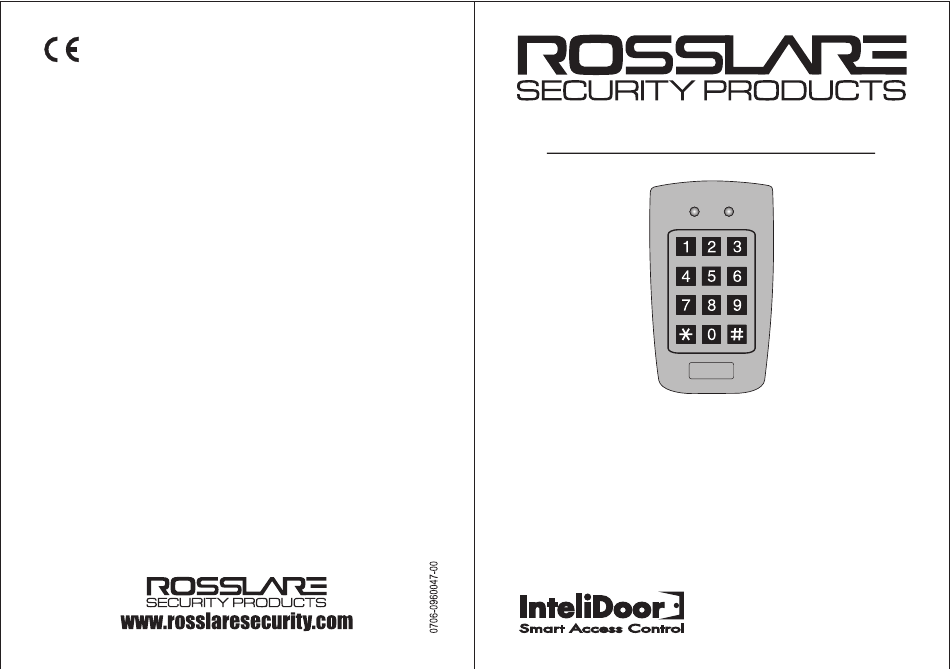

INSTRUCTION MANUAL
AC-F43
WATERPROOF STAND-ALONE
ACCESS CONTROL UNIT
WITH BACKLIT KEYPAD
07/04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the InteliDoor AC-F43 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rosslare InteliDoor AC-F43

Summary of Contents for Rosslare InteliDoor AC-F43

  • Page 1 INSTRUCTION MANUAL AC-F43 WATERPROOF STAND-ALONE ACCESS CONTROL UNIT WITH BACKLIT KEYPAD 07/04...

  • Page 2: Table Of Contents

    Contents INTRODUCTION Replacing a lost Programming Code Replacing a lost Normal / Secure Code Technical Specifications Key Features APPENDIX INSTALLATION Glossary Mounting the AC-F43 Controller Wiring Diagrams WARRANTY FEATURES AND CONCEPTS TECHNICAL SUPPORT Normal, Secure, & Master Users Modes Of Operation Changing the Modes of Operation Auxiliary Output and Input Request To Exit (REX) Button...

  • Page 3: Introduction

    4) BL-D40 External Sounder (Optional) 4.72" (120mm) L x 2.80" (71mm) W x 1.17" (30mm) D Provides Siren, Bell, and Chime functions to AC-F43 Weight: 0.54 lbs (244g) Other Rosslare accessories can be found at Rosslare's Web Site: http://www.rosslaresecurity.com AC-F43 Page 5...

  • Page 4: Key Features

    Key Features Here are some of the AC-F43's key features: Waterproof Built in backlit keypad for PIN code entry Auxiliary Input & Auxiliary Output Ten Auxiliary Modes including: Door Ajar Forced Door Shunt Door Monitor Normal / Secure LED Control Internal Buzzer Comes with security screw and security screw tool Two Tri Color LED'S for Status / Programming Interface LED's...

  • Page 5: Installation

    6) Secure the AC-F43 by using the supplied security screw in the pages; for other wiring diagram examples refer to the support Installation Kit. An L-Shaped tool is provided for use when section of the Rosslare Web Site. tightening the security screw. http://www.rosslaresecurity.com...

  • Page 6: Wiring Diagrams

    Wiring Diagrams Wiring the Auxiliary Input and Output AC-F43 AC-F43 WHITE IN / MONITOR BLACK GROUND V IN YELLOW N.O. ORANGE AUX. N.C. GREEN REX / BL BLUE GRAY N.O. BLACK GROUND BROWN LOCK N.C. V IN PURPLE COMMON ELECTRIC LOCK POWER SUPPLY STRIKE AUXILIARY...
  • Page 7 Wiring the BL-D40 External Sounder THIS PAGE IS INTENTIONALLY BLANK AC-F43 BLACK GROUND V IN GREEN REX / BL COMMON POWER SUPPLY 12V - 24V DC 16V - 24V AC FROM TRANSFORMER BL-D40 AC-F43 Page 13 07/04 Page 12 07/04 AC-F43...

  • Page 8: Normal, Secure, & Master Users

    Normal, Secure, & Master Users Modes of Operation The AC-F43 accepts up to 500 users and provides entry via the use The AC-F43 has 3 Modes of Operation: of PIN codes. Each user is provided with two code memory slots, Memory Slot 1 (Primary Code) and Memory Slot 2 (Secondary 1) Normal Mode.

  • Page 9: Changing The Modes Of Operation

    Changing from Normal Mode to Bypass Mode: Changing the Modes of Operation By default there is no Normal / Bypass Code. The Normal / Bypass Changing from Normal Mode to Secure Mode: Code must first be programmed to use this function. Refer to page 24 to create / modify the Normal / Bypass Code.

  • Page 10: Request To Exit (Rex) Button

    Siren Time in the BL-D40. door open when used in conjunction with fire sytems. The Controller communicates with the BL-D40 using a coded proprietary Rosslare communications protocol. This provides a Case and Back Tamper more secure link between the Controller and the BL-D40.

  • Page 11: Programming The Ac-F43

    Programming the AF-G43 Entering Programming Mode Programming the AC-F43 is done solely via the unit's keypad driven 1) Press the "#" key two times Mode Door Programming Menu System. To reach the Programming Menu within 2 seconds. System the AC-F43 must first be placed into Programming Mode. Mode LED will turn off See "Entering Programming Mode"...

  • Page 12: Changing The Open Code

    1) Enter Programming Mode Mode Door Changing the Open Code GREEN The Open Code is mainly used as a method to quickly test the 2) Press "2" to enter Menu 2 Mode Door Lock Strike Relay during installation. The Mode LED will turn red ORANGE GREEN The Default Factory Setting for the Open Code is 2580.

  • Page 13: Changing The Normal / Secure Code

    Disable Bypass Code - Disable Door Chime Changing the Normal / Secure Code Enter the 4-digit code 0000 1) Enter Programming Mode Mode Door GREEN Disable Bypass Code - Enable Door Chime 2) Press "4" to enter Menu 4 Mode Door Enter the 4-digit code 0001 The Mode LED will flash red...

  • Page 14: Setting Fail Safe/Secure Operation

    Setting Fail Safe/Secure Operation Setting the Auxiliary Mode Setting Tamper Siren Time The default auxiliary setting is 2004. Setting the Lock Strike Release Time Mode Door 1) Enter Programming Mode The default factory setting is 0004. GREEN The Tamper Siren feature requires the BL-D40 External Sounder. 2) Press "6"...

  • Page 15: Auxiliary Mode Reference Guide

    Auxiliary Mode Reference Guide The following are brief descriptions of each of the AC-F43's auxiliary modes. To use these features refer to "Setting the Auxiliary Mode" on page 27. AUXILIARY MODE 0 In auxiliary mode 0 the AC-F43 can function as a two door controller.
  • Page 16 between Normal and Secure Mode. By connecting a switch timer to AUXILIARY MODE 7 the auxiliary input you can for example automatically switch the AC- In auxiliary mode 7 the AC-F43 can trigger the auxiliary relay if it F43 from Normal Mode during office hours to secure mode after detects that the door has been ajar too long.

  • Page 17: Enrolling Primary And Secondary Codes

    Enrolling Primary and Secondary Codes using the Enrolling Primary & Secondary Codes Standard Method Primary Codes Mode Door 1) Enter Programming Mode GREEN - Primary Codes can only be enrolled to an empty User Slot, i.e a slot where there is no existing Primary Code. Mode Door 2) Press "7"...

  • Page 18: Deleting Primary And Secondary Codes

    Enrolling Secondary Codes using the Code Search Deleting Primary & Secondary Codes Method There are two methods to delete Primary and Secondary codes, the The Code Search feature enables you to quickly enroll a Secondary Standard Method and the Code Search Method. Code to a user who's slot number is unknown but who's primary code is known.

  • Page 19: Lock Strike Relay And Auxiliary Relay

    Deleting Primary and Secondary Codes using the Code Search Lock Strike Relay and Auxiliary Relay Method Code Assignment 1) Enter Programming Mode Mode Door GREEN When a Primary Code is enrolled for any user, that user is assigned rights to activate the Lock Strike Relay when they present a valid 2) Press "8"...

  • Page 20: Return To Factory Default Settings

    Lock Strike and Auxiliary Relay Code Assignment using the Return To Factory Default Settings Code Search Method Warning: 1) Enter Programming Mode Mode Door GREEN You must be very careful before using this command! Mode Door 2) Press "9" to enter Menu 9 Doing so will erase the entire memory which includes The Mode LED will turn green GREEN...

  • Page 21: Glossary

    Replacing a lost Programming Code Glossary valid users. In this mode the door Note: The AC-F43 must be in Normal Mode otherwise this will may be released by anyone pressing not work. Make sure that the Mode LED is green before Access Control: Primarily refers to the star button.
  • Page 22 Normal to Bypass Mode or vice versa. Fail Safe: The system setting in Relay: An electronically controlled Tamper Siren: The alert sound Normal / Secure Code: The four which a total power loss leaves the switch used for providing an Open activated when a Back Tamper or digit code used to change the connected door unlocked.

  • Page 23: Warranty

    LIMITED LIFETIME WARRANTY TERMS The terms of this warranty may not be varied by any person, whether or not purporting to represent or act on behalf of Rosslare. ROSSLARE ENTERPRISES LIMITED S (Rosslare) LIMITED This warranty represents the full extent of Rosslare's LIFETIME WARRANTY is applicable worldwide.

  • Page 24: Technical Support

    Technical Support International: Rosslare Enterprises Ltd. 905-912 Wing Fat Industrial Bldg., 12 Wang Tai Road, Kowloon Bay, Hong Kong. http://www.rosslaresecurity.com Tel: (852) 2795 5630 Fax: (852) 2795 1508 E-mail: info@rosslare.com.hk United States and Canada: Rosslare NAPDC Suite 238, 200 East Howard Street, Des Plaines, IL 60018 http://www.rosslaresecurity.com...
