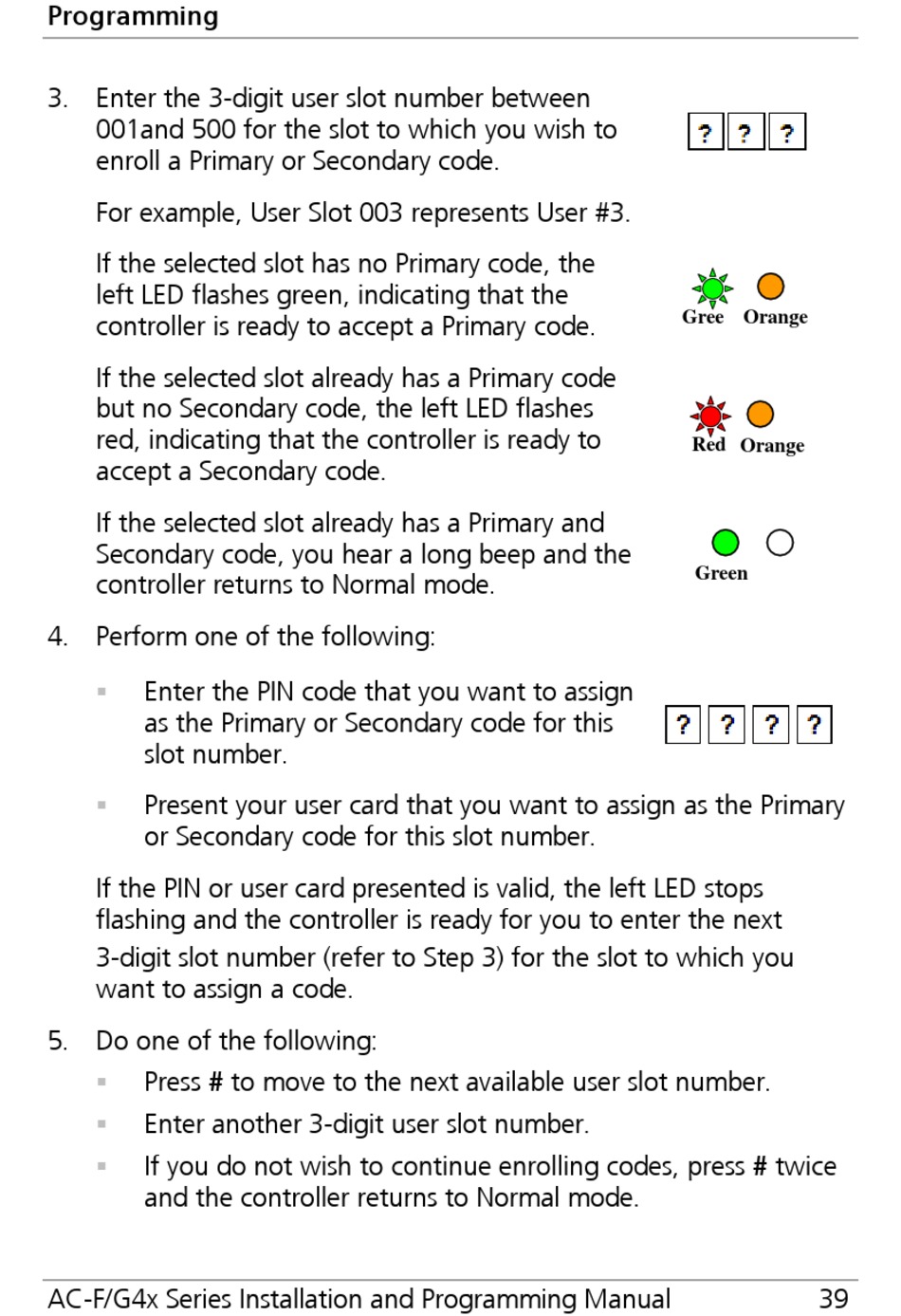

Rosslare AC-G4 Series Installation And Programming Manual page 39

Programming
3. Enter the 3-digit user slot number between
001and 500 for the slot to which you wish to
enroll a Primary or Secondary code.
For example, User Slot 003 represents User #3.
If the selected slot has no Primary code, the
left LED flashes green, indicating that the
controller is ready to accept a Primary code.
If the selected slot already has a Primary code
but no Secondary code, the left LED flashes
red, indicating that the controller is ready to
accept a Secondary code.
If the selected slot already has a Primary and
Secondary code, you hear a long beep and the
controller returns to Normal mode.
4. Perform one of the following:
 Enter the PIN code that you want to assign
as the Primary or Secondary code for this
slot number.
 Present your user card that you want to assign as the Primary
or Secondary code for this slot number.
If the PIN or user card presented is valid, the left LED stops
flashing and the controller is ready for you to enter the next
3-digit slot number (refer to Step 3) for the slot to which you
want to assign a code.
5. Do one of the following:
Press # to move to the next available user slot number.

 Enter another 3-digit user slot number.
If you do not wish to continue enrolling codes, press # twice

and the controller returns to Normal mode.
AC-F/G4x Series Installation and Programming Manual
Gree Orange
Red Orange
Green
