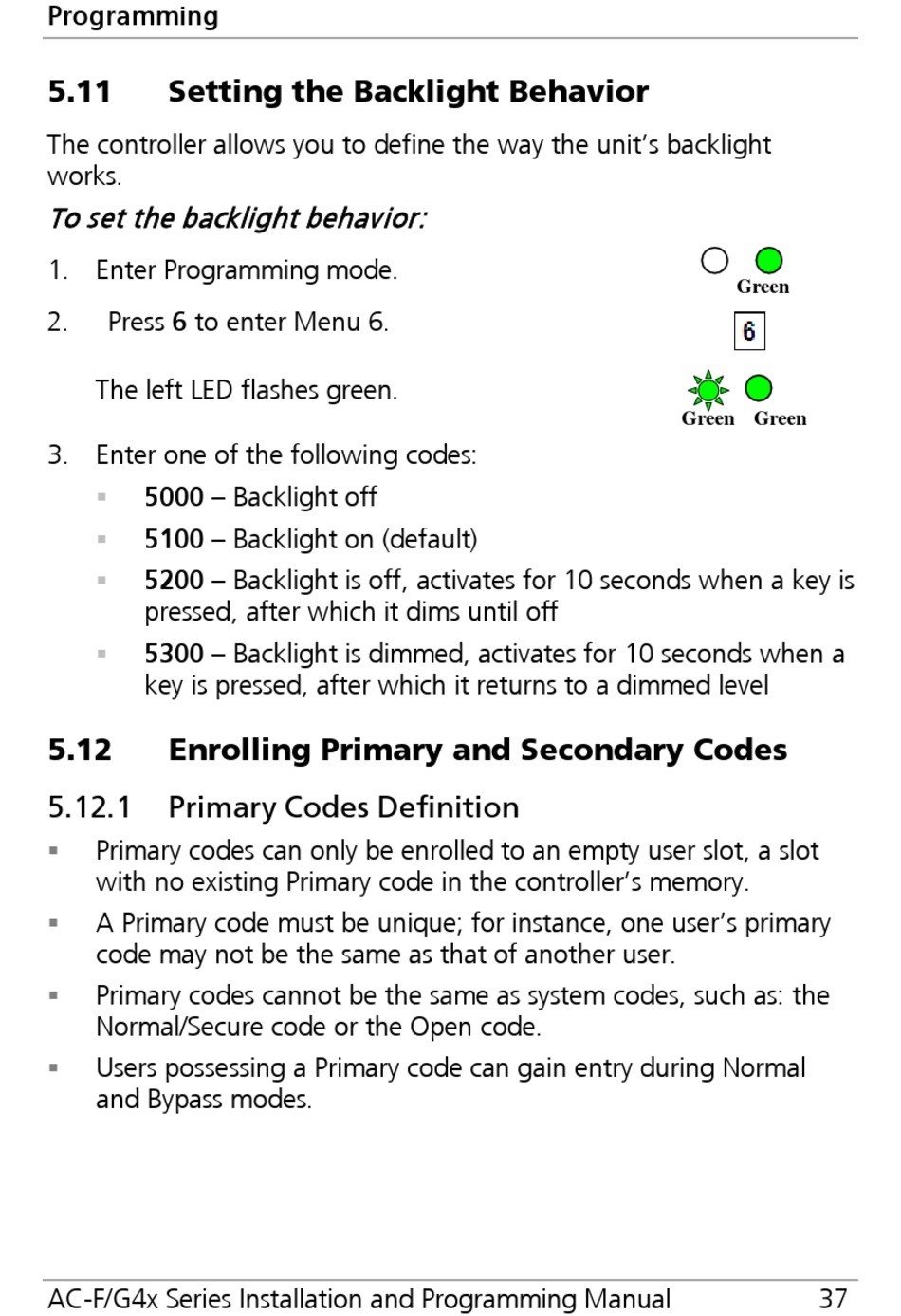

Setting The Backlight Behavior; Enrolling Primary And Secondary Codes; Primary Codes Definition - Rosslare AC-G4 Series Installation And Programming Manual

Programming
5.11

Setting the Backlight Behavior

The controller allows you to define the way the unit's backlight
works.
To set the backlight behavior:
1. Enter Programming mode.
Press 6 to enter Menu 6.
2.
The left LED flashes green.
3. Enter one of the following codes:
5000 – Backlight off

5100 – Backlight on (default)

5200 – Backlight is off, activates for 10 seconds when a key is

pressed, after which it dims until off
5300 – Backlight is dimmed, activates for 10 seconds when a

key is pressed, after which it returns to a dimmed level
5.12

Enrolling Primary and Secondary Codes

5.12.1

Primary Codes Definition

 Primary codes can only be enrolled to an empty user slot, a slot
with no existing Primary code in the controller's memory.
 A Primary code must be unique; for instance, one user's primary
code may not be the same as that of another user.
Primary codes cannot be the same as system codes, such as: the

Normal/Secure code or the Open code.
 Users possessing a Primary code can gain entry during Normal
and Bypass modes.
AC-F/G4x Series Installation and Programming Manual
Green
Green Green
37
