Introduction

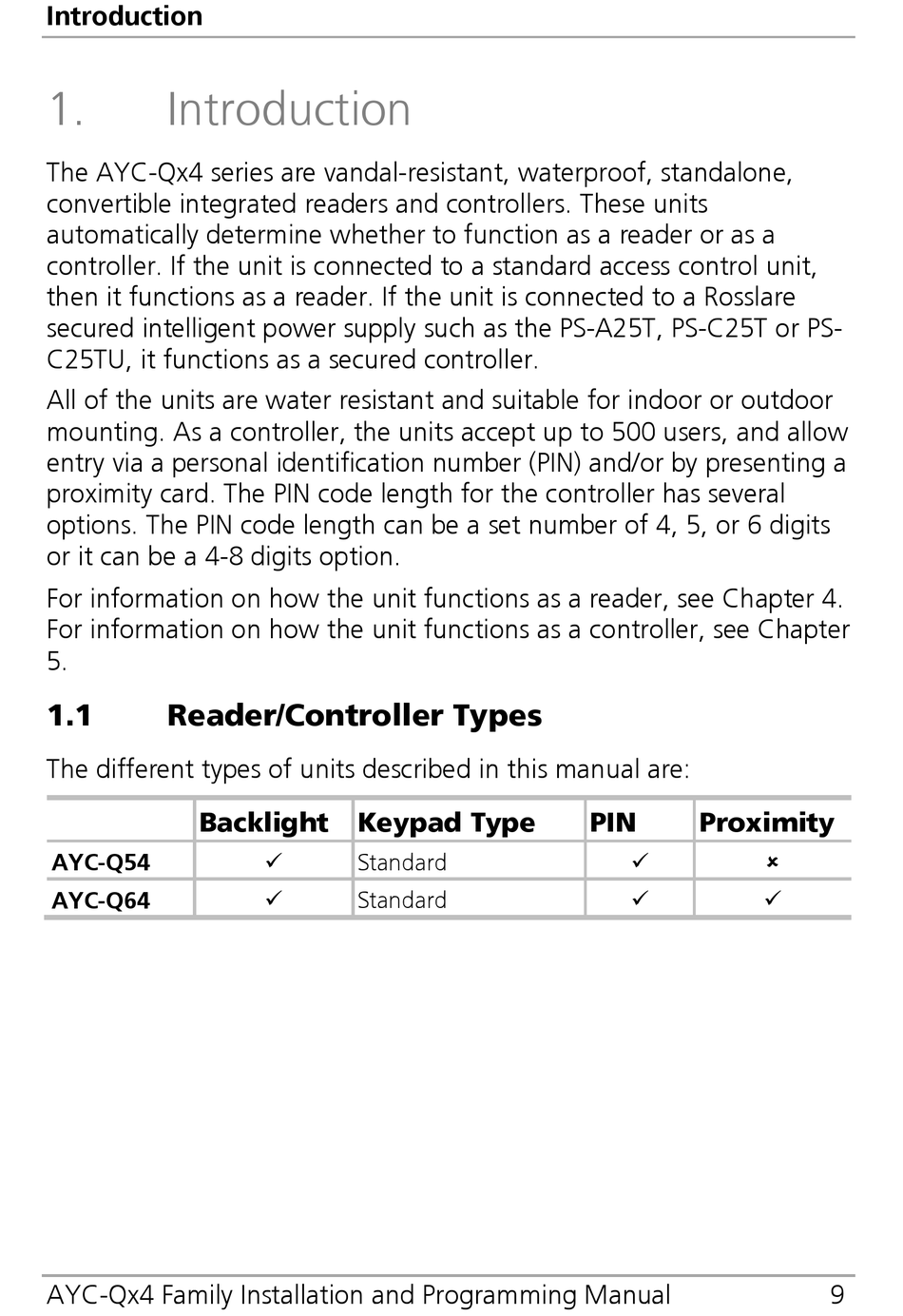

1. Introduction
The AYC-Qx4 series are vandal-resistant, waterproof, standalone,
convertible integrated readers and controllers. These units
automatically determine whether to function as a reader or as a
controller. If the unit is connected to a standard access control unit,
then it functions as a reader. If the unit is connected to a Rosslare
secured intelligent power supply such as the PS-A25T, PS-C25T or PS-
C25TU, it functions as a secured controller.
All of the units are water resistant and suitable for indoor or outdoor
mounting. As a controller, the units accept up to 500 users, and allow
entry via a personal identification number (PIN) and/or by presenting a
proximity card. The PIN code length for the controller has several
options. The PIN code length can be a set number of 4, 5, or 6 digits
or it can be a 4-8 digits option.
For information on how the unit functions as a reader, see Chapter 4.
For information on how the unit functions as a controller, see Chapter
5.
1.1

Reader/Controller Types

The different types of units described in this manual are:
Backlight
AYC-Q54
AYC-Q64
AYC-Qx4 Family Installation and Programming Manual
Keypad Type
 Standard
 Standard
PIN Proximity




