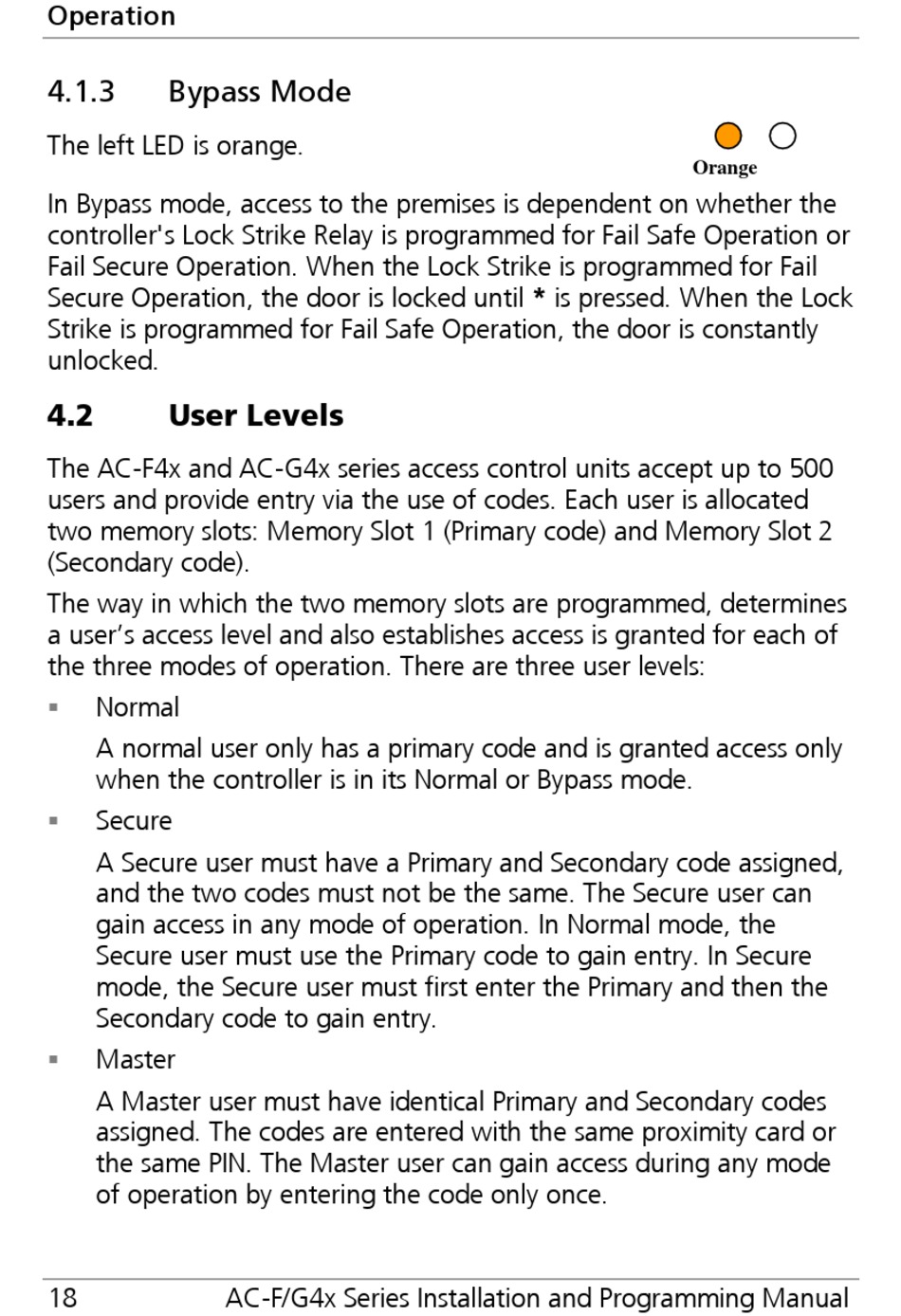

Bypass Mode; User Levels - Rosslare AC-G4 Series Installation And Programming Manual

Operation
4.1.3

Bypass Mode

The left LED is orange.
In Bypass mode, access to the premises is dependent on whether the
controller's Lock Strike Relay is programmed for Fail Safe Operation or
Fail Secure Operation. When the Lock Strike is programmed for Fail
Secure Operation, the door is locked until * is pressed. When the Lock
Strike is programmed for Fail Safe Operation, the door is constantly
unlocked.
4.2

User Levels

The AC-F4x and AC-G4x series access control units accept up to 500
users and provide entry via the use of codes. Each user is allocated
two memory slots: Memory Slot 1 (Primary code) and Memory Slot 2
(Secondary code).
The way in which the two memory slots are programmed, determines
a user's access level and also establishes access is granted for each of
the three modes of operation. There are three user levels:
 Normal
A normal user only has a primary code and is granted access only
when the controller is in its Normal or Bypass mode.
 Secure
A Secure user must have a Primary and Secondary code assigned,
and the two codes must not be the same. The Secure user can
gain access in any mode of operation. In Normal mode, the
Secure user must use the Primary code to gain entry. In Secure
mode, the Secure user must first enter the Primary and then the
Secondary code to gain entry.
Master

A Master user must have identical Primary and Secondary codes
assigned. The codes are entered with the same proximity card or
the same PIN. The Master user can gain access during any mode
of operation by entering the code only once.
18 AC-F/G4x Series Installation and Programming Manual
Orange
