Introduction

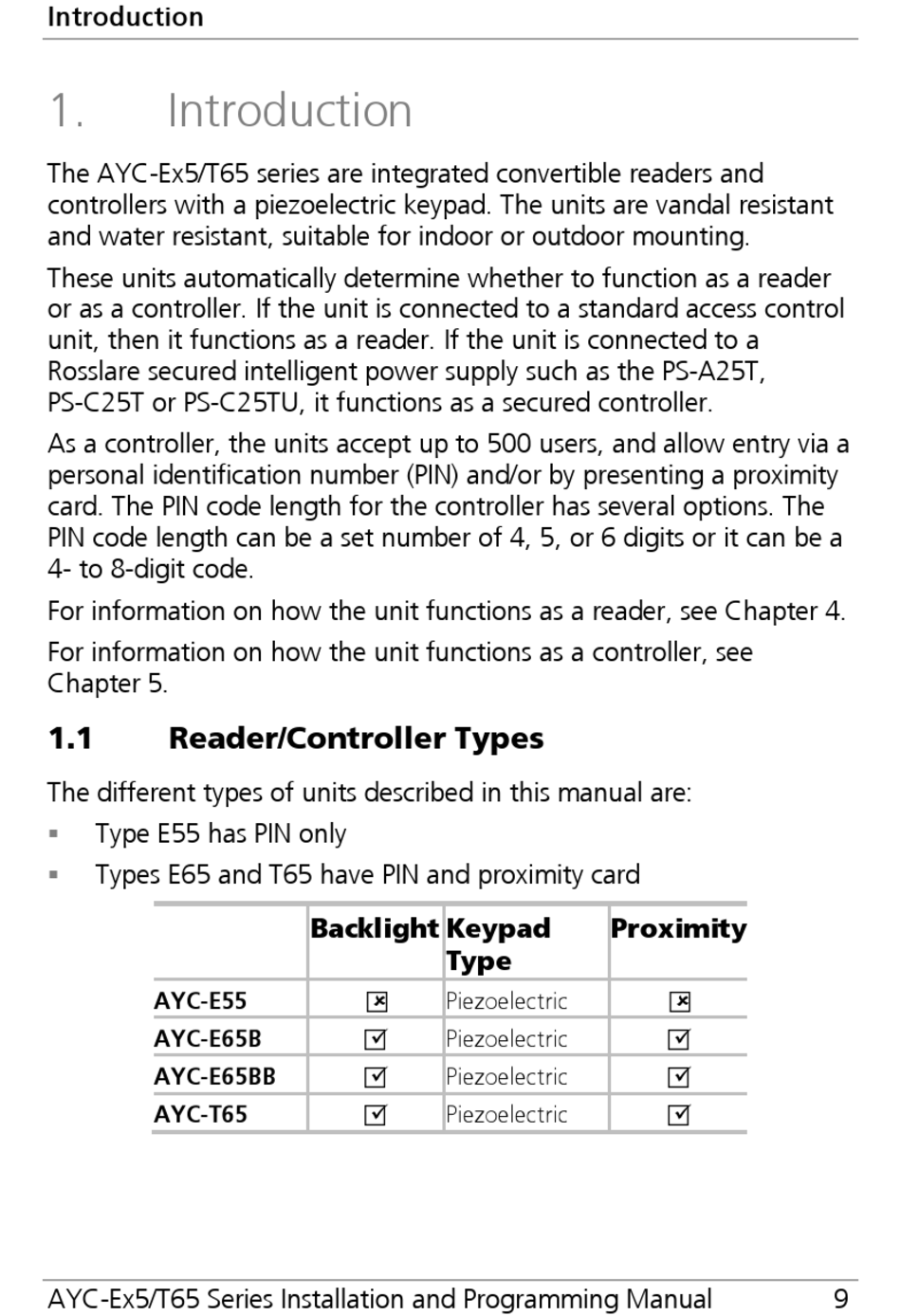

1. Introduction
The AYC-Ex5/T65 series are integrated convertible readers and
controllers with a piezoelectric keypad. The units are vandal resistant
and water resistant, suitable for indoor or outdoor mounting.
These units automatically determine whether to function as a reader
or as a controller. If the unit is connected to a standard access control
unit, then it functions as a reader. If the unit is connected to a
Rosslare secured intelligent power supply such as the PS-A25T,
PS-C25T or PS-C25TU, it functions as a secured controller.
As a controller, the units accept up to 500 users, and allow entry via a
personal identification number (PIN) and/or by presenting a proximity
card. The PIN code length for the controller has several options. The
PIN code length can be a set number of 4, 5, or 6 digits or it can be a
4- to 8-digit code.
For information on how the unit functions as a reader, see Chapter 4.
For information on how the unit functions as a controller, see
Chapter 5.
1.1

Reader/Controller Types

The different types of units described in this manual are:
 Type E55 has PIN only
 Types E65 and T65 have PIN and proximity card
AYC-E55
AYC-E65B
AYC-E65BB
AYC-T65
AYC-Ex5/T65 Series Installation and Programming Manual
Backlight Keypad
Type
 Piezoelectric
 Piezoelectric
 Piezoelectric
 Piezoelectric
Proximity




9
