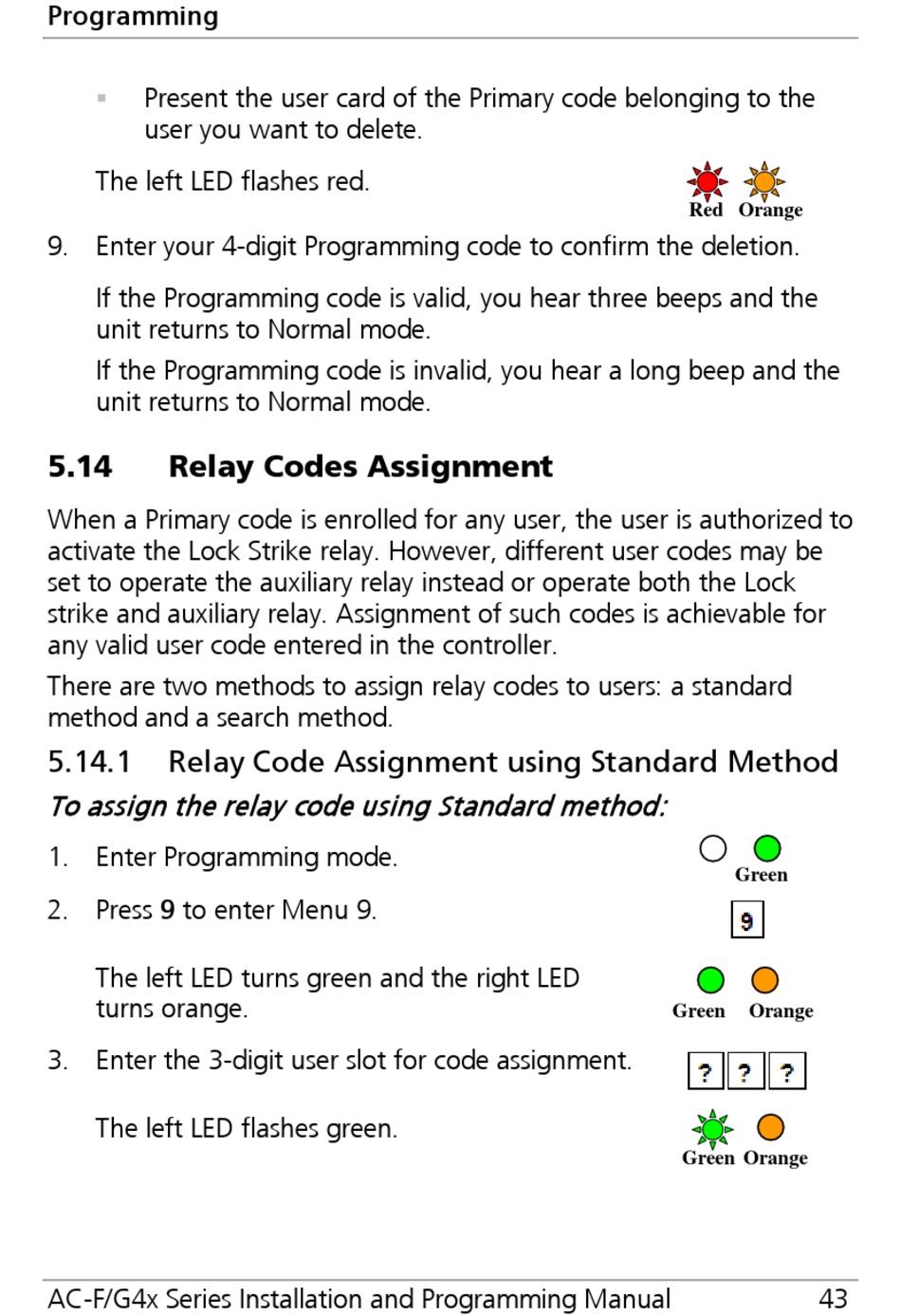

Programming
Present the user card of the Primary code belonging to the

user you want to delete.
The left LED flashes red.
9. Enter your 4-digit Programming code to confirm the deletion.
If the Programming code is valid, you hear three beeps and the
unit returns to Normal mode.
If the Programming code is invalid, you hear a long beep and the
unit returns to Normal mode.
5.14

Relay Codes Assignment

When a Primary code is enrolled for any user, the user is authorized to
activate the Lock Strike relay. However, different user codes may be
set to operate the auxiliary relay instead or operate both the Lock
strike and auxiliary relay. Assignment of such codes is achievable for
any valid user code entered in the controller.
There are two methods to assign relay codes to users: a standard
method and a search method.
5.14.1

Relay Code Assignment using Standard Method

To assign the relay code using Standard method:
1. Enter Programming mode.
2. Press 9 to enter Menu 9.
The left LED turns green and the right LED
turns orange.
3. Enter the 3-digit user slot for code assignment.
The left LED flashes green.
AC-F/G4x Series Installation and Programming Manual
Red Orange
Green
Green Orange
Green Orange
43
