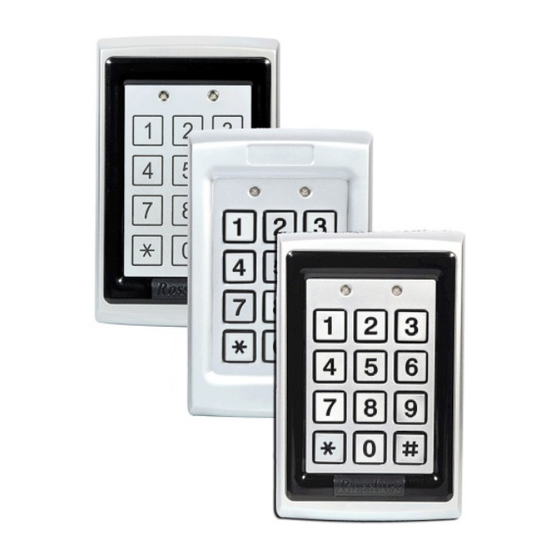

- Page 1 AC-Q4x Family Anti-Vandal Standalone Controllers Installation and Programming Manual Models: AC-Q41H/HB AC-Q41HP AC-Q41SB AC-Q42H/HB AC-Q42HP AC-Q42SB AC-Q44...
- Page 2 ROSSLARE. ROSSLARE reserves the right to revise and change this document at any time, without being obliged to announce such revisions or changes beforehand or after the fact.
-
Page 3: Table Of Contents
Table of Contents Table of Contents Introduction ..............9 Controller Types ..............9 Key Features ................9 Box Content ................. 10 Ancillary Equipment .............. 11 Front Panel Description ............11 Technical Specifications ..........12 Installation ..............14 Mounting the Controller ............14 Wiring the Controller ............ - Page 4 Table of Contents 4.4.1 Auxiliary Input and Output ............28 4.4.2 REX Button ................... 28 4.4.3 Tamper Feature ................28 4.4.4 Lockout Feature (Keypad/Card Tamper) ........29 4.4.5 BL-D40 External Sounder .............. 29 Programming ............30 Introduction ................30 5.1.1 Entering the Programming Mode..........
- Page 5 Table of Contents 5.13.1 Standard Method for Deleting Codes ........... 50 5.13.2 Search Method for Deleting Codes ..........51 5.14 Relay Codes Assignment ............51 5.14.1 Relay Code Assignment using Standard Method ......52 5.14.2 Relay Code Assignment using Search Method ......53 5.15 Changing PIN Code Length/Factory Default Settings ....
- Page 6 List of Figures List of Figures Figure 1: Front Panel..................11 Figure 2: Drilling Holes Identification ............... 14 Figure 3: Pre-Wired Connection for Lock Strike Relay & REX......17 Figure 4: Pre-Wired Connection for Auxiliary Input & Output ......18 Figure 5: Pre-Wired Connection for the BL-D40 External Sounder ....
-
Page 7: List Of Tables
List of Tables List of Tables Table 1: Wire Color Guide ................16 Table 2: Programming Menus................31 Table 3: Quick Reference Guide for Auxiliary Mode Setting ......39 AC-Q4x Family Installation and Programming Manual... - Page 8 ROSSLARE exclusive warranty and liability is limited to the warranty and liability statement provided in an appendix at the end of this document.
-
Page 9: Introduction
AC-Q41H Standard AC-Q41HB Standard AC-Q41HP Standard AC-Q41SB Standard AC-Q42H Standard AC-Q42HB Standard AC-Q42HP Standard AC-Q42SB Standard ... -
Page 10: Box Content
Supplied with mounting template for easy installation Box Content Before beginning, verify that all of the following is in the box. If anything is missing please report the discrepancy to your nearest Rosslare Office. One unit One drilling template (label/sticker) One security spline key ... -
Page 11: Ancillary Equipment
Introduction Ancillary Equipment The following ancillary equipment may be required to complete your installation: Electric Lock Strike Mechanism – fail safe (power to lock) or fail secure (power to open) Power Supply with Backup Battery – 12 to 24 VDC (from a ... -
Page 12: Technical Specifications
Technical Specifications Technical Specifications Q41H Q41HB Q42H Q42HB Q41SB Q41HP Q42SB Q42HP Input 12–24 VDC Voltage 12–24 VAC 16–24 VAC 12–24 VAC 16–24 VAC Maximum Heater 100 mA 130 mA 125 mA 145 mA 130 mA 145 mA 125 mA Input Current Heater... - Page 13 120 x 76 x 22 mm (4.7 x 3.0 x 0.9 in.) Weight 440 g (1.0 lb) 521 g (1.2 lb) * Measured using a Rosslare proximity card or equivalent. Range also depends on electrical environment and proximity to metal. AC-Q4x Family Installation and Programming Manual...
-
Page 14: Installation
Installation Installation Installation of an RFID reader adjacent to metallic surfaces might alter the reader’s specifications. To diminish this interference, use a plastic spacer when mounting the reader. Mounting the Controller Prior to starting, select the location where the controller unit is to be mounted. -
Page 15: Wiring The Controller
10-conductor cable or with a screw-type terminal block: Pre-wired Cabling Models Terminal Block Models AC-Q41SB AC-Q41H/HB/HP AC-Q42SB AC-Q42H/HB AC-Q44 3.2.1 Pre-wired Models These controllers come with 60-cm 24-AWG wiring. To wire the controller: 1. Cut and strip the conductors to the necessary length. - Page 16 Installation Wiring for the BL-D40 External Sounder (Figure 5) Table 1: Wire Color Guide Color Description V input Black Ground Green REX/BL White In/Monitor Purple Lock: Com Gray Lock: N.O. Brown Lock: N.C. Blue Aux: Com Yellow Aux: N.O. Orange Aux: N.C.
-
Page 17: Figure 3: Pre-Wired Connection For Lock Strike Relay & Rex
Installation Figure 3: Pre-Wired Connection for Lock Strike Relay & REX AC-Q4x Family Installation and Programming Manual... -
Page 18: Figure 4: Pre-Wired Connection For Auxiliary Input & Output
Installation Figure 4: Pre-Wired Connection for Auxiliary Input & Output AC-Q4x Family Installation and Programming Manual... -
Page 19: Figure 5: Pre-Wired Connection For The Bl-D40 External Sounder
Installation Figure 5: Pre-Wired Connection for the BL-D40 External Sounder AC-Q4x Family Installation and Programming Manual... -
Page 20: Terminal Block Models
Installation 3.2.2 Terminal Block Models These controllers come with removable terminal blocks that are pushed on pins on the motherboard of the controllers. To wire the terminal blocks: 1. Route the wires or cable through the large hole in the back cover See Figure 6. -
Page 21: Figure 7: Terminal Block Wiring Of The Lock Strike Relay & Rex
Installation Figure 7: Terminal Block Wiring of the Lock Strike Relay & REX AC-Q4x Family Installation and Programming Manual... -
Page 22: Figure 8: Terminal Block Wiring Of The Auxiliary Input & Output
Installation Figure 8: Terminal Block Wiring of the Auxiliary Input & Output AC-Q4x Family Installation and Programming Manual... -
Page 23: Figure 9: Terminal Block Wiring Of The Bl-D40 External Sounder
Installation Figure 9: Terminal Block Wiring of the BL-D40 External Sounder AC-Q4x Family Installation and Programming Manual... -
Page 24: Operation
Operation Operation • In the Operation chapter, “code” refers to a PIN code or proximity card depending on the unit you have. • Memory slots can be a proximity card or PIN code depending on the unit you have. Modes of Operation The control units have three modes of operation. -
Page 25: User Levels
Operation When the Lock Strike relay is programmed for failsafe operation, the door is constantly unlocked. In case of power failure, once the power is restored, the controller returns to Normal mode for security reasons. User Levels AC-Q4x series access control units accept up to 500 users and provide entry via the use of codes. -
Page 26: Switching Operational Modes
Operation Switching Operational Modes The three modes of operation defined above can be changed through a few steps. 4.3.1 From Normal to Secure Mode The default factory setting for the normal/secure code is 3838. To change from Normal to Secure mode: Mode Door 1. -
Page 27: From Normal To Bypass Mode
Operation The auxiliary input of the controller can also be used to switch the mode of operation from Secure to Normal and vice versa. If the auxiliary input is selected, it de-activates the Norma/Secure mode code (see Section 5.8). 4.3.3 From Normal to Bypass Mode By default, there is no Normal/Bypass code. -
Page 28: Special Operational Features
Operation Special Operational Features Some installation-specific features are exercised, as required by the system. These features are implemented as shown in Figure 3 through Figure 9. 4.4.1 Auxiliary Input and Output For optimum usability in different applications, the controller’s auxiliary input and output can be configured in ten different modes of operation (see Section 5.8). -
Page 29: Lockout Feature (Keypad/Card Tamper)
(opened or removed from the wall). The length of the siren can also be programmed in the controller. The controller communicates with the BL-D40 via a Rosslare proprietary protocol. If the BL-D40 receives an unrecognized code over its communication line or communications between the controller and the BL-D40 are severed, the strobe flashes repeatedly, until the communication problem has been resolved. -
Page 30: Programming
Programming Programming • In the Programming chapter, “code” refers to a PIN code or proximity card depending on the unit you have. • When entering a PIN or presenting a proximity card is mentioned, the meaning may vary between units. Introduction Programming an AC-Q4x series Access Control unit is done solely via the unit’s keypad-driven Programming Menu System. - Page 31 Programming Table 2 shows all the programming menus, with default factory codes and settings. Table 2: Programming Menus Menu Description Default Section 4 Digits 5 Digits 6 Digits 4-8 Digits Change Open code 2580 25802 258025 25802580 Change Auxiliary code 0852 08520 085208...
-
Page 32: Entering The Programming Mode
Programming 5.1.1 Entering the Programming Mode • The controller must be in Normal mode to enter the programming mode. • The factory default 4-digit programming code is 1234. • If a Programming code is not entered within 5 seconds, the controller returns to Normal mode. -
Page 33: Changing The Open Code
Programming Changing the Open Code The open code is mainly used as a method to quickly test the Lock Strike relay during installation. The factory 4-digit default setting for the open code is 2580. For security reasons, when the first user is added to the controller or the auxiliary code is changed, the default open code is automatically deleted;... -
Page 34: Enter Programming Mode
Programming • Auxiliary code does not function in Secure mode. • Auxiliary code only works when the auxiliary mode is 0, 1, 8 or 9. • Wrong entries: You hear a long beep and the controller returns to Normal mode. •... -
Page 35: Changing The Normal/Secure Code
Programming Mode Door You hear three beeps. Green The system returns to Normal mode. Changing the Normal/Secure Code • When the auxiliary mode is 1, 2, 3 or 4, the auxiliary input takes priority over the Normal/Secure code. • For wrong entries, you hear a long beep and the controller returns to Normal mode. -
Page 36: Setting Fail Safe/Secure Operation
Programming To change the Normal/By pass code: Mode Door 1. Enter Programming mode. Green 2. Press 5 to enter Menu 5. The Mode indicator flashes orange. Mode Door Orange Green There are four different ways to program the Normal/Bypass code and door chime: ... -
Page 37: Setting Auxiliary Modes
Programming The Mode indicator flashes green. Mode Door Green Green 3. Construct a code using the following instructions: First Digit For fail secure operation, the first digit is set to 0. For fail safe operation, the first digit is set to 1. Second Digit Siren time, enter any number from 0 to 9 (minutes). - Page 38 Programming The Mode indicator flashes green. Mode Door Green Green 3. Construct a code using the following instructions: Table 3 provides a quick reference listing for the auxiliary modes and settings) Auxiliary Mode Auxiliary Setting Auxiliary Relay activation is subject to the user’s Auxiliary code assignment (excluding Shunt, which is activated by all users).
- Page 39 Programming Table 3: Quick Reference Guide for Auxiliary Mode Setting Auxiliary Auxiliary Input Auxiliary Output Activated Auxiliary Auxiliary Settings (in seconds) Mode Function Relay AUX REX Valid code or AUX REX N.O. 01 to 99 Aux. Relay Release Time 00 Aux. relay toggle Normal/Secure switch Valid code N.O.
-
Page 40: Detailed Reference Guide
Programming 5.8.2 Detailed Reference Guide The following subsections provide brief descriptions of each auxiliary mode. To implement the features of each mode, see Section 5.8.1. 5.8.2.1 Auxiliary Mode 0 Auxiliary input function: Activates the auxiliary output Auxiliary output activated by: Valid user code, Auxiliary code, Auxiliary input For example, in Auxiliary Mode 0, the controller can function as a two-door controller. - Page 41 Programming be activated. The auxiliary input can switch the mode of operation of the controller between Normal and Secure mode. By connecting a switch timer or alarm system output to the auxiliary input, the controller can be automatically switched from Normal mode (during office hours) to Secure mode (after office hours).
- Page 42 Programming matches the condition of the magnetic contact switch; if the door opens, the auxiliary relay opens; if the door closes, the auxiliary relay closes. When a valid code is entered, a countdown for maximum Shunt time, as defined by the auxiliary setting, begins; if the door is not closed before the maximum Shunt time, the alarm is triggered.
-
Page 43: Auxiliary Mode
Programming 5.8.2.9 Auxiliary Mode 8 Auxiliary input function: Green LED control Auxiliary output activated by: Valid user code, Auxiliary code For example, in Auxiliary Mode 8, the controller can function as a two-door controller and also provide indicator functionality control. The auxiliary relay is connected to the lock on the second door. -
Page 44: Keypad Heater Operation
Programming Keypad Heater Operation This section is not applicable for AC-Q44 (without keypad heater). The controllers contain a built-in keypad heater. Once the heater circuitry is activated, the heater turns on when the ambient temperature drops to 4±1°C and remains on until the keypad temperature rises to 7(+2 or -1)°C. -
Page 45: Setting The Lockout Feature
Programming 5.10 Setting the Lockout Feature If the controller is presented with wrong codes (PIN or Card) consecutively several times, the unit goes into lockout mode. When a lockout occurs, the controller keypad and reader are locked so no codes can be entered until the set lockout period expires. During Lockout, Mode LED is Off, Door LED flashes Red, and the controller beeps every two seconds The default setting for the Lockout Feature is 4000 (Lockout... -
Page 46: Backlight And Led Behavior
Programming 5.11 Backlight and LED Behavior This section is applicable for AC-Q4xHB/SB models only (backlight). The controller allows you to define the way the unit’s Backlight as well as the Mode and Door LEDs work. To define the Backlight and LEDs behavior: Mode Door 1. -
Page 47: Enrolling Codes
Programming 5.12 Enrolling Codes 5.12.1 Primary Codes Definition Primary codes can only be enrolled to an empty user slot, a slot with no existing primary code in the controller’s memory. A primary code must be unique; for instance, one user’s primary ... -
Page 48: Standard Method For Codes Enrolling
Programming 5.12.4 Standard Method for Codes Enrolling To enroll codes using the Standard method: Mode Door 1. Enter Programming mode. Green 2. Press 7 to enter Menu 7. Mode Door The Door indicator turns orange. Orange 3. Enter the 3-digit user slot number into the memory (from 001 to 500) so as to enroll a primary or secondary code. -
Page 49: Search Method For Codes Enrolling
Programming 5. Enter the code to be assigned as the primary or secondary code for this slot number. If the code entered is valid, the Mode indicator stops flashing and the controller is ready for the next 3-digit slot number (Step 3) or press # to move to the next slot number (Step 4). -
Page 50: Deleting Codes
Programming 6. Enter the code to be used as the secondary code. If the secondary code is valid, the controller beeps three times and returns to Normal mode. If the secondary code is invalid, the controller produces a long beep and waits for a valid secondary code to be entered. 5.13 Deleting Codes There are two methods to delete primary and secondary codes: a... -
Page 51: Search Method For Deleting Codes
Programming 4. Enter your programming code to confirm the deletion. If the programming code is valid, three beeps are heard and the controller returns to Normal mode. If the programming code is invalid, a long beep is heard and the controller returns to Normal mode. -
Page 52: Relay Code Assignment Using Standard Method
Programming strike and auxiliary relay. Assignment of such codes is achievable for any valid user code entered in the controller. There are two methods to assign relay codes to users: a standard method and a search method. 5.14.1 Relay Code Assignment using Standard Method To assign the relay code using Standard method: Mode Door... -
Page 53: Relay Code Assignment Using Search Method
Programming 5.14.2 Relay Code Assignment using Search Method To assign the relay code using Search method: Mode Door 1. Enter Programming mode. Green 2. Press 9 to enter Menu 9. Mode Door The Mode indicator turns green. Green Orange The Door indicator turns orange 3. -
Page 54: Changing Pin Code Length/Factory Default Settings
Programming 5.15 Changing PIN Code Length/Factory Default Settings You must be very careful before using this command! Changing the PIN code length also erases the entire memory contents, including all user and special codes, and returns all codes to their factory default settings. To change PIN code length: Mode Door... -
Page 55: Replacing A Programming Code
Programming 5.16 Replacing a Programming Code The controller must be in Normal mode for the procedure to work. Ensure that the Mode indicator is green before proceeding. To replace a Programming code: 1. Remove power from the controller. 2. Press and hold the REX pushbutton. 3. -
Page 56: Limited Warranty
The full ROSSLARE Limited Warranty Statement is available in the Quick Links section on the ROSSLARE website at www.rosslaresecurity.com. Rosslare considers any use of this product as agreement to the Warranty Terms even if you do not review them. AC-Q4x Family Installation and Programming Manual... -
Page 57: United States And Canada
+86 755 8610 6842 Fax: +86 755 8610 6101 Rosslare Security Products, Inc. support.cn@rosslaresecurity.com Southlake, TX, USA Toll Free: +1-866-632-1101 India Local: +1-817-305-0006 Rosslare Electronics India Pvt Ltd. Fax: +1-817-305-0069 Tel/Fax: +91 20 40147830 support.na@rosslaresecurity.com Mobile: +91 9975768824 Europe sales.in@rosslaresecurity.com Rosslare Israel Ltd.
