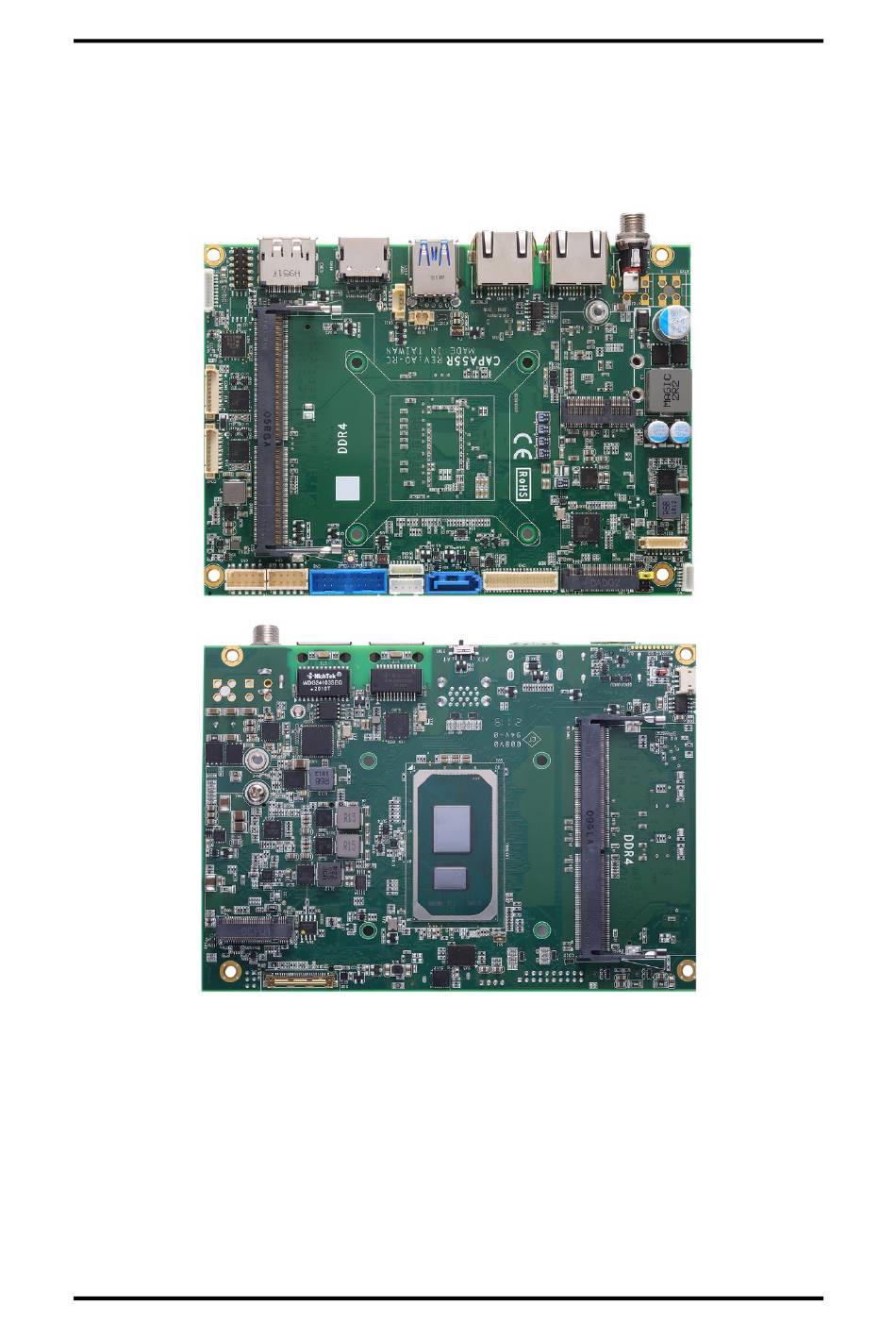

The CAPA55R is a 3.5" board supporting 11
processor. It delivers outstanding system performance through high-bandwidth interfaces,
multiple I/O functions for interactive applications and various embedded computing solutions.
The CAPA55R has two 260-pin unbuffered SO-DIMM socket for single channel DDR4
2400/3200 MHz memory with maximum capacity up to 64GB. There are two Gigabit/Fast
Ethernet ports, one SATA port with transfer rate up to 6Gb/s, three USB 3.2 Gen 2 super speed
compliant, four USB 2.0 high speed compliant, and HD audio link that can achieve the best
stability and reliability for industrial applications. Additionally, it provides you with unique
embedded features, such as two serial ports (RS-232/422/485) and 3.5" form factor that
applies an extensive array of PC peripherals.

Introduction

Introduction
th Generation Intel ® Core
CAPA55R Capa Board
Section 1
TM i7/ i5/ i3 and Celeron ®
