CAPA55R Capa Board

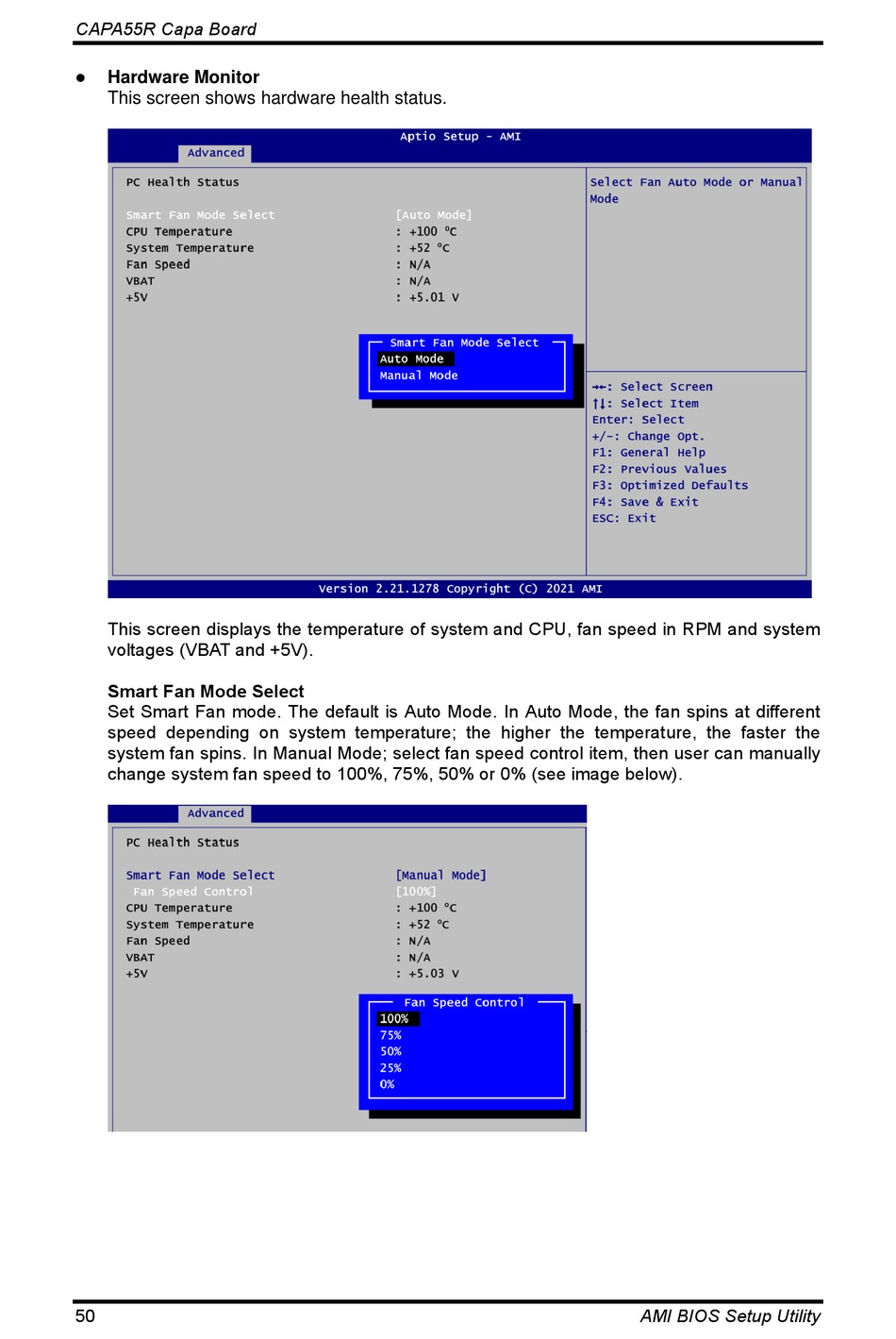

⚫ Hardware Monitor
This screen shows hardware health status.
This screen displays the temperature of system and CPU, fan speed in RPM and system
voltages (VBAT and +5V).
Smart Fan Mode Select
Set Smart Fan mode. The default is Auto Mode. In Auto Mode, the fan spins at different
speed depending on system temperature; the higher the temperature, the faster the
system fan spins. In Manual Mode; select fan speed control item, then user can manually
change system fan speed to 100%, 75%, 50% or 0% (see image below).
50 AMI BIOS Setup Utility
