SHB110 Socket M Full-Size SBC User's Manual
C h a p t e r 1

Introduction

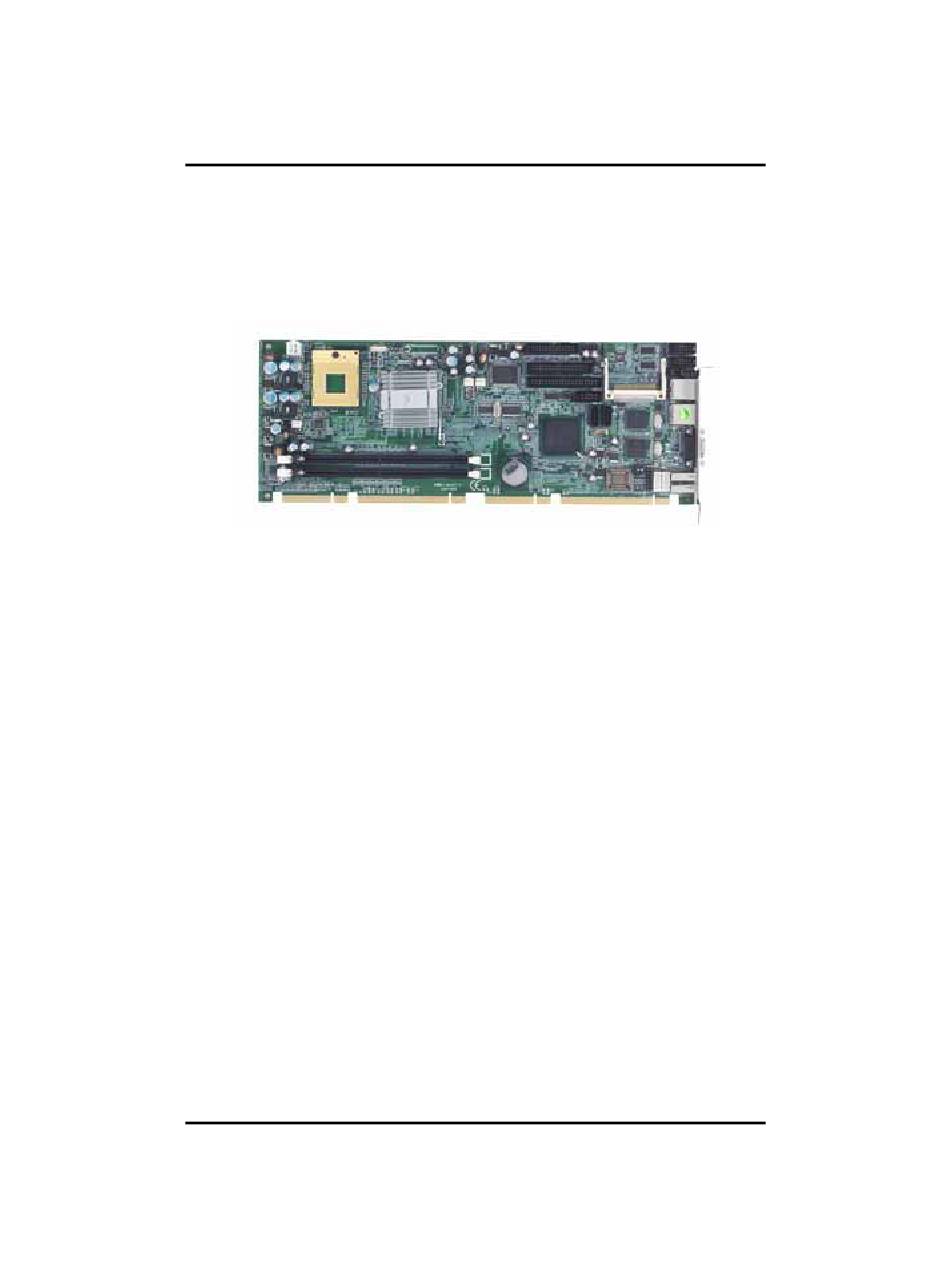

The SHB110 PICMG 1.3 full-size Single Board Computer supports
™ ™ ™
®
Intel Core 2 Duo/ Core Duo/Core Solo processors with FSB
®
533/667 MHz. The board integrates chipsets Intel 945GME and
ICH7M-DH that deliver outstanding system performance through high-
bandwidth interfaces, multiple I/O functions for interactive applications
and various embedded computing solutions. There are two DDR2
DIMM sockets for dual channel DDR2 533/667, maximum memory
capacity up to 4GB. The board also features Ethernet 10/100/1000Mb,
Dual PCI-Express LAN, and two serial ATA channels for a tatal of two
serial ATA hard drives at maximum transfer rate up to 300MB/sec.
Four USB 2.0 Port and built-in high definition audio codec can
achieve the best stability and reliability for industrial applications.
Introduction
1
