4.5

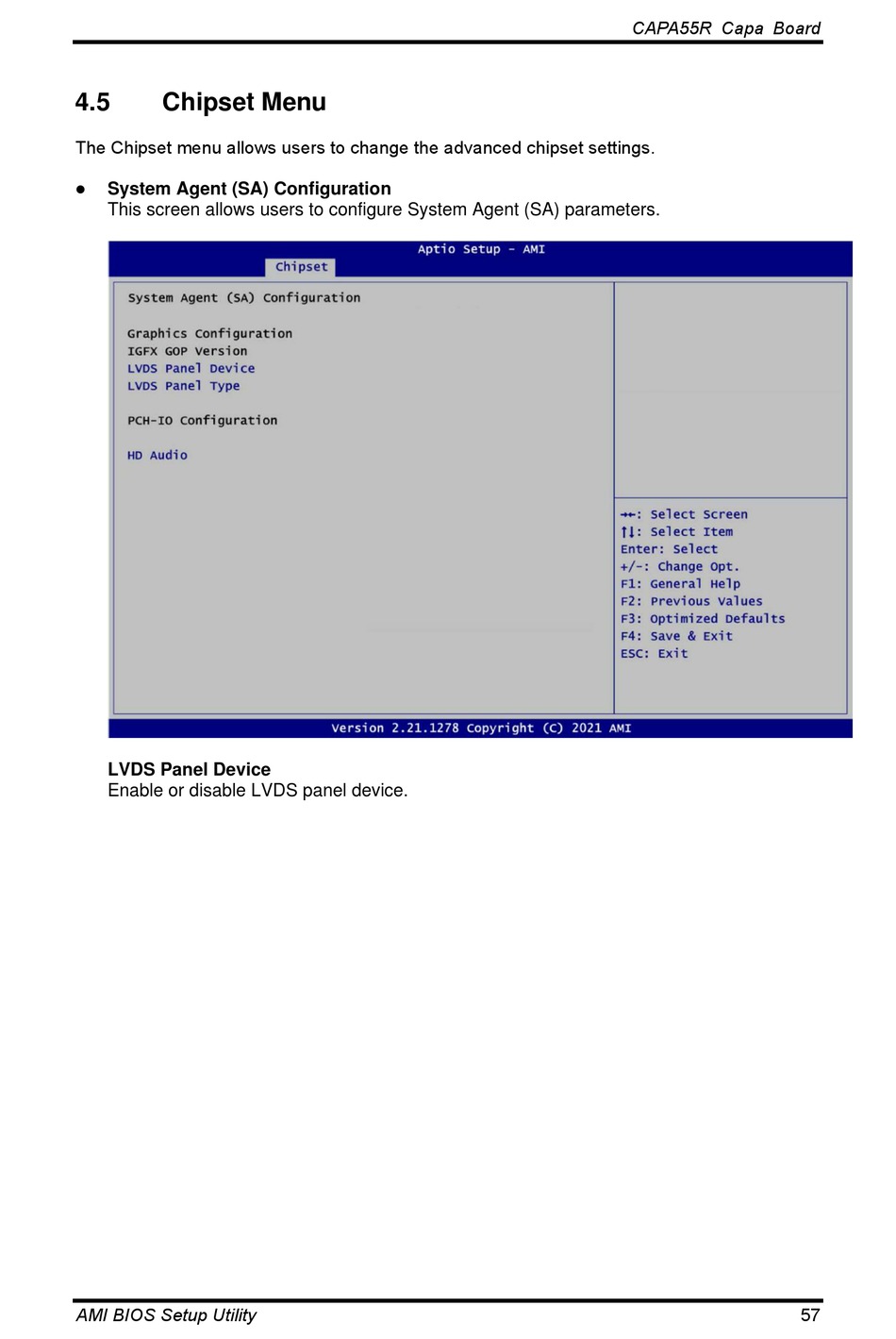

Chipset Menu
The Chipset menu allows users to change the advanced chipset settings.
⚫
System Agent (SA) Configuration
This screen allows users to configure System Agent (SA) parameters.
LVDS Panel Device
Enable or disable LVDS panel device.
AMI BIOS Setup Utility
CAPA55R Capa Board
57
