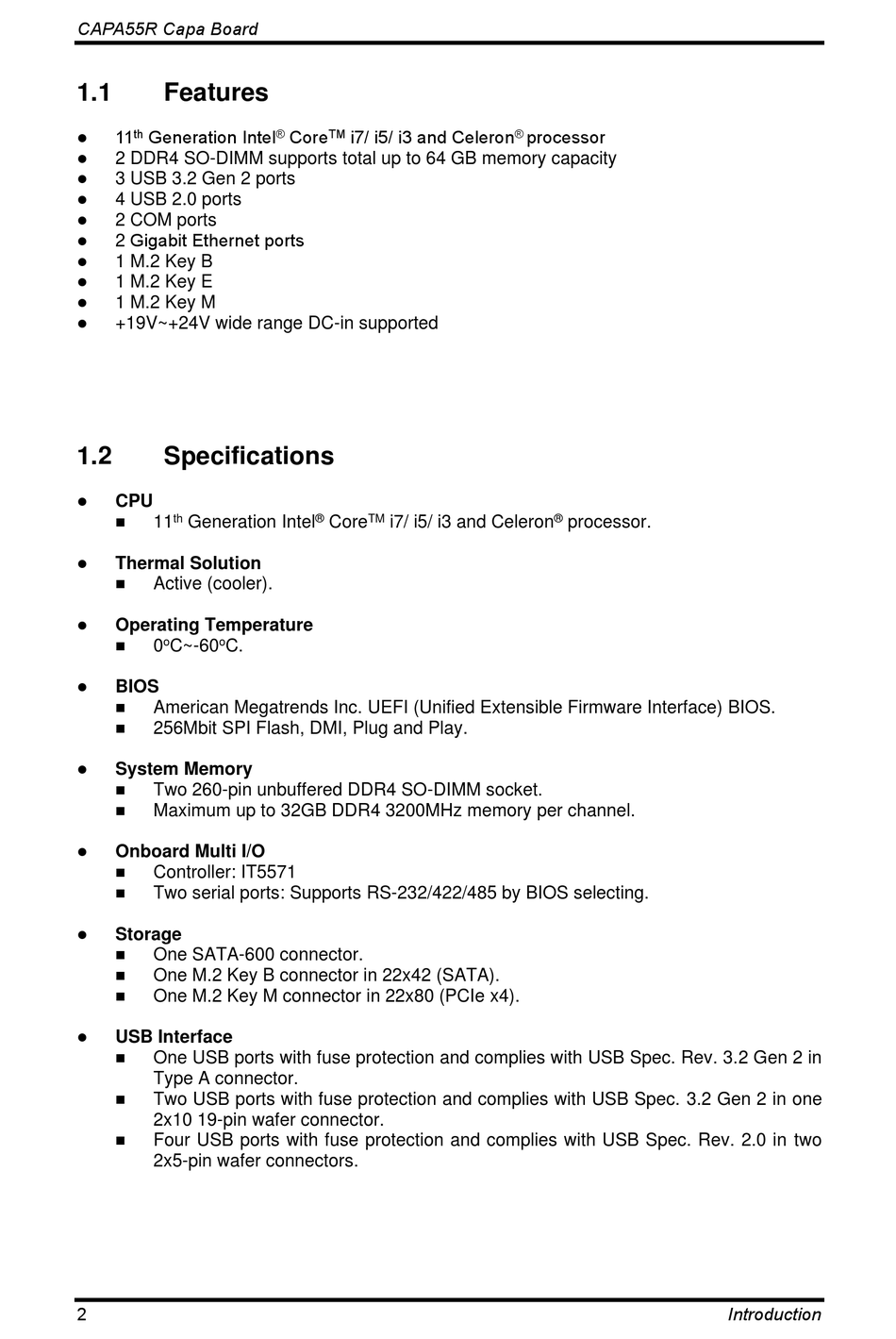

CAPA55R Capa Board
1.1

Features

11 th Generation Intel
⚫
⚫ 2 DDR4 SO-DIMM supports total up to 64 GB memory capacity
⚫ 3 USB 3.2 Gen 2 ports
⚫ 4 USB 2.0 ports
⚫
2 COM ports
2 Gigabit Ethernet ports
⚫
⚫ 1 M.2 Key B
⚫ 1 M.2 Key E
⚫ 1 M.2 Key M
⚫ +19V~+24V wide range DC-in supported
1.2

Specifications

⚫
CPU
th
◼ 11 Generation Intel
⚫ Thermal Solution
◼ Active (cooler).
⚫
Operating Temperature
◼ o o
0 C~-60 C.
⚫ BIOS
◼ American Megatrends Inc. UEFI (Unified Extensible Firmware Interface) BIOS.
◼ 256Mbit SPI Flash, DMI, Plug and Play.
⚫
System Memory
◼
Two 260-pin unbuffered DDR4 SO-DIMM socket.
◼ Maximum up to 32GB DDR4 3200MHz memory per channel.
⚫ Onboard Multi I/O
◼ Controller: IT5571
◼ Two serial ports: Supports RS-232/422/485 by BIOS selecting.
⚫ Storage
◼ One SATA-600 connector.
◼ One M.2 Key B connector in 22x42 (SATA).
◼ One M.2 Key M connector in 22x80 (PCIe x4).
⚫ USB Interface
◼
One USB ports with fuse protection and complies with USB Spec. Rev. 3.2 Gen 2 in
Type A connector.
◼ Two USB ports with fuse protection and complies with USB Spec. 3.2 Gen 2 in one
2x10 19-pin wafer connector.
◼ Four USB ports with fuse protection and complies with USB Spec. Rev. 2.0 in two
2x5-pin wafer connectors.
2
® Core TM i7/ i5/ i3 and Celeron
® TM
Core i7/ i5/ i3 and Celeron
® processor
®
processor.
Introduction
