  • Page 1 SHB150R Series ® Intel Socket 1151 Core i7/ i5/ i3 ® Processors PICMG v1.3 Full-size CPU Card User’s Manual...

  • Page 2: Disclaimers

    Axiomtek does not make any commitment to update the information in this manual. Axiomtek reserves the right to change or revise this document and/or product at any time without notice. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Axiomtek Co., Ltd.

  • Page 3: Esd Precautions

    Doing so can discharge static electricity from your body.  Wear a grounding wrist strap, available from most electronic component stores, when handling boards and components. Trademarks Acknowledgments Axiomtek is a trademark of Axiomtek Co., Ltd. ® Intel Core i7/ i5/ i3 are trademarks of Intel Corporation.

  • Page 4: Table Of Contents

    Table of Contents Disclaimers ..................... ii ESD Precautions ................... iii Chapter 1 Introduction ..........1 Features ....................1 Specifications ..................2 Packing list ..................3 Chapter 2 Board and Pin Assignments ....5 Board Layout ..................5 Block Diagram ..................6 Jumper Settings ..................
  • Page 5 Chapter 4 Hardware Description ......26 Microprocessors ................26 BIOS ....................26 System Memory ................. 26 Chapter 5 AMI BIOS Setup Utility ......28 Starting ....................28 Navigation Keys ................28 Main Menu ..................30 Advanced Menu ................. 31 Chipset Menu ..................46 Security Menu ..................
  • Page 6 This page is intentionally left blank.

  • Page 7: Chapter 1 Introduction

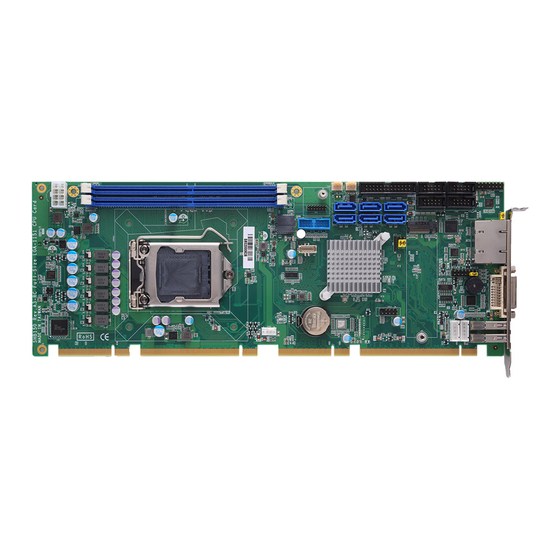

    SHB150R LGA1151 Full-size CPU Card Chapter 1 Introduction ® The SHB150R PICMG v1.3 full-size Single Board Computer supports an LGA1151 socket for ® Intel Core i7/ i5/ i3 desktop processors with 14nm technology and transfer rate 2400/ 2666 ® MHz. The board integrates an Intel Q370/H310/C246 chipset that delivers outstanding system performance through high-bandwidth interfaces, multiple I/O functions for interactive applications and various embedded computing solutions.

  • Page 8: Specifications

    Four USB2.0 ports on SHB connector-C golden fingers  Onboard Graphics ®  Integrated Intel HD graphics supporting DVI-I  DVI/VGA: Max. resolution is 1920x1200.  Internal DP1.4 Connector: Max resolution is 4096 x 2304. Must use with Axiomtek DP kit. Introduction...

  • Page 9: Packing List

    SHB150R LGA1151 Full-size CPU Card  Ethernet ® ®  LAN1/LAN2: Intel i219LM with iAMT / Intel i211AT Ethernet controller  Support 1000/100/10Mbps Gigabit/Fast Ethernet  Storage  Serial ATA: Six SATA 3.0 ports (6Gbps performance) with SATA RAID 0/1/5/10 (Q370/C246) Four SATA 3.0 ports (6Gbps performance) (H310) ...
  • Page 10 SHB150R LGA1151 Full-size CPU Card This page is intentionally left blank. Introduction...

  • Page 11: Board And Pin Assignments

    SHB150R LGA1151 Full-size CPU Card Chapter 2 Board and Pin Assignments Board Layout Top View Rear Panel I/O Board and Pin Assignments...

  • Page 12: Block Diagram

    SHB150R LGA1151 Full-size CPU Card Block Diagram Q370/C246/H310 Board and Pin Assignments...

  • Page 13: Jumper Settings

    The following illustration shows how to set up a jumper. Before applying power to the SHB150R series, please make sure all of the jumpers are in factory default position. Below you can find a summary table and onboard default settings.

  • Page 14: Auto Power On (Jp3)

    SHB150R LGA1151 Full-size CPU Card 2.3.1 Auto Power On (JP3) If JP3 is enabled for power input, the system will be automatically power on without pressing soft power button. If JP3 is disabled for power input, it is necessary to manually press soft power button to power on the system.

  • Page 15: Connectors

    SHB150R LGA1151 Full-size CPU Card Connectors Signals go to other parts of the system through connectors. Loose or improper connection might cause problems. Make sure all connectors are properly and firmly connected. Here is a summary table showing all connectors on the hardware. Jumpers/Headers/Connectors ATX Power Connector (ATX1) Front Panel Connector (CN8)

  • Page 16: Temperature Sensor Connector (Cn1) (Optional)

    SHB150R LGA1151 Full-size CPU Card 2.4.1 Temperature Sensor Connector (CN1) (Optional) This is a 2-pin connector for temperature sensor (NTC thermistor) interface. The thermistor value should be 10K and its B value is 3435K. Signal Sensor Input 2.4.2 Ethernet Ports (CN5) The board has two RJ-45 connectors: LAN1 (i219LM) and LAN2 (i211AT).

  • Page 17: Front Panel Connector (Cn8)

    SHB150R LGA1151 Full-size CPU Card 2.4.3 Front Panel Connector (CN8) This is a front panel header (7x2-pin p=2.54mm). Signal PWRLED+ EXT SPK- Buzzer PWRLED- N.C. N.C. EXT SPK+ PWRSW- PWRSW+ HW RST- HW RST+ HDDLED- HDDLED+ Power LED Pin 1 connects anode(+) of LED and pin 5 connects cathode(-) of LED. The power LED lights up when the system is powered on.

  • Page 18: Dvi-I Connector (Cn8)

    SHB150R LGA1151 Full-size CPU Card 2.4.4 DVI-I Connector (CN8) DVI-I (integrated, combining digital and analog in the same connector; digital may be single or dual link) provides transmission of fast and high quality digital video between a source device (graphics card) and a display device. Signal Signal DVI_DATA2-...

  • Page 19: Internal Usb 2.0 Connectors (Cn10)

    SHB150R LGA1151 Full-size CPU Card 2.4.5 Internal USB 2.0 Connectors (CN10) These are 5x2-pin p=2.54mm headers for USB 2.0 interface. Signal Signal USB_PWR USB_PWR USB - USB - USB + USB + 2.4.6 Rear I/O USB 3.1 (Gen1) Connectors (CN12 and CN15) These are standard USB (Universal Serial Bus) 3.0 connectors on the rear I/O for installing USB peripherals such as a keyboard, mouse, scanner, etc.

  • Page 20: Com Connectors (Com1~Com4)

    SHB150R LGA1151 Full-size CPU Card 2.4.8 COM Connectors (COM1~COM4) The board supports RS-232/RS-422/RS-485 mode operation for COM1 and COM2. See the table below for the pin assignments. You can change the transmission mode from BIOS setting. COM3 and COM4 support RS-232 only. RS-232 RS-422 RS-485...

  • Page 21: Sata 3.0 Connectors (Sata1~Sata6)

    SHB150R LGA1151 Full-size CPU Card 2.4.10 SATA 3.0 Connectors (SATA1~SATA6) These Serial Advanced Technology Attachment (Serial ATA or SATA) connectors are for high-speed SATA 3.0 interfaces. They are computer bus interfaces for connecting to devices such as hard disk drives. This board has six SATA 3.0 ports with 6Gb/s performance.

  • Page 22: Internal Usb 3.1 Gen1 Connector (Cn3)

    SHB150R LGA1151 Full-size CPU Card 2.4.13 Internal USB 3.1 Gen1 Connector (CN3) The CN3 is a 19-pin internal connector for installing versatile USB 3.1 compliant peripherals. Signal Signal USB3_PWR56 SSRX5- VBUS1 SSRX5+ SSRX6- SSRX6+ SSTX5- SSTX5+ SSTX6- SSTX6+ USB10- USB10+ USB11- USB11+ 2.4.14...

  • Page 23: Parallel Port Connector (Print1)

    SHB150R LGA1151 Full-size CPU Card 2.4.15 Parallel Port Connector (PRINT1) This board has a multi-mode parallel port to support:  Standard Mode: IBM PC/XT, PC/AT and PS/2 are compatible with a bi-directional parallel port.  Enhanced Mode: Enhance Parallel Port (EPP) is compatible with EPP 1.7 and EPP 1.9 (IEEE 1284 compliant).

  • Page 24: 2280 Key M Nvme Ssd (Cn4)

    SHB150R LGA1151 Full-size CPU Card 2.4.16 M.2 2280 Key M NVMe SSD (CN4) The M.2 2280 Key M NVM Express SSD for storage. Signal Signal Signal Signal +3.3V +3.3V PERn3 PERp3 LED_1# PETn3 +3.3V PETp3 +3.3V +3.3V PERn2 +3.3V PERp2 PETn2 PETp2 PERn1...

  • Page 25: Internal Usb 3.1 Gen2 Connector (Cn7)

    SHB150R LGA1151 Full-size CPU Card 2.4.17 Internal USB 3.1 Gen2 Connector (CN7) The CN7 is an internal box connector for installing versatile USB 3.1 Gen2 compliant peripherals. Signal Signal SSTX2+ SSTX3- SSTX2- SSTX3+ SSRX2+ SSRX3- SSRX2- SSRX3+ USBP3P_C USBP4P_C USBP3N_C USBP4N_C +3.3VS Board and Pin Assignments...

  • Page 26: Display Port 1.4 Connector (Cn11)

    SHB150R LGA1151 Full-size CPU Card 2.4.18 Display Port 1.4 Connector (CN11) The CN11 is an internal box connector which is defined by Axiomtek for installing Display Port 1.4 Connector peripherals. The Display Port 1.4 Connector peripherals are available as an optional kit.
  • Page 27 SHB150R LGA1151 Full-size CPU Card This page is intentionally left blank. Board and Pin Assignments...

  • Page 28: Chapter 3 Hardware Installation

    SHB150R LGA1151 Full-size CPU Card Chapter 3 Hardware Installation Installing the Processor The LGA1151 processor socket comes with a cover to protect the processor. Please install the processor into the CPU socket step by step as illustrated below: Make sure that you install the correct CPU designed for the LGA1151 socket only. DO NOT install a CPU designed for LGA1156, LGA1155 or LGA1150 CPU on the LGA1151 socket.
  • Page 29 SHB150R LGA1151 Full-size CPU Card Step 3 Processor installation:  Lift the processor package from shipping media by grasping the substrate edges.  Scan the processor package gold pads for any presence of foreign material. If necessary, the gold pads can be wiped clean with a soft lint-free cloth and isopropyl alcohol. ...
  • Page 30 SHB150R LGA1151 Full-size CPU Card Step 4 Close the socket (see image below):  Gently lower the load plate.  Make sure the load plate's front edge slides under the shoulder screw cap as the lever is lowered.  Latch the lever under the top plate's corner tab, being cautious not to damage the motherboard with the tip of the lever.

  • Page 31: Installing The Memory

    SHB150R LGA1151 Full-size CPU Card Make sure the CPU fan is plugged to the CPU fan connector. Installing the Memory The board supports two 288-pin DDR4 DIMM memory sockets with maximum memory capacity up to 64GB. Please follow steps below to install the memory modules: ...

  • Page 32: Chapter 4 Hardware Description

    Make sure all correct settings are arranged for your installed microprocessor to prevent the CPU from damage. BIOS The SHB150R Series uses AMI Plug and Play BIOS with a single 256Mbit SPI Flash. System Memory The SHB150R Series supports two 288-pin DDR4 DIMM sockets for maximum memory capacity up to 64GB DDR4 SDRAMs.
  • Page 33 SHB150R LGA1151 Full-size CPU Card This page is intentionally left blank. Hardware Description...

  • Page 34: Ami Bios Setup Utility

    SHB150R LGA1151 Full-size CPU Card Chapter 5 AMI BIOS Setup Utility The AMI UEFI BIOS provides users with a built-in setup program to modify basic system configuration. All configured parameters are stored in a flash chip to save the setup information whenever the power is turned off.
  • Page 35 SHB150R LGA1151 Full-size CPU Card Hot Keys Description  Left/Right The Left and Right <Arrow> keys allow you to select a setup screen. The Up and Down <Arrow> keys allow you to select a setup screen or  Up/Down sub-screen. The Plus and Minus <Arrow>...

  • Page 36: Main Menu

    SHB150R LGA1151 Full-size CPU Card Main Menu The first time you enter the setup utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab. System Time/Date can be set up as described below.

  • Page 37: Advanced Menu

    SHB150R LGA1151 Full-size CPU Card Advanced Menu The Advanced menu also allows users to set configuration of the CPU and other system devices. You can select any of the items in the left frame of the screen to go to the sub menus: ►...
  • Page 38 SHB150R LGA1151 Full-size CPU Card  NCT6106D Super IO Configuration You can use this screen to select options for the Super IO Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
  • Page 39 SHB150R LGA1151 Full-size CPU Card  Serial Port 1 Configuration Serial Port Enable or disable serial port 1. The optimal setting for base I/O address is 3F8h and for interrupt request address is IRQ4. Change Settings Use this item to change base I/O address and IRQ settings. COM Port Type Select RS-232/422/485 communication mode for serial port 1.
  • Page 40 SHB150R LGA1151 Full-size CPU Card  NCT6106D HW Monitor Use this screen for Smart Fan configuration and hardware health status monitoring. This screen displays the temperature of system, cooling fans speed in RPM and system voltages (VCORE, VIN0, VIN1, VIN2 and VBAT). Smart Fan Function Enable or disable Smart Fan function.
  • Page 41 SHB150R LGA1151 Full-size CPU Card  ACPI Settings You can use this screen to select options for the ACPI configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
  • Page 42 SHB150R LGA1151 Full-size CPU Card  Trusted Computing This screen provides function for specifying the Trusted Computing. Security Device Support Enable or disable BIOS support for the security device. The default setting is Disabled. TPM State Once the Security Device Support is enabled, TPM (Trusted Platform Module) can be used by the operating system.
  • Page 43 SHB150R LGA1151 Full-size CPU Card  CPU Configuration This screen shows the CPU information, and you can change the value of the selected option. Hyper-threading Enable or disable Hyper-Threading Technology. When enabled, it allows a single physical processor to multitask as multiple logical processors. When disabled, only one thread per enabled core is enabled.
  • Page 44 SHB150R LGA1151 Full-size CPU Card  SATA Configuration In this Configuration menu, you can see the hardware currently installed in SATA ports. During system boot up, BIOS automatically detects the presence of SATA devices. SATA Controller(s) Enable or disable SATA controller feature. SATA Mode Selection Determine how SATA controller(s) operate.
  • Page 45 SHB150R LGA1151 Full-size CPU Card  PCH-FW Configuration This screen displays ME (Management Engine) Firmware information. AMI BIOS Setup Utility...
  • Page 46 SHB150R LGA1151 Full-size CPU Card  AMT Configuration Use this screen to configure AMT parameters. Intel AMT ® Enable or disable Intel Active Management Technology BIOS Extension. The default is Enabled. After enabling, please refer to Appendix D for iAMT settings. AMI BIOS Setup Utility...
  • Page 47 SHB150R LGA1151 Full-size CPU Card  Compatibility Support Module (CSM) Configuration This screen displays CSM information. CSM Support Enabled / Disable CSM Support. GateA20 Active UPON REQUEST - GA20 can be disabled using BIOS services. ALWAYS - do not allow disabling GA20.
  • Page 48 SHB150R LGA1151 Full-size CPU Card Video Controls the execution of UEFI and Legacy Video OpROM. Other PCI devices Determines OpROM execution policy for devices other than Network, Storage, or Video.  PCI Subsystem Settings This screen allows you to set PCI Subsystem mode. PCI Latency Timer Set the value to be programmed into PCI Latency Timer Register.
  • Page 49 SHB150R LGA1151 Full-size CPU Card  Platform Misc Configuration This screen allows you to set Platform Misc Configuration. Native PCIE Enable Bit - PCIe Native * control\n 0 - ~ Hot Plug\n 1 - SHPC Native Hot Plug control\n 2 - ~ Power Management Events\n 3 - PCIe Advanced Error Reporting control\n 4 - PCIe Capability Structure control\n 5 - Latency Tolerance Reporting control.
  • Page 50 SHB150R LGA1151 Full-size CPU Card  Serial Port Console Redirection This screen allows you to set serial port console redirection. AMI BIOS Setup Utility...
  • Page 51 SHB150R LGA1151 Full-size CPU Card  USB Configuration This screen shows USB configuration. USB Devices Displays all detected USB devices. Legacy USB Support Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. XHCI Hand-off This is a workaround for OSes without XHCI hand-off support.

  • Page 52: Chipset Menu

    SHB150R LGA1151 Full-size CPU Card Chipset Menu The Chipset menu allows users to change the advanced chipset settings. You can select any of the items in the left frame of the screen to go to the sub menus: ► System Agent (SA) Configuration ►...
  • Page 53 SHB150R LGA1151 Full-size CPU Card  System Agent (SA) Configuration This screen shows System Agent information. Graphics Configuration Open the sub menu for parameters related to graphics configuration. Memory Configuration Open the sub menu for information related to system memory. PEG Port Configuration This screen shows PEG Port/POE Port feature information.
  • Page 54 SHB150R LGA1151 Full-size CPU Card  PCH-IO Configuration This screen shows system memory information. PCH LAN Controller Enable or disable onboard PCH LAN controller. Wake on LAN Enable Enable or disable integrated LAN to wake the system. AMI BIOS Setup Utility...

  • Page 55: Security Menu

    SHB150R LGA1151 Full-size CPU Card Security Menu The Security menu allows users to change the security settings for the system.  Administrator Password This item indicates whether an administrator password has been set (installed or uninstalled).  User Password This item indicates whether a user password has been set (installed or uninstalled). AMI BIOS Setup Utility...

  • Page 56: Boot Menu

    SHB150R LGA1151 Full-size CPU Card Boot Menu The Boot menu allows users to change boot options of the system.  Setup Prompt Timeout Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite waiting.  Bootup NumLock State Use this item to select the power-on state for the keyboard NumLock.

  • Page 57: Save & Exit Menu

    SHB150R LGA1151 Full-size CPU Card Save & Exit Menu The Save & Exit menu allows users to load your system configuration with optimal or fail-safe default values.  Save Changes and Exit When you have completed the system configuration changes, select this option to leave Setup and return to Main Menu.
  • Page 58 SHB150R LGA1151 Full-size CPU Card  Save Changes When you have completed the system configuration changes, select this option to save changes. Select Save Changes from the Save & Exit menu and press <Enter>. Select Yes to save changes.  Discard Changes Select this option to quit Setup without making any permanent changes to the system configuration.
  • Page 59 SHB150R LGA1151 Full-size CPU Card This page is intentionally left blank. AMI BIOS Setup Utility...

  • Page 60: Appendix A Watchdog Timer

    SHB150R LGA1151 Full-size CPU Card Appendix A Watchdog Timer A.1 About Watchdog Timer Software stability is a major issue in most applications. Some embedded systems are not watched by humans for 24 hours. It is usually too slow to wait for someone to reboot when computer hangs.
  • Page 61 SHB150R LGA1151 Full-size CPU Card Note: If N=00h, the time base is set to second. M = time value 00h: Time-out Disable 01h: Time-out occurs after 1 second 02h: Time-out occurs after 2 seconds 03h: Time-out occurs after 3 seconds FFh: Time-out occurs after 255 seconds If N=08h, the time base is set to minute.

  • Page 62: Appendix Bpci Irq Routing

    SHB150R LGA1151 Full-size CPU Card Appendix B PCI IRQ Routing ® B.1 PICMG PCI IRQ Routing Device Slot PCI Slot 0 BCDA PCI Slot 1 CDAB PCI Slot 2 DABC PCI Slot 3 ABCD PCI IRQ Routing...
  • Page 63 SHB150R LGA1151 Full-size CPU Card This page is intentionally left blank. PCI IRQ Routing...

  • Page 64: Appendix C Configuring Sata For Raid

    SHB150R LGA1151 Full-size CPU Card Appendix C Configuring SATA for RAID Configuring SATA Hard Drive(s) for RAID (Controller: ® Intel Q370/C246) Before you begin the SATA configuration, please prepare: Two SATA hard drives (to ensure optimal performance, it is recommended that you use two hard drives with identical model and capacity).
  • Page 65 SHB150R LGA1151 Full-size CPU Card 2.1. Turn on your system, and then press the <Del> button to enter BIOS Setup during running POST (Power-On Self Test). If you want to create RAID, just go to the Advanced Settings menu\SATA Configuration, select the “SATA Mode Selection”, and press <Enter> for more options.
  • Page 66 SHB150R LGA1151 Full-size CPU Card 3. Configuring RAID by the RAID BIOS. Enter the RAID BIOS setup utility to configure a RAID array. Skip this step and proceed if you do not want to create a RAID. 3.1. After the POST memory testing and before the operating system booting, a message "Press <Ctrl-I>...
  • Page 67 SHB150R LGA1151 Full-size CPU Card 3.3. After entering the Create Volume Menu screen, you can type the disk array name with 1~16 letters (letters cannot be special characters) in the item “Name”. 3.4. When finished, press <Enter> to select a RAID level. There are four RAID levels: RAID0, RAID1 and RAID5 and RAID10.
  • Page 68 SHB150R LGA1151 Full-size CPU Card 3.5. Set the strip block size. The KB is the standard unit of strip block size. The strip block size can be 4KB to 128KB. After the setting, press <Enter> for the array capacity. 3.6. After setting all the items on the menu, select Create Volume and press <Enter> to start creating the RAID array.
  • Page 69 SHB150R LGA1151 Full-size CPU Card 3.7. When prompting the confirmation, press <Y> to create this volume, or <N> to cancel the creation. After the creation is completed, you can see detailed information about the RAID Array in the Disk/Volume Information section, including RAID mode, disk block size, disk name, and disk capacity, etc.
  • Page 70 SHB150R LGA1151 Full-size CPU Card Delete RAID volume If you want to delete a RAID volume, select the Delete RAID Volume option in the Main Menu. Press <Enter> and follow on-screen instructions. Please press <Esc> to exit the RAID BIOS utility. Now, you can proceed to install a SATA driver controller and the operating system.
  • Page 71 SHB150R LGA1151 Full-size CPU Card This page is intentionally left blank. Configuring SATA for RAID...

  • Page 72: Appendix D Iamt Settings

    SHB150R LGA1151 Full-size CPU Card Appendix D iAMT Settings Utilizing built-in platform capabilities and popular third-party management and security ® ® applications, the Intel Active Management Technology (Intel iAMT) has significantly lowered a major barrier to IT management efficiency, helping IT professionals discover, repair and better protect their networked computing assets.
  • Page 73 SHB150R LGA1151 Full-size CPU Card 2. You will be asked to change the password before setting ME. 3. You must confirm your new password while revising. The new password must consist of eight characters, including at least:  One upper case letter ...

  • Page 74: Iamt Settings

    SHB150R LGA1151 Full-size CPU Card iAMT Settings ® Select Intel iAMT configuration and press <Enter>. 1. Select Network Setup to configure iAMT. iAMT Settings...
  • Page 75 SHB150R LGA1151 Full-size CPU Card 2. Select TCP/IP to get into Network interface and set it to Enabled. Get into DHCP Mode and set it to Disabled. iAMT Settings...
  • Page 76 SHB150R LGA1151 Full-size CPU Card 3. If DHCP Mode is disabled, complete the following settings:  IP address  Subnet mask ® 4. Go back to Intel iAMT Configuration, then select Activate Network Access and press <Enter>. 5. Exit from MEBx after completing the iAMT settings. iAMT Settings...

  • Page 77: Iamt Web Console

    SHB150R LGA1151 Full-size CPU Card iAMT Web Console 1. On a web browser, type http://(IP ADDRESS):16992, which connects to iAMT Web. Example: http://10.1.40.214:16992 2. To log on, you will be required to type in your username and password for access to the Web.
  • Page 78 SHB150R LGA1151 Full-size CPU Card 3. Enter the iAMT Web. 4. Click Remote Control, and select commands on the right side. iAMT Settings...
  • Page 79 SHB150R LGA1151 Full-size CPU Card 5. When you have finished using the iAMT Web console, close the Web browser. iAMT Settings...

  • Page 80: Appendix E Picmg V1.3 Interface Definition

    SHB150R LGA1151 Full-size CPU Card Appendix E ® PICMG v1.3 Interface Definition x16 PCIe Connector A x16 PCIe Connector C Side B Side A Side B Side A USB0P USB0N USB1P USB1N WAKE# USB2P PWRBT# PME# USB2N PWRGD PSON# USB3P SHB_RST# PERST# USB3N...
  • Page 81 SHB150R LGA1151 Full-size CPU Card Mechanical Key b_PERp3 b_PERn3 REFCLK0+ REFCLK0- REFCLK1+ RSVD REFCLK1- REFCLK2+ REFCLK2- REFCLK3+ RSVD REFCLK3- REFCLK4+ REFCLK4- RSVD +3.3V +3.3V +3.3V +3.3V +3.3V +3.3V a_PETp0 +3.3V +3.3V a_PETn0 +3.3V +3.3V a_PERp0 +3.3V +3.3V a_PERn0 +3.3V +3.3V a_PETp1 +3.3V +3.3V...
  • Page 82 SHB150R LGA1151 Full-size CPU Card Mechanical Key a_PETn3 a_PERp3 a_PERn3 a_PETp4 a_PETn4 a_PERp4 a_PERn4 a_PETp5 a_PETn5 a_PERp5 a_PERn5 a_PETp6 a_PETn6 a_PERp6 a_PERn6 a_PETp7 +12V +12V a_PETn7 +12V +12V a_PERp7 +12V +12V a_PERn7 +12V +12V +12V +12V +3.3V +3.3V +12V +12V +3.3V +3.3V +12V...
  • Page 83 SHB150R LGA1151 Full-size CPU Card x8 PCIe Connector B x8 PCIe Connector D Side B Side A Side B Side A +5Vaux +5Vaux INTB# INTA# INTD# INTC# a_PETp8 a_PETn8 REQ3# GNT3# a_PERp8 REQ2# GNT2# a_PERn8 PCI_RST# GNT1# a_PETp9 REQ1# GNT0# a_PETn9 REQ0# SERR#...
  • Page 84 SHB150R LGA1151 Full-size CPU Card Mechanical Key a_PETp14 C/BE2# a_PETn14 PCI_PRST# FRAME# a_PERp14 IRDY# TRDY# a_PERn14 DEVSEL# a_PETp15 LOCK# STOP# a_PETn15 PERR# a_PERp15 C/BE1# a_PERn15 AD14 AD12 AD15 AD10 AD13 AD09 AD11 C/BE0# AD08 +12V +12V AD06 +12V +12V AD07 AD05 +12V +12V...
  • Page 85 SHB150R LGA1151 Full-size CPU Card This page is intentionally left blank. ® PICMG v1.3 Interface Definition...

  • Page 86: Appendix Ftpm Module Installation

    SHB150R LGA1151 Full-size CPU Card Appendix F TPM Module Installation The TPM 2.0 (Trusted Platform Module 2.0) module is a modularized design applying to the SHB150R and provides enhanced hardware security for the computer. In this appendix you will learn how to install the TPM 2.0 module into the SHB150R. Please read and follow the instructions below carefully.
  • Page 87 SHB150R LGA1151 Full-size CPU Card (In the Trusted Computing section, on the first of line will show “TPM2.0 Device Found”, if installation is successful.) b. In the Windows 10 OS environment, enter Device Manager, and select the item of Security devices. The screen will show “Trusted Platform Module 2.0” if installation is successful.
  • Page 88 SHB150R LGA1151 Full-size CPU Card c. In the Windows 10 OS environment, enter Control Panel, select the item of BitLocker Drive Encryption, and enter TPM Administration. The screen will show the information below if installation is successful. TPM Module Installation...
