Chapter 1 Introduction; Features - AXIOMTEK SHB150R Series User Manual

The SHB150R PICMG
® TM
Intel Core i7/ i5/ i3 desktop processors with 14nm technology and transfer rate 2400/ 2666
MHz. The board integrates an Intel
system performance through high-bandwidth interfaces, multiple I/O functions for interactive
applications and various embedded computing solutions. There are two 288-pin DDR4 DIMM
sockets for dual channel DDR4 2400/ 2666MHz with maximum memory capacity up to 64GB.
The board also features dual Gigabit Ethernet, SATA 6Gbps with SATA RAID
0/1/5/10(Q370/C246) by PCH, USB 2.0, and USB 3.1 (Gen1/Gen2) high speed compliant
ports and built-in Intel
industrial applications.
1.1

Features

 LGA1151 socket 9
®
 Intel Q370/H310/C246 PCH
 2 DDR4 unbuffered DIMM max. up to 64GB memory capacity
®
 Intel iAMT (Q370/C246 PCH) and TPM2.0 module supported (optional)
 PCIe Gen. 3 at 8GT/s supported
 USB 3.1 (Gen2) supported (Q370/C246 PCH)
Introduction
®
v1.3 full-size Single Board Computer supports an LGA1151 socket for
®
Q370/H310/C246 chipset that delivers outstanding
®
HD Audio Digital Header to achieve the best stability and reliability for
th th
/8 Generation Intel

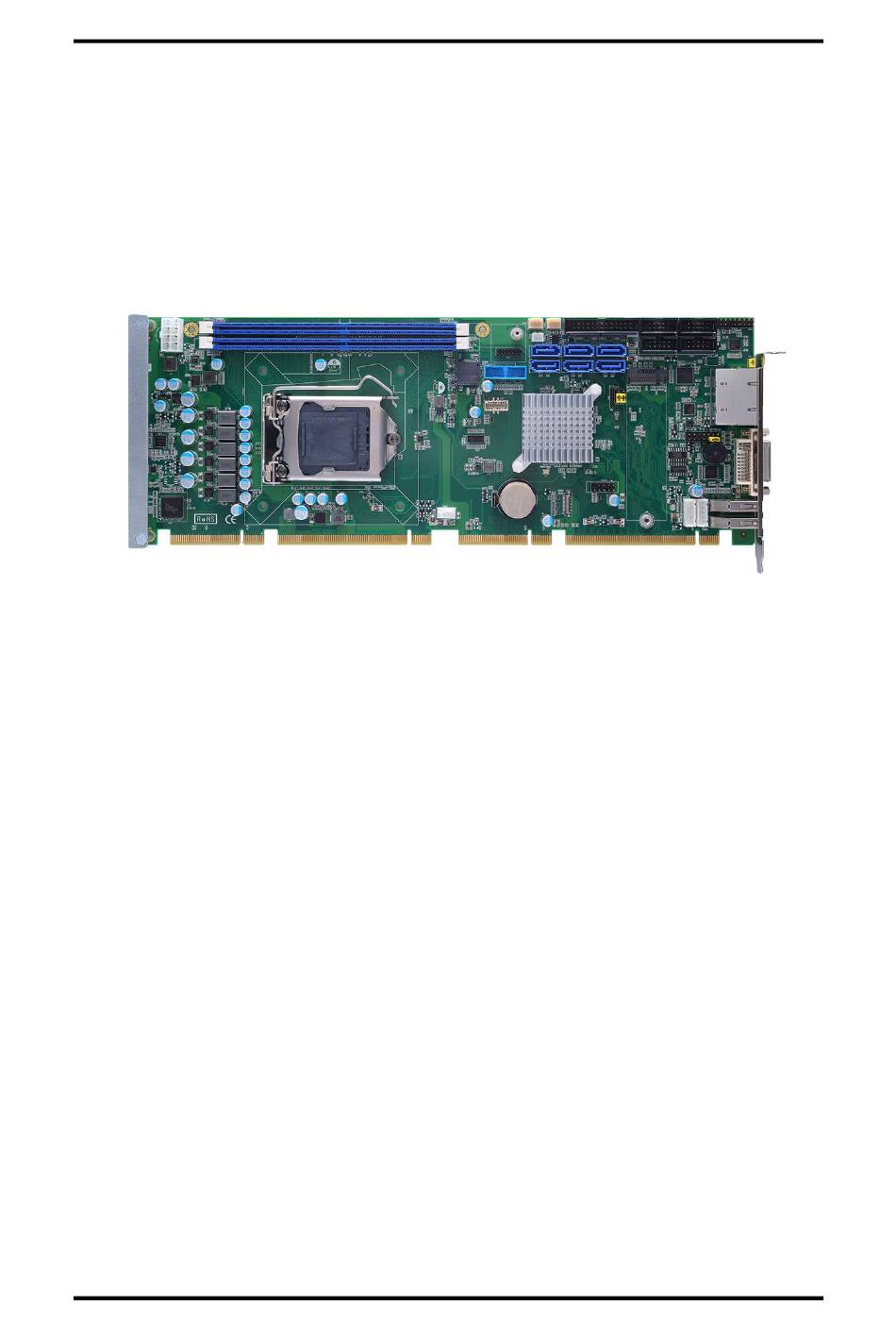

SHB150R LGA1151 Full-size CPU Card
Introduction
® TM
Core processors up to 95W
Chapter 1
1
