CAPA55R Capa Board
2.6.4

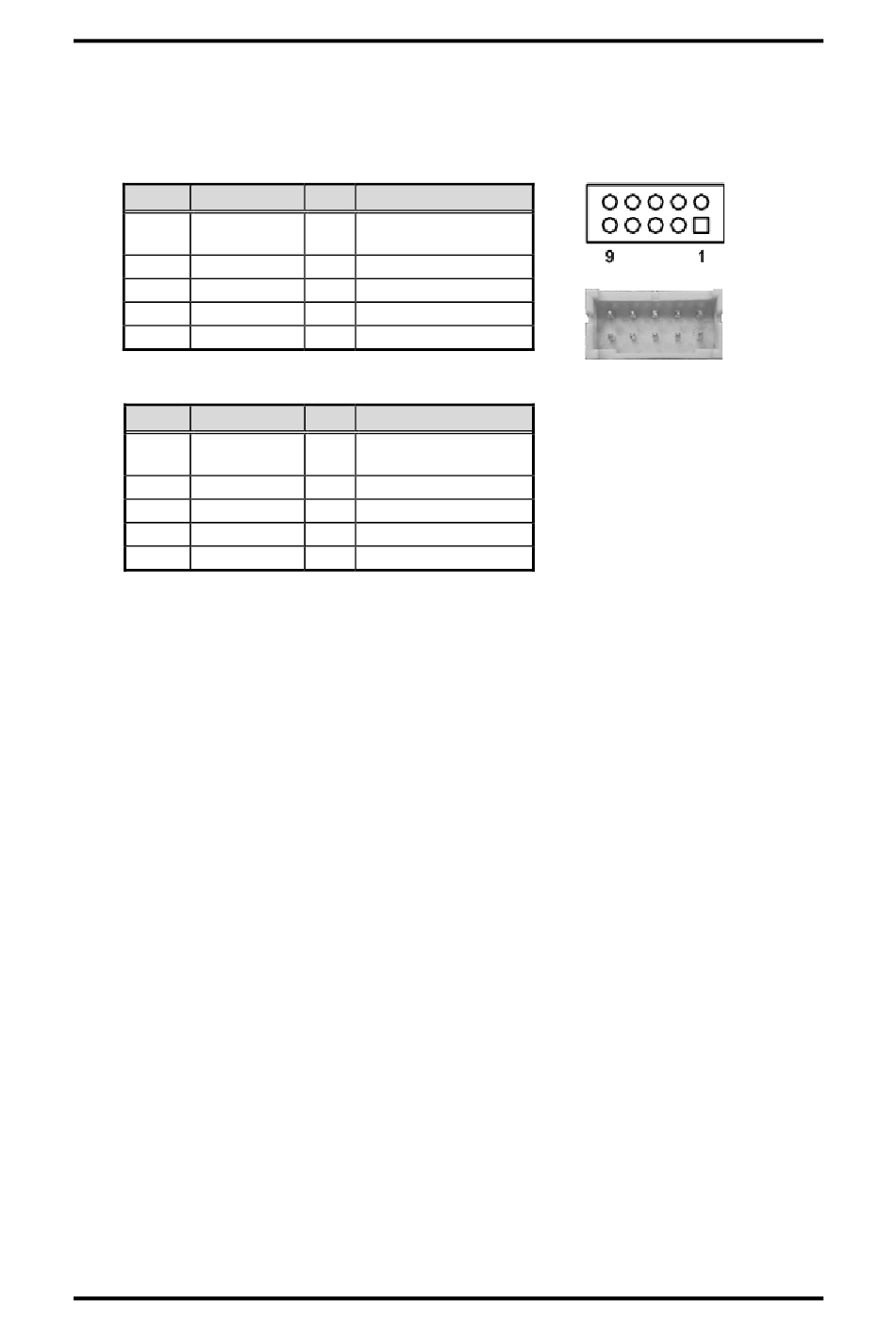

USB 2.0 Wafer Connectors (CN4 and CN5)

These are 2x5-pin (pitch=2mm) wafer connectors, which are compliant with Hirose
DF11-XDP-2DSA, for installing versatile USB 2.0 compliant interface peripherals.
CN4:
Pin Signal
USB VCC
1
(+5V_SBY)
3 USB_D7_N
5 USB_D7_P
7 GND
9 GND
CN5:
Pin Signal
USB VCC
1
(+5V_SBY)
3 USB_D5_N
5 USB_D5_P
7 GND
9 GND
20
Pin Signal
USB VCC (+5V_SBY)
2
4 USB_D8_N
6 USB_D8_P
8 GND
10 GND
Pin Signal
USB VCC (+5V_SBY)
2
4 USB_D6_N
6 USB_D6_P
8 GND
10 GND
Board and Pin Assignments
