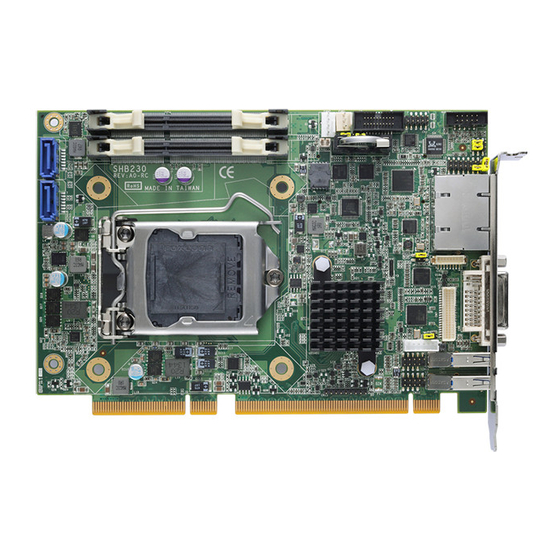

AXIOMTEK SHB230 Quick Installation Manual

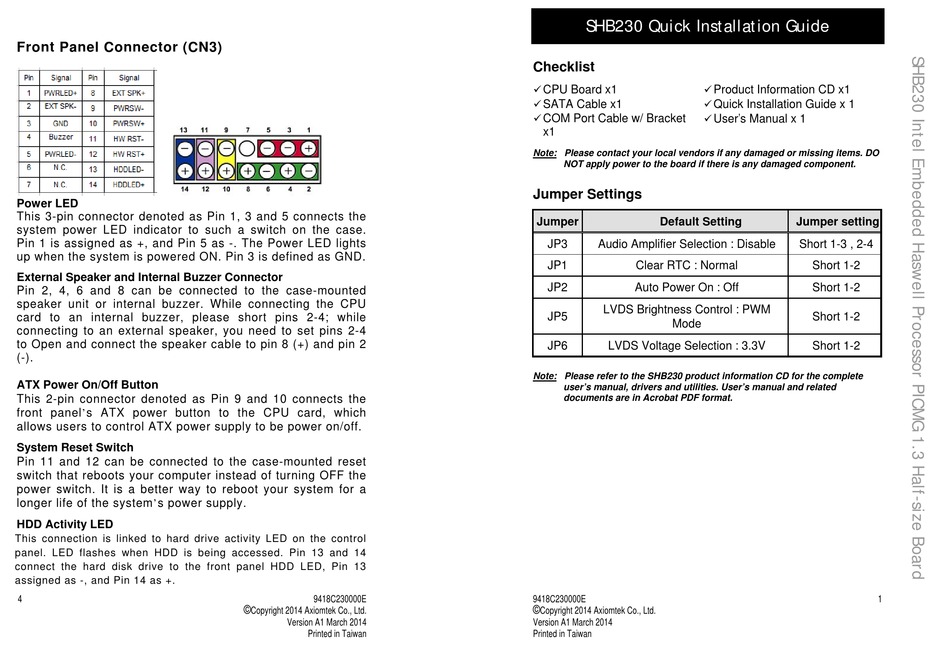

Front Panel Connector (CN3)
Power LED
This 3-pin connector denoted as Pin 1, 3 and 5 connects the
system power LED indicator to such a switch on the case.
Pin 1 is assigned as +, and Pin 5 as -. The Power LED lights
up when the system is powered ON. Pin 3 is defined as GND.
External Speaker and Internal Buzzer Connector
Pin 2, 4, 6 and 8 can be connected to the case-mounted
speaker unit or internal buzzer. While connecting the CPU
card to an internal buzzer, please short pins 2-4; while
connecting to an external speaker, you need to set pins 2-4
to Open and connect the speaker cable to pin 8 (+) and pin 2
(-).
ATX Power On/Off Button
This 2-pin connector denoted as Pin 9 and 10 connects the
front panel's ATX power button to the CPU card, which
allows users to control ATX power supply to be power on/off.
System Reset Switch
Pin 11 and 12 can be connected to the case-mounted reset
switch that reboots your computer instead of turning OFF the
power switch. It is a better way to reboot your system for a
longer life of the system's power supply.
HDD Activity LED
This connection is linked to hard drive activity LED on the control
panel. LED flashes when HDD is being accessed. Pin 13 and 14
connect the hard disk drive to the front panel HDD LED, Pin 13
assigned as -, and Pin 14 as +.
4 9418C230000E
©
Copyright 2014 Axiomtek Co., Ltd.
Version A1 March 2014
Printed in Taiwan
SHB230 Quick Installation Guide
Checklist
 
CPU Board x1
 
SATA Cable x1
 
COM Port Cable w/ Bracket
x1
Note: Please contact your local vendors if any damaged or missing items. DO
NOT apply power to the board if there is any damaged component.
Jumper Settings
Jumper Default Setting
JP3 Audio Amplifier Selection : Disable
JP1 Clear RTC : Normal
JP2 Auto Power On : Off
LVDS Brightness Control : PWM
JP5
Mode
JP6 LVDS Voltage Selection : 3.3V
Note: Please refer to the SHB230 product information CD for the complete
user's manual, drivers and utilities. User's manual and related
documents are in Acrobat PDF format.
9418C230000E
©
Copyright 2014 Axiomtek Co., Ltd.
Version A1 March 2014
Printed in Taiwan
Product Information CD x1
Quick Installation Guide x 1
User's Manual x 1
Jumper setting
Short 1-3 , 2-4
Short 1-2
Short 1-2
Short 1-2
Short 1-2
