SBC84831 All-In-One Capa Board User's Manual
CHAPTER 1
INTRODUCTION
®
™

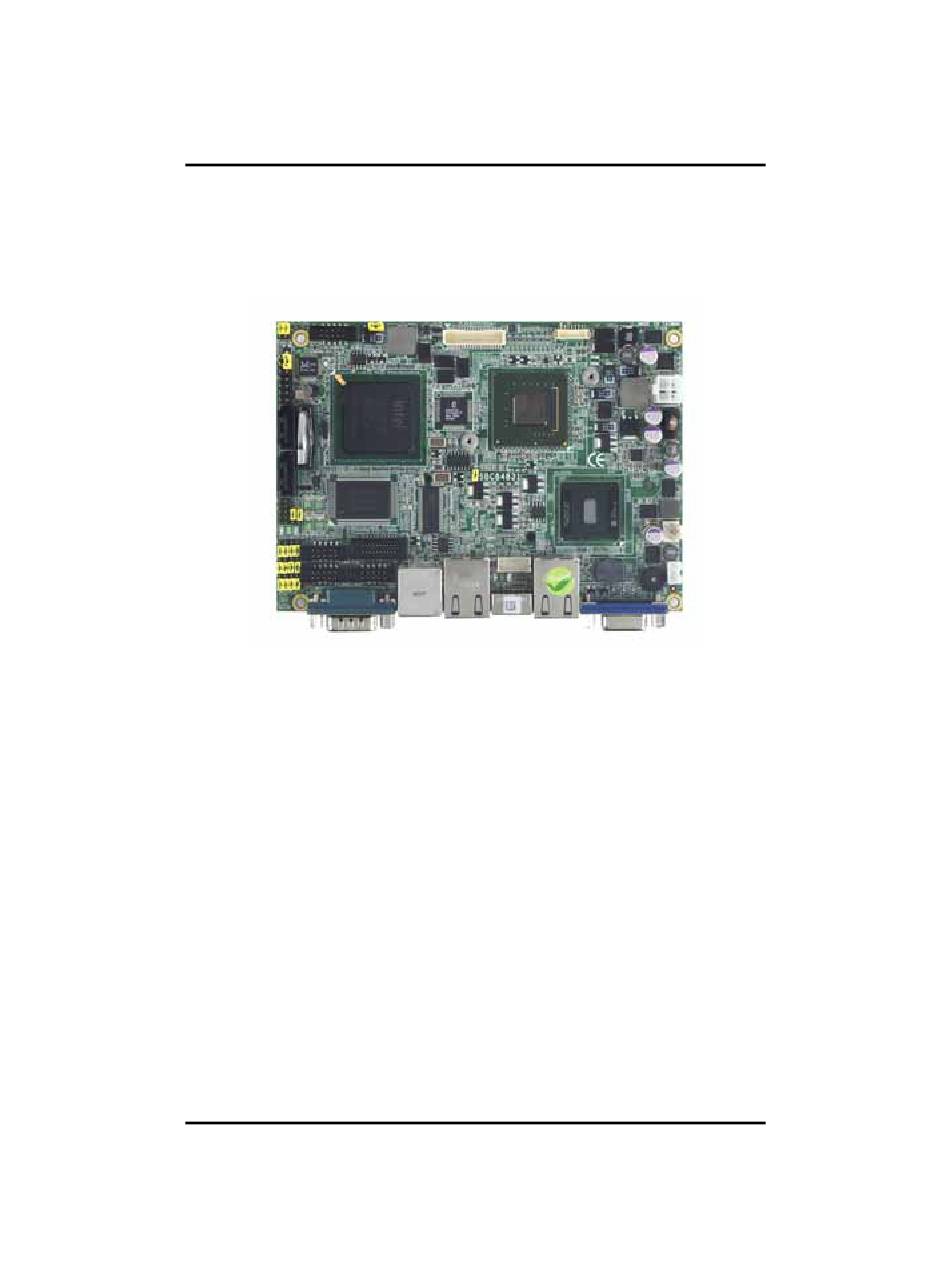

The SBC84831, a Capa board, supports Intel Atom processor
®
N270, at FSB 533 MHz. The board integrates chipsets Intel 945GSE
and ICH7M that deliver outstanding system performance through
high-bandwidth interfaces, multiple I/O functions for interactive
applications and various embedded computing solutions. There is one
200-pin unbuffered SO-DIMM sockets for singe channel DDR2-
400/533 MHz memory, maximum memory capacity up to 1GB. It also
features two Gigabit/Fast Ethernet, two serial ATA channels for total
two Serial ATA hard drives at maximum transfer rate up to 150MB/sec,
four USB 2.0 high speed compliant, built-in AC'97 audio codec that
can achieve the best stability and reliability for industrial applications.
Additionally, it provides you with unique embedded features, such as
6 serial ports and 3.5" form factor that applies an extensive array of
PC peripherals.
