PICO512 Pico-ITX Board
Chapter 1
Introduction
th ® TM ®

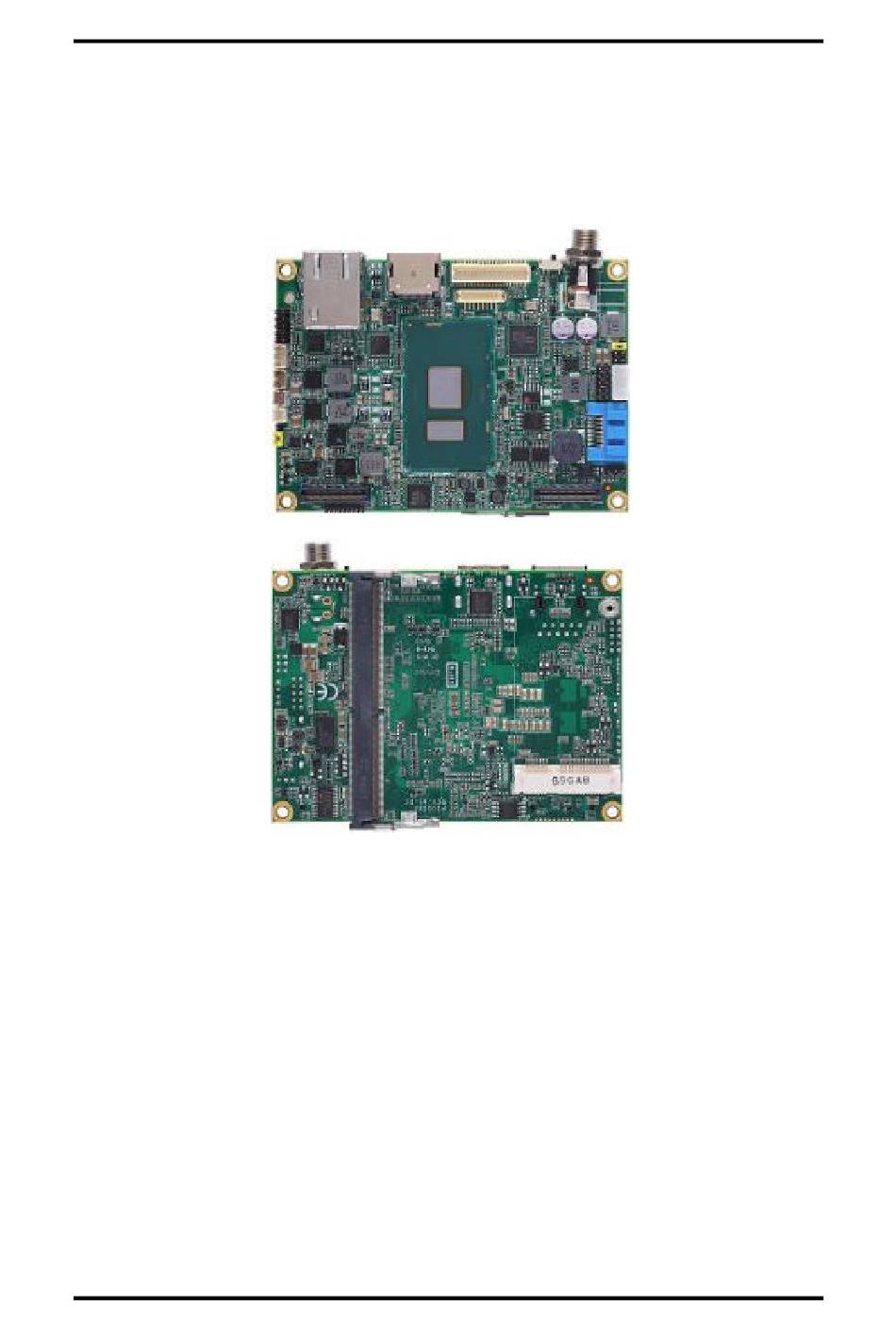

The PICO512 is a Pico-ITX board with 7 Generation Intel Core i7/ i5/ i3 and Celeron
processor that delivers outstanding system performance through high-bandwidth interfaces,
multiple I/O functions for interactive applications and various embedded computing solutions.
The board has one 260-pin unbuffered SO-DIMM socket for DDR4 2133MHz SO-DIMM
memory with maximum memory capacity up to 16GB. It also features one Gigabit/Fast
Ethernet, one SATA port with transfer rates up to 6Gb/s and one USB 2.0 high speed compliant,
that can achieve the best stability and reliability for industrial applications. Additionally, it
provides you with unique embedded feature such as Pico-ITX form factor that applies an
extensive array of PC peripherals. The board can be enhanced by its built-in watchdog timer
function, a special industrial feature not commonly seen on other motherboards.
1
Introduction
