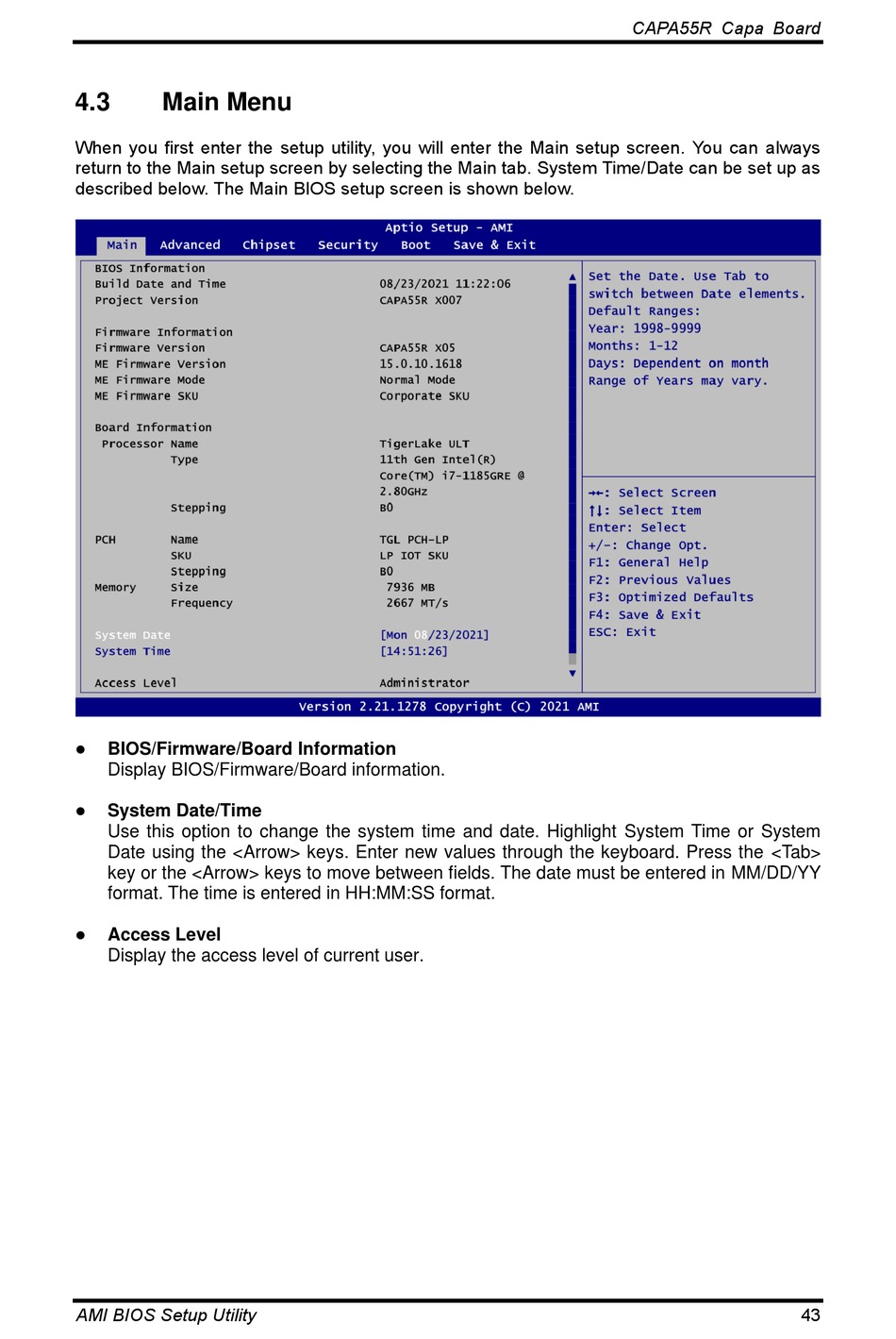

4.3

Main Menu

When you first enter the setup utility, you will enter the Main setup screen. You can always
return to the Main setup screen by selecting the Main tab. System Time/Date can be set up as
described below. The Main BIOS setup screen is shown below.
⚫ BIOS/Firmware/Board Information
Display BIOS/Firmware/Board information.
⚫
System Date/Time
Use this option to change the system time and date. Highlight System Time or System
Date using the <Arrow> keys. Enter new values through the keyboard. Press the <Tab>
key or the <Arrow> keys to move between fields. The date must be entered in MM/DD/YY
format. The time is entered in HH:MM:SS format.
⚫ Access Level
Display the access level of current user.
AMI BIOS Setup Utility
CAPA55R Capa Board
43
