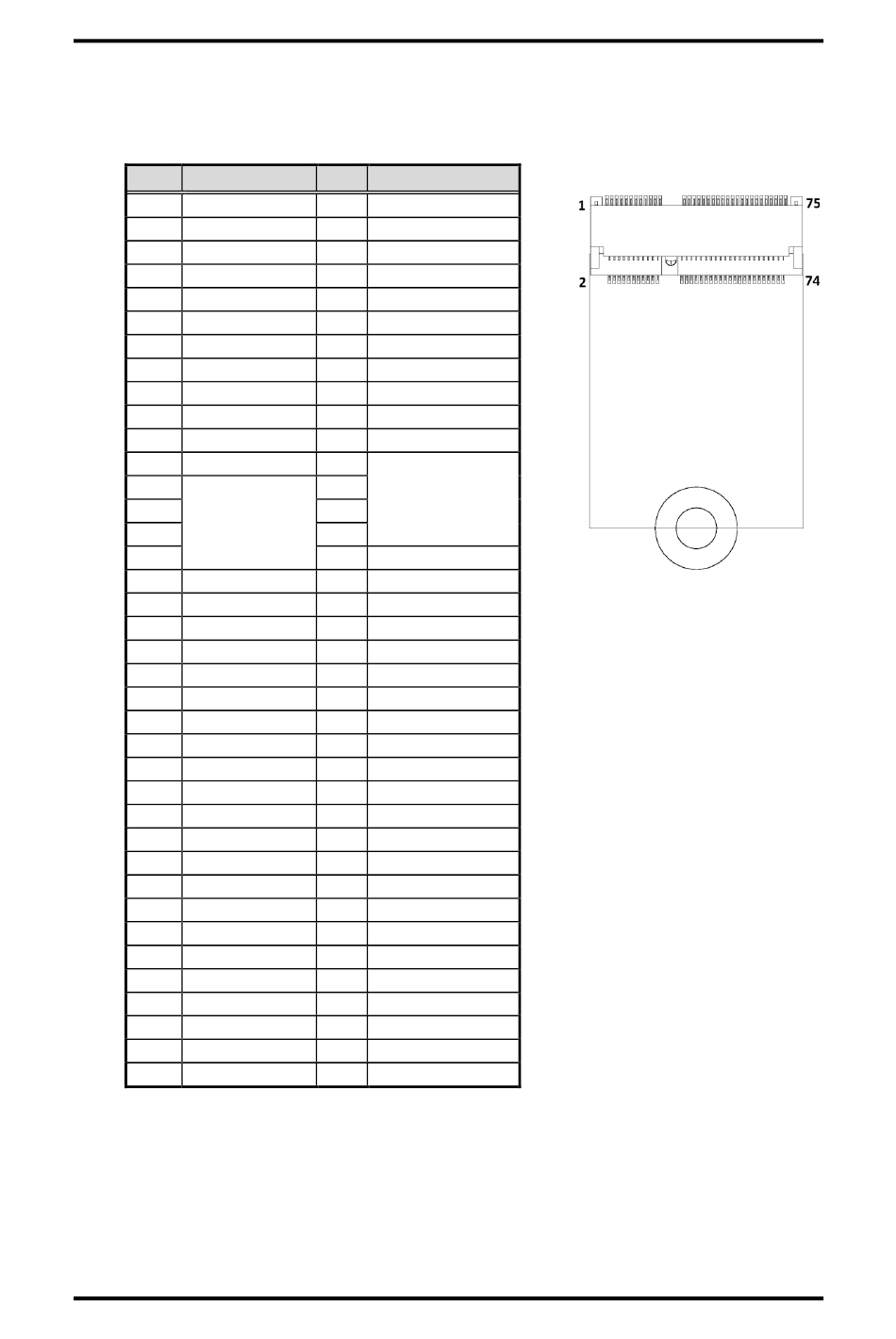

2.6.9 M.2 Key E Connector (CN10)
The CN10 is a M.2 2230 Key E connector. It is suggested to install the M.2 wireless
module via PCIe x1 and USB 2.0 with 22mm width and 30mm length.
Pin Signal
1 GND
3 USB_D9_P
5 USB_D9_N
7 GND
9 NC
11 NC
13 NC
15 NC
17 NC
19 NC
21 NC
23 NC
25
27
Key E
29
31
33 GND
35 PCIE_TX_P
37 PCIE_TX_N
39 GND
41 PCIE_RX_P
43 PCIE_RX_N
45 GND
47 PCIE_CLK_P
49 PCIE_CLK_N
51 GND
53 CLK_REQ2
55 PEWAKE0#
57 GND
59 NC
61 NC
63 GND
65 NC
67 NC
69 GND
71 NC
73 NC
75 GND
Board and Pin Assignments
Pin Signal
2 +3.3V_SBY
4 +3.3V_SBY
6 NC
8 NC
10 NC
12 NC
14 NC
16 NC
18 GND
20 NC
22 NC
24
26
Key E
28
30
32 NC
34 NC
36 NC
38 NC
40 NC
42 NC
44 NC
46 NC
48 NC
50 NC
52 PERST#(+3.3V)
54 W_DIS2#(+3.3V)
56 W_DI12#(+3.3V)
58 NC
60 NC
62 NC
64 NC
66 NC
68 NC
70 NC
72 +3.3V_SBY
74 +3.3V_SBY
CAPA55R Capa Board
23
