SBC81205 Core™ 2 Quad SBC User's Manual
C h a p t e r 1
Introduction

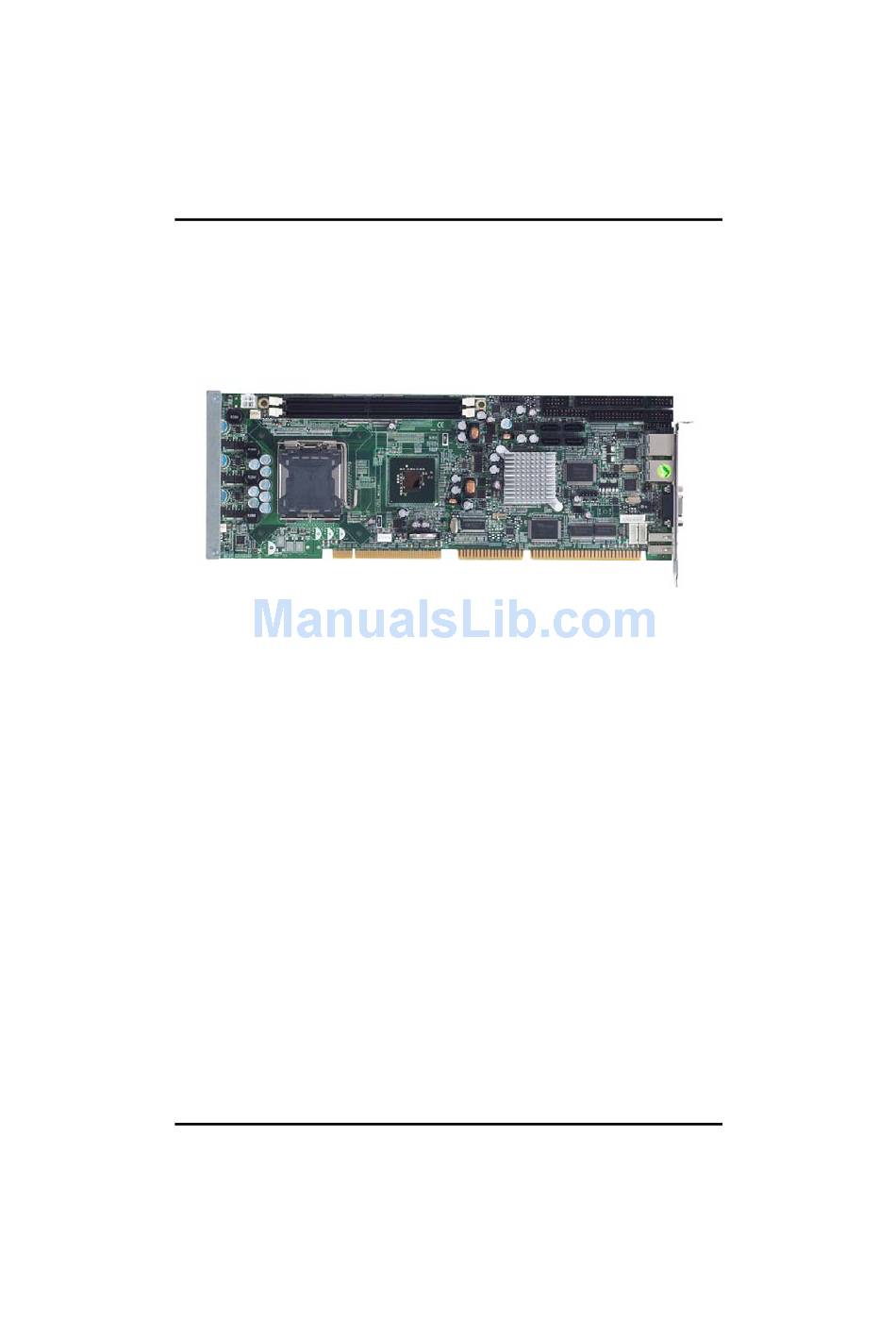

The SBC81205 PICMG 1.0 full-size Single Board Computer supports
® TM ®
TM
Intel Core 2 Quad, Core 2 Duoand Celeron processors, at FSB
®
800/1066/1333 MHz. The board integrates chipsets Intel Q35 and
ICH9 that deliver outstanding system performance through high-
bandwidth interfaces, multiple I/O functions for interactive applications
and various embedded computing solutions. There are two DDR2
DIMM sockets for dual channel DDR2-667/800, maximum memory
capacity up to 4GB. The board also features dual gigabit Ethernet,
four serial ATA channels for four serial ATA hard drives at maximum
transfer rate up to 3 Gb/sec, six USB 2.0 high speed compliant that
can achieve the best stability and reliability for industrial applications.
Introduction
1
