CAPA55R Capa Board
⚫

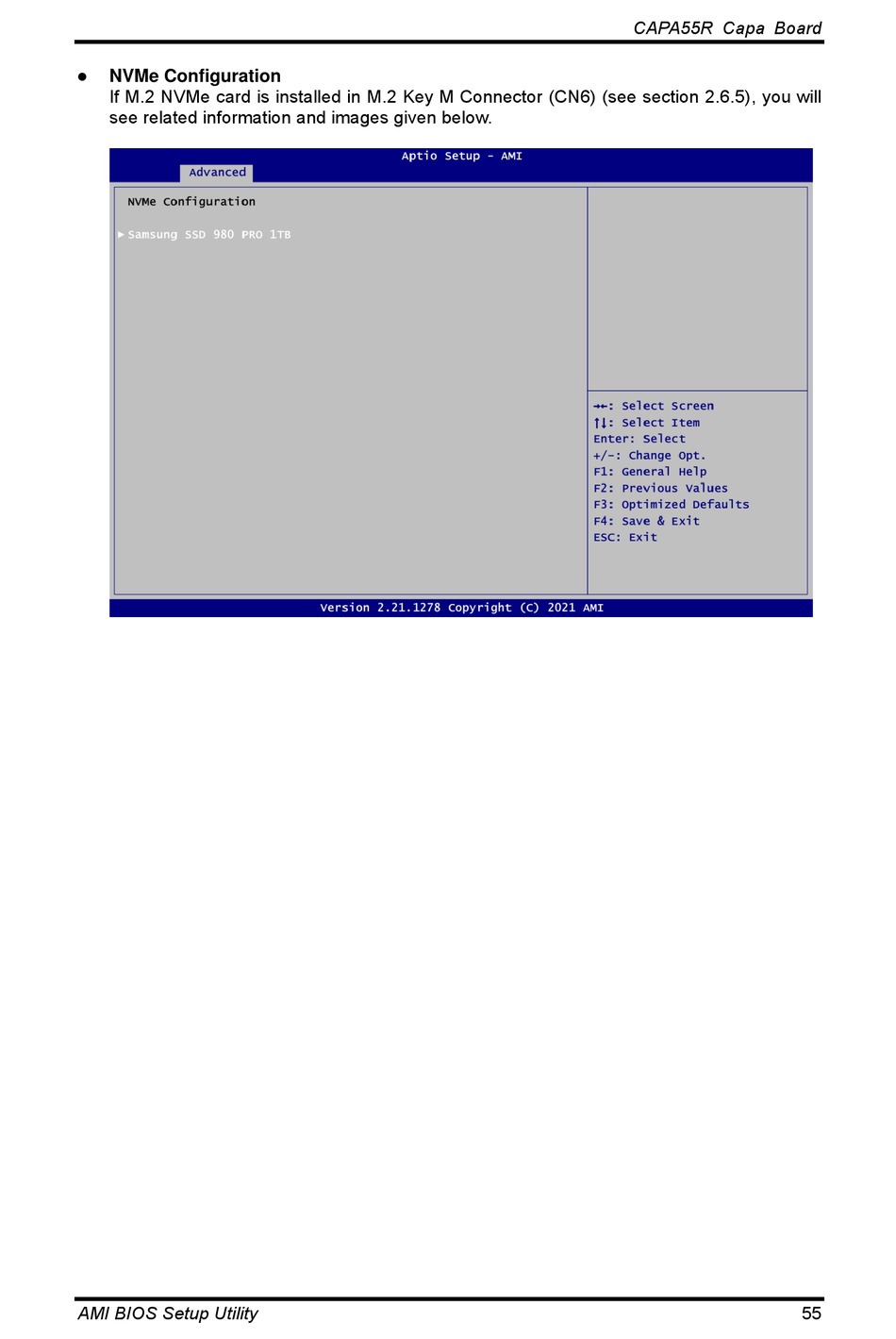

NVMe Configuration
If M.2 NVMe card is installed in M.2 Key M Connector (CN6) (see section 2.6.5), you will
see related information and images given below.
AMI BIOS Setup Utility
55
