CAPA55R Capa Board
2.6.21

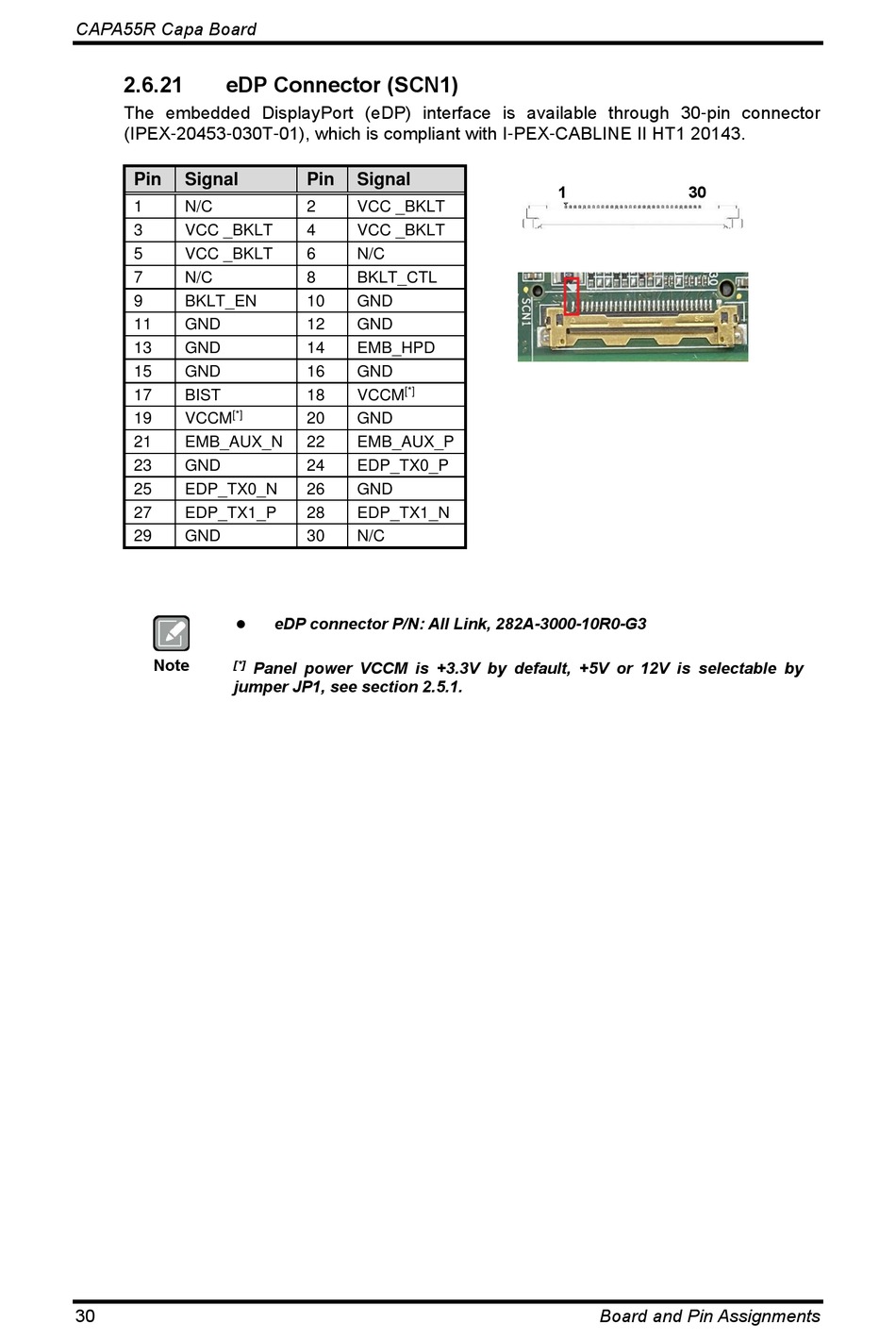

eDP Connector (SCN1)

The embedded DisplayPort (eDP) interface is available through 30-pin connector
(IPEX-20453-030T-01), which is compliant with I-PEX-CABLINE II HT1 20143.
Pin Signal
1 N/C
3 VCC _BKLT
5 VCC _BKLT
7 N/C
9 BKLT_EN
11 GND
13 GND
15 GND
17 BIST
[*]
19 VCCM
21 EMB_AUX_N
23 GND
25 EDP_TX0_N
27 EDP_TX1_P
29 GND
⚫
Note
[*]
jumper JP1, see section 2.5.1.
30
Pin Signal
2 VCC _BKLT
4 VCC _BKLT
6 N/C
8 BKLT_CTL
10 GND
12 GND
14 EMB_HPD
16 GND
[*]
18 VCCM
20 GND
22 EMB_AUX_P
24 EDP_TX0_P
26 GND
28 EDP_TX1_N
30 N/C
eDP connector P/N: All Link, 282A-3000-10R0-G3
Panel power VCCM is +3.3V by default, +5V or 12V is selectable by
1 30
Board and Pin Assignments
