Boot Menu - AXIOMTEK CAPA55R User Manual

CAPA55R Capa Board
4.7

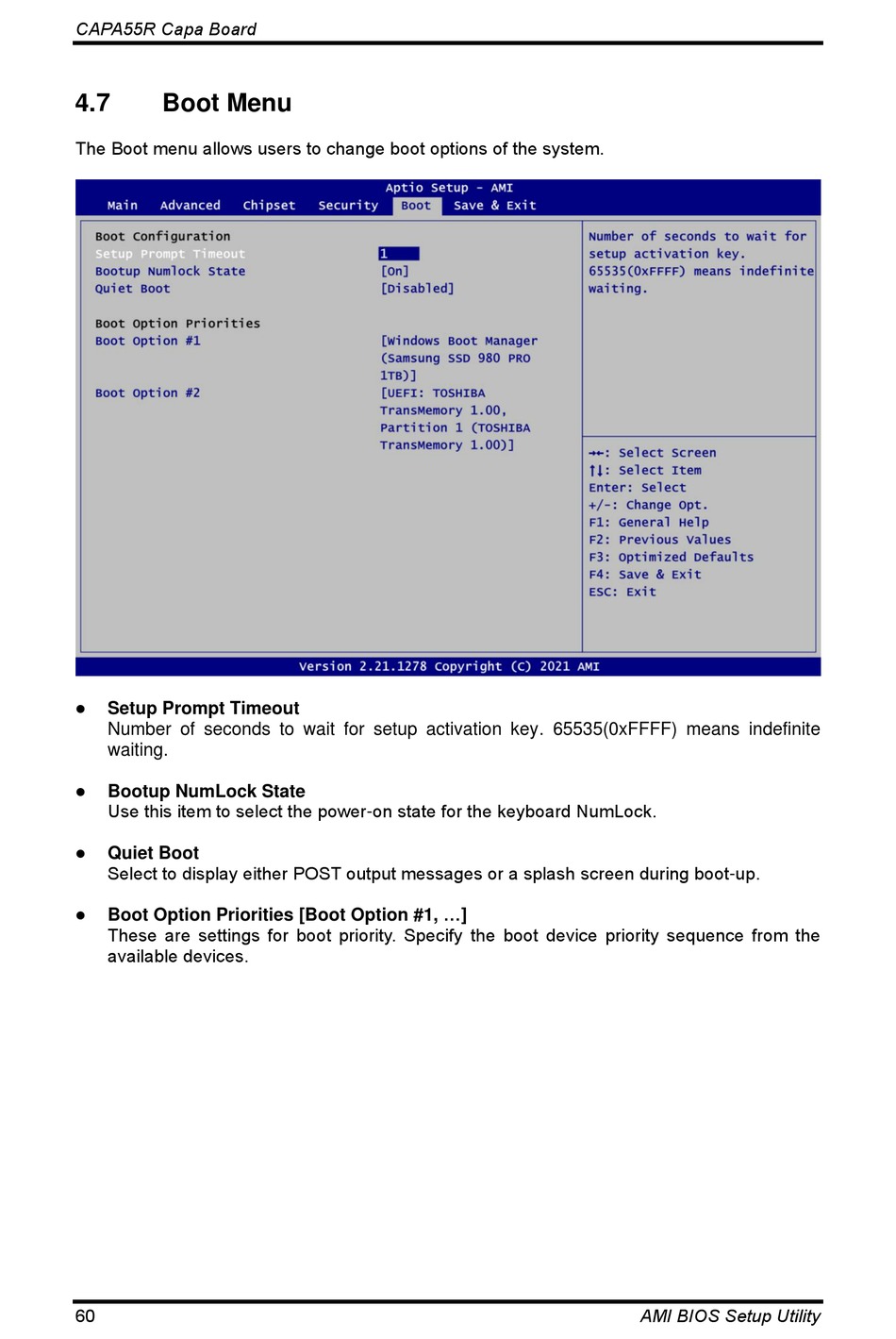

Boot Menu

The Boot menu allows users to change boot options of the system.
⚫ Setup Prompt Timeout
Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite
waiting.
⚫ Bootup NumLock State
Use this item to select the power-on state for the keyboard NumLock.
⚫ Quiet Boot
Select to display either POST output messages or a splash screen during boot-up.
Boot Option Priorities [Boot Option #1, ...]
⚫
These are settings for boot priority. Specify the boot device priority sequence from the
available devices.
60 AMI BIOS Setup Utility
